High Resolution 28 Plates Per Hour Thermal CTP Machine

High Resolution 28 Plates Per Hour Thermal CTP Machine
Features Gallery Product Description Request A Quote
Image Laser Diodes: 64CH
Resolution: 2400dpi,1200dpi Optional
Output Speed: 28 Plates Per Hour
Max.Plate Size: 1163*940mm
Plate Thickness: 0.15-0.40mm
Condition: New
High Light:

high resolution ctp equipment


thermal ctp plate making machine


28 plates per hour thermal ctp machine

Basic Infomation
Place of Origin: CHINA
Certification: CE
Model Number: T800FA
Payment & Shipping Terms
Packaging Details: Standard Exporting Packing with Plywood Case
Delivery Time: 20DAYS
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Product Description

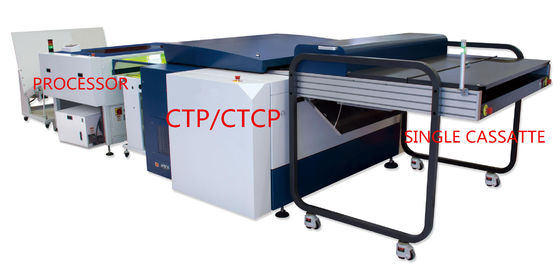

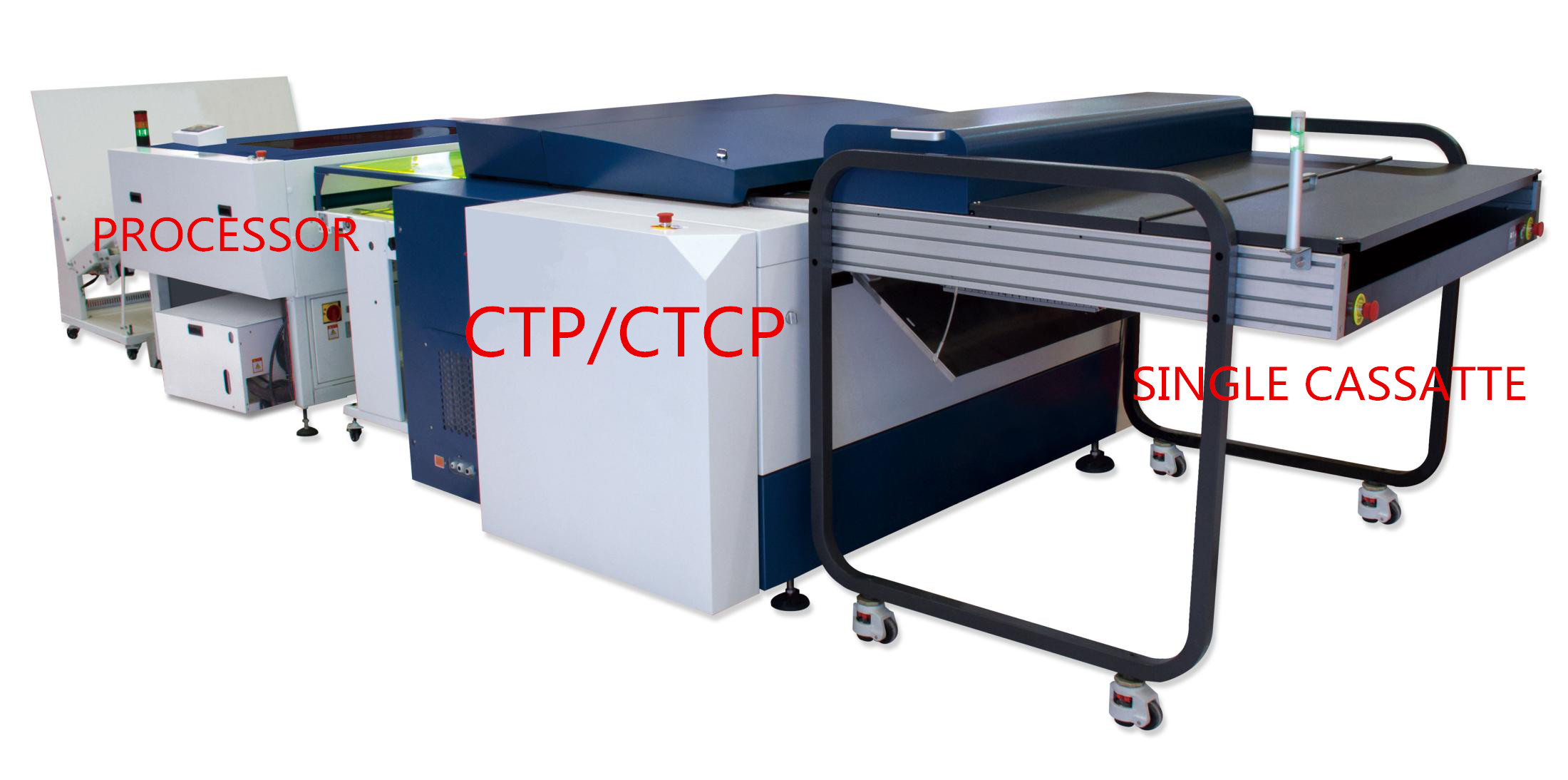

Thermal CTP Offset Printing Plate Making Machine Computer To Plate ​
for prepress commercial or newspaper printing

1. Specification
Model:EcooSetter T-800FA Automatic CTP
Laser wavelength: 830nm
Plate: 830nm thermal plate
Exposing Method: External Drum
Imaging System:64-channel
Throughput: 28 plates per hour, 1030mmx800mm 2400dpi
Plate Size: Max. 1163x940mm min. 400x300mm
Plate Thickness:0.15mm to 0.3mm
Resolutions:2,400dpi, 1200dpi optional
Repeatability:±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Power Supply:single-phase: 220AC+6%,-10%;Power Consumption:4KW
Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%
Model UV-800XA UV-800FA UV-800SA UV-800EA T-800XA T-800FA T-800SA/EA
Exposing Mothod External Drum
Imaging System 128-channel 64-channel 48-channel 32-channel 256-channel 64-channel 48/32-channel
  Discrete 400-410nm laser diode Discrete 830nm laser diode
Throughput 44PPH 28PPH 22PPH 16PPH 40PPH 28PPH 22/16PPH
  1030mm x 800mm, 2400dpi
Plate Sizes Max.1163mm x 940mm
Min.400mm x 300mm(300mmx250mm is available)
Exposing Size Max.1130mm x 884mm
Media Type positive UV-CTP plate ,high-sensitive PS plate positive thermal CTP plate
Plate Thickness 0.14mm to 0.30mm
Resolution 2400dpi , 1200dpi optional
Repeatablity ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface USB 2.0
Plate Loading semi automatic
Net Weight 1200kg
Machine Size
Power Supply single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Operation Environment recommended:21-25ºC, Max.18-26ºC, humidity:40-70%


Our Factory

High Resolution 28 Plates Per Hour Thermal CTP Machine 0


Our Partners and Customers

High Resolution 28 Plates Per Hour Thermal CTP Machine 1


1. What are your main products ?


  EcooGraphix is a leading and professional supplier for the Offset Prepress solution, and  can  also supply the Printing Materials and  Postpress  Packing Equipment with reliable quality and good price.


 Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
 Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.

  If the customer uses Ecoographix CTP plate with the CTP machine, we will provide the Lifetime Warranty and technical support!

4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.
6. What about the Installation and after-sales technical support?
  Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
