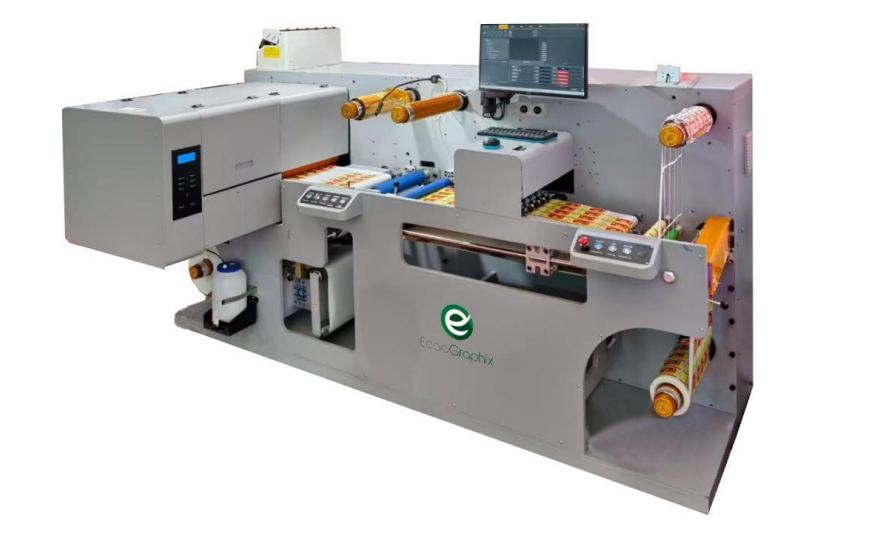

Ecoo Q-330 Label Printing and Cutting Integrated Machine

Model:Ecoo Q-330 Label Printing and Cutting Integrated Machine

►Introduction

Ecoo Label Q-330 printing and cutting Intergrated Machine is an all-in-one UV scan type printer with in-line cutting machine. It offers high-precision printing via scanning, with high color fidelity and robust industrial grade design. Ecoo Label Q-330 can print CMYK, white inks and varnish on paper, adhesive materials, and flexible packaging plastic films. It also integrates downstream processes like stamping, die-cutting, laminating, and slitting. This makes it a cost effective one stand solution for printing cards, small-batch production, and custom labels.

►Printing unit:

Equipped with 4 EPSON I3200-U1 print-heads. it enables high-speed printing of four colors plus white and gloss varnish, enhancing label texture and visual appeal.It handles both small and large orders with ease.

►Buffer

The buffer stores label design data in real time and auto compensates for speed differences between printing and cutting, preventing film stretching, deformation, or wrinkle formation.

►Cutting Unit

The cutting unit uses servo motors controlled pressure, eliminating manual adjustment. Reducing downtime.and boosting production efficiency.

►Automatically control

Self-developed interface enables color, speed, and data base integration, making the entire process easy to learn and operate.

►Packing details

Box dimension: 1700*1150*1570mm

Box weight Approx.: 520kgs

Box materials: Wooden

►Technical Data

►Features

1 Integrated Versatility: One Machine, lnfinite Possibilities. Ecoo Label Q-330 combines printing, laminating, cutting, and slitting in one device, simplifying and enhancing your production process.

2 Excellent Printing Performance: Whether it's white, varnish, or colored UV inks, the Ecoo Label Q-330 provides excellent printing effects on various media, making your labels stand out on the shelf.

3 High precision cutting: With ball screws and independent servo motors, it achieves +/-0.1mm cutting accuracy for flawless labels.

4 Wide Range of Applications: From food packaging to electronic product identification, from cosmetic labels to industrial data encoding, the Ecoo Label Q-330 can easily handle it all.
