Wide Format A0 Size Offset Printing CTP Plate machine Factory
1. Application
Wide format CTP bridges the gap between digital design and traditional large-scale offset printing, making it economical to produce high-quality, large-format materials efficiently.

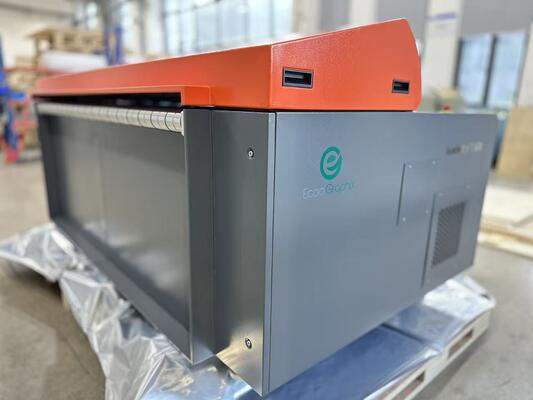

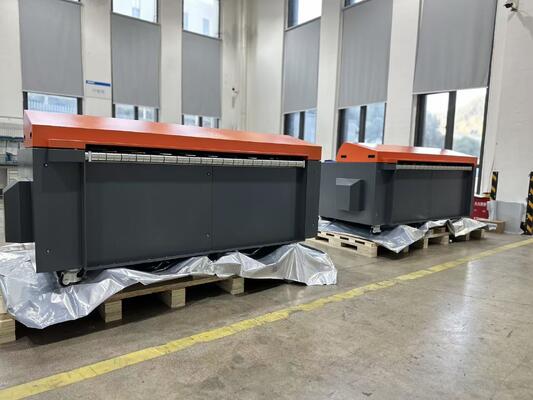

EcooGraphix VLF(Very Large Format) Thermal CTP Machine T1600S can be used for A0,B0 paper size Posters or Wall-charts , Large Books, catalogue, yellow pages, packaging processing and plate-making center etc. , with the output speed 14 -19 plates per hour.
Firstly , the printing design files are made on computer by the RIP and Workflow software, and then the files are sent to the CTP . The file images are scanned by the lasers (830nm thermal laser or 405nm UV laser) to the aluminum CTP plates. The laser scanning hardens the photosensitive coating on the CTP plate.
Then the CTP plate goes through the CTP processor, the developer chemical is inside the CTP processor, to wash out the non imaging area of the CTP plate. The CTP plate will be quickly dried in the CTP processor after washing .
Finally the CTP plates are put on the offset press machine , for printing jobs.
2. Main features:
Maximum Plate Size: 1,680×1350mm
Features: Less manpower, high stability and perfect output quality.
UV plate and thermal plate are available for you to lower production cost.
Automatic plate loading and unloading can improve your plate-making efficiency.
Combined with autoloader, processor and stacker, EcooGraphix VLF CTP series can achieve full-automatic printing.
Only one operator is needed to finish the whole output process.
3.Application and Sample:
4. Technical Specifications:
| Model |
T-1600QM |
| Exposing Method |
External Drum |
| Image System |
825nm laser |
|
Output Speed
|
22 plates/hour |
| |
1630mm x 1325mm / 2400dpi |
| Plate Sizes |
Max.1680mm x1350mm;
Min. 650mm x 550mm |
| Exposing Size |
Max. 1680mm x 1336mm |
| Media Type |
Positive/Negative Thermal CTP Plate or Non Chemical Plate |
| Plate Thickness |
0.15mm to 0.30mm or 0
27mm t
0.40mm(alternative)
|
| Resolution |
Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi and 1270dpi. Variable high resolution option: maximum up to 10800dpi at fast scan direction. 12800DPI is available upon requirement |
| Repeatability |
±0.01mm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%) |
| Interface |
Optical Fiber |
| Plate Loading |
semi automatic(alternative autoloader system) |
| Net Weight |
1800kg |
Machine Size
(WxLxH)mm |
2400x1430x1110 |
| Power Supply |
3 phase 380V, power Consumption(peak value):5.5KW |
|
Operation Env
ronment
|
recommended temperature:21-25℃;allowed temperature :15-30℃, humidity:<70%RH |
| Model |
T-1600S T1600SX |
| Exposing Method |
External Drum |
| Imaging System |
64-channel |
256-channel |
| Discrete 830nm laser diode |
| Output Speed |
16plates/hour |
25 plates/hour |
| |
1470mm x 1180mm / 2400dpi |
| Plate Sizes |
Max.1470mm x1180mm; Min. 400mm x 400mm |
| Media Type |
Thermal CTP plate |
| Plate Thickness |
0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative) |
| Resolution |
2400dpi,1200dpi optional: dual resolutions 2,400dpi and 1,
Standard: dual resolutions 2,400dpi and 1,200dpi, or 2,540dpi and 1,270dpi (Option)
Variable high resolution option: maximum up to 10,000dpi at fast scan direction
|
| Repeatability |
0.01mm (continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%) |
| Interface |
USB 2.0 or USB3.0(USB2.0 is recommended) |
Optical Fiber ( Fiber Way ) |
| Plate Loading |
Manual or automatic with autoloader |
| Net Weight |
1400kg |
| Machine Size |
2,355×1,910×1,217 mm ( L×W×H ) |
| Power Supply |
Single phase: 220V, Max power (Peak value): 5.5KW |
| Operation Environment |
recommended temperature:21-25℃;allowed temperature :15-30℃, humidity:<70%RH |
