Name: 330mm Digital Label Printing Machine 60m/min Speed 1440dpi Resolution
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: DigiSpark
Price: 250,000.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Resolution: 360*360 Dpi Up To 1440*360dpi

Printing Speed: 10m/min - 60m/min

Variable Image System: PDF,Optional Barcode System

Substrates: Coated Paper,Washi Tape,PP,PET,transparent Film

Warranty: One Year

Weight: 2800KGS

Highlight:

330mm digital label printer

high-speed label printing machine 60m/min

1440dpi resolution label printer

Basic Infomation

Place of Origin: CHINA

Brand Name: ECOOGRAPHIX

Certification: CE

Model Number: DigiSpark

Document: Digital Label Cold Stamping...88.pdf

Payment & Shipping Terms

Packaging Details: standard export packing

Delivery Time: about 20days

Payment Terms: L/C,T/T

Supply Ability: 100SET

Gallery

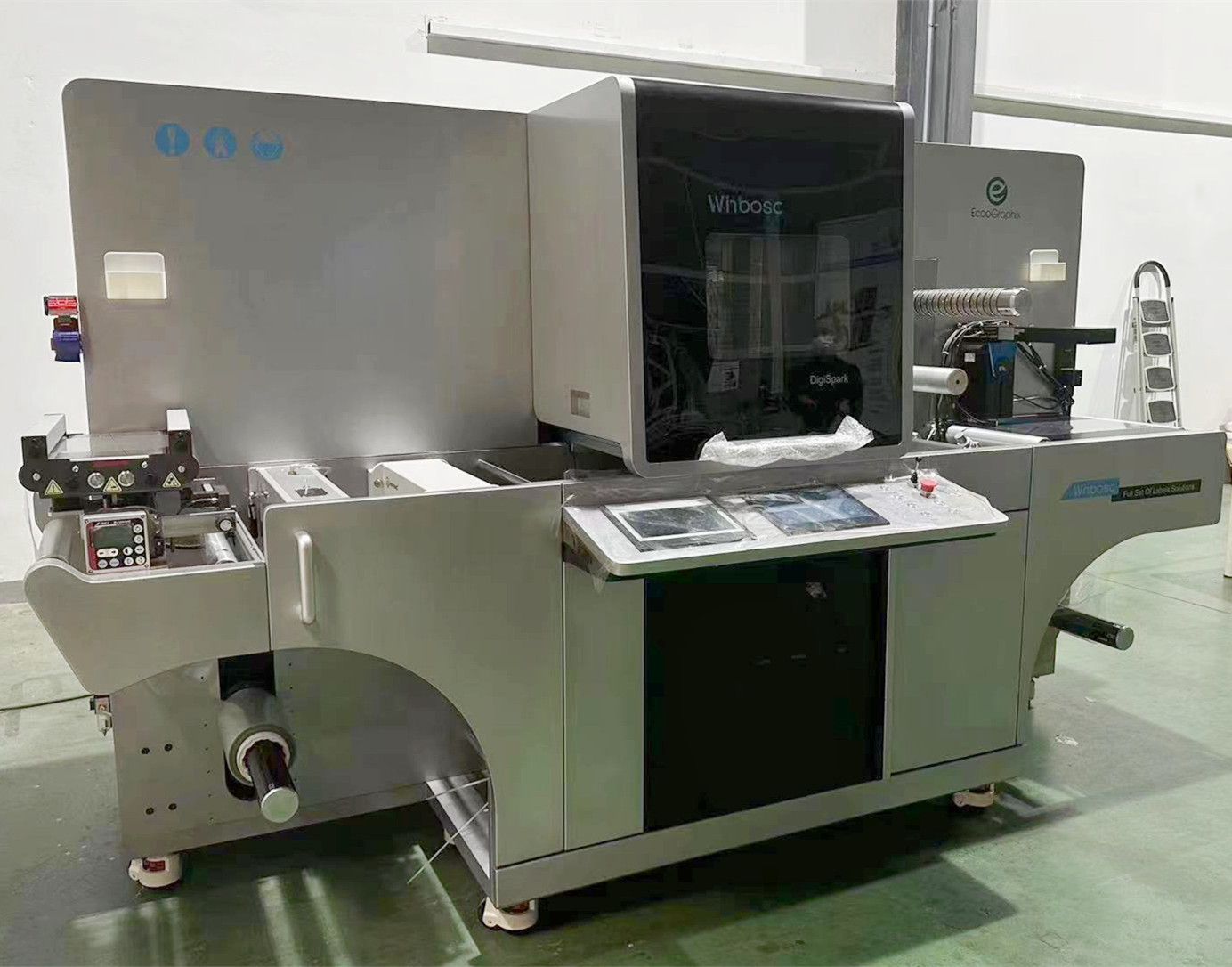

330mm Digital Label Printing Machine 60m/min Speed 1440dpi Resolution

Product Description

330mm Digital Label Sticker Braille Printing Foil Stamping Machine

EcooGraphix's newly developed DigiSpark digital printing machine enables digital synergistic processes including digital varnishing, 3D crystal bright, partial glazing, cold foil stamping, embossing, and braille printing — all without plate making requirements. This innovative solution reduces costs while instantly creating unique visual printing effects.

Applications: Wine Labels, Cosmetic Labels, Luxury labels, Washi tapes, and more.

Innovation and Intelligent Manufacturing

As the label printing market evolves with shorter run lengths, rising media costs, and shrinking margins, EcooGraphix & Winbosc bridges the gap between brand owners and label printers with on-demand printing capabilities.

Utilizing PiezoDOD inkjet print head technology, this press delivers high-quality labels at 600×600 DPI native resolution, speeds up to 70m/min, and print widths up to 330mm. The system offers the lowest total cost of ownership and fastest return on investment in the industry.

The digital press excels in short to medium runs while enabling personalization, variable data, and security printing in real-time production.

UV Inkjet Printing Press Advantages

Initial proofing with instant response
Eliminates reprographics and plate costs
Reduces SKUs for brand owners and inventory for printers
Enables quick versioning of repeat jobs with minimal wastage
Field-upgradable with significant operational savings
No click charges — pay only for actual usage
UV inks offer high durability and chemical/moisture resistance
Prints on standard Flexo materials, often without pre-treatment
Full variable data printing capability

Technical Specifications

Model	DigiSpark
Printing Technology	UV Piezo DoD-inkjet
Resolution	Up to 1440×360 dpi
Printing Speed	10m/min - 60m/min (depends on polymer layer thickness)
Variable Image System	PDF, optimized PDF, Optional barcode system
Supported Image Standards	PDF, PDF/VT, TIFF, JPEG, BMP & other database files
Substrates	Offset, Digital, Plastics, Laminated and coated substrates
Printing Image Width	288mm (extendable to 320mm)
Polymer	WB-DS-Clear Polymer
Polymer Layer Thickness	10-180 microns
Ink Curing	Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder Diameter	Max. 700mm, Core 76mm
Rewinder Diameter	Max. 700mm, Core 76mm
Substrates Thickness	30-400 microns
Substrates Width	330mm
Press with Foil Station Dimensions (L×H×W)	3500mm × 1900mm × 1800mm
Operating Environment	Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity
Electrical Requirements	Voltage: 3×380, ±5% 3 phases +G+N Frequency: 50/60 Hz Current: Avg. 25 Amps in Production
Weight	2800kg
