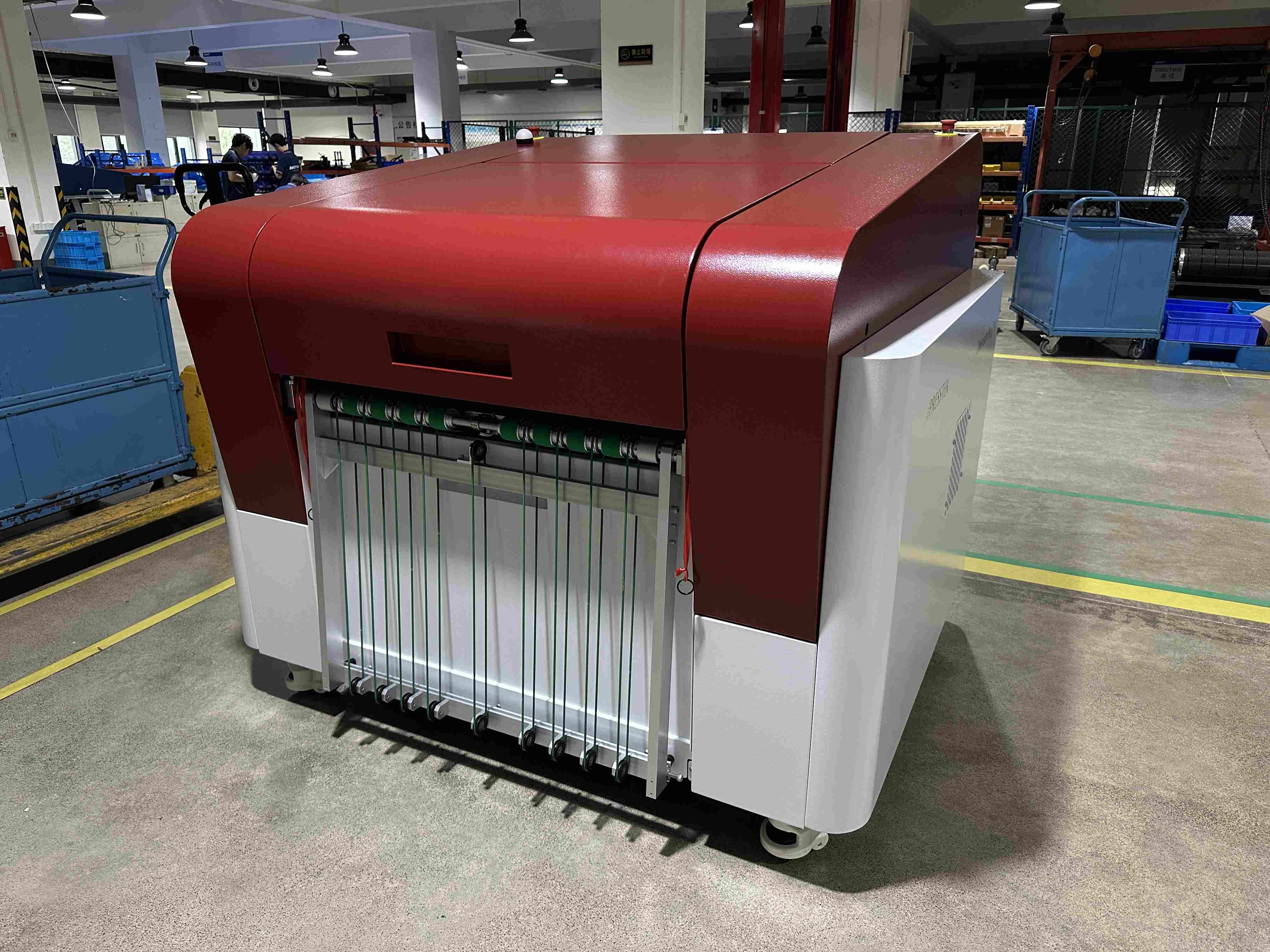

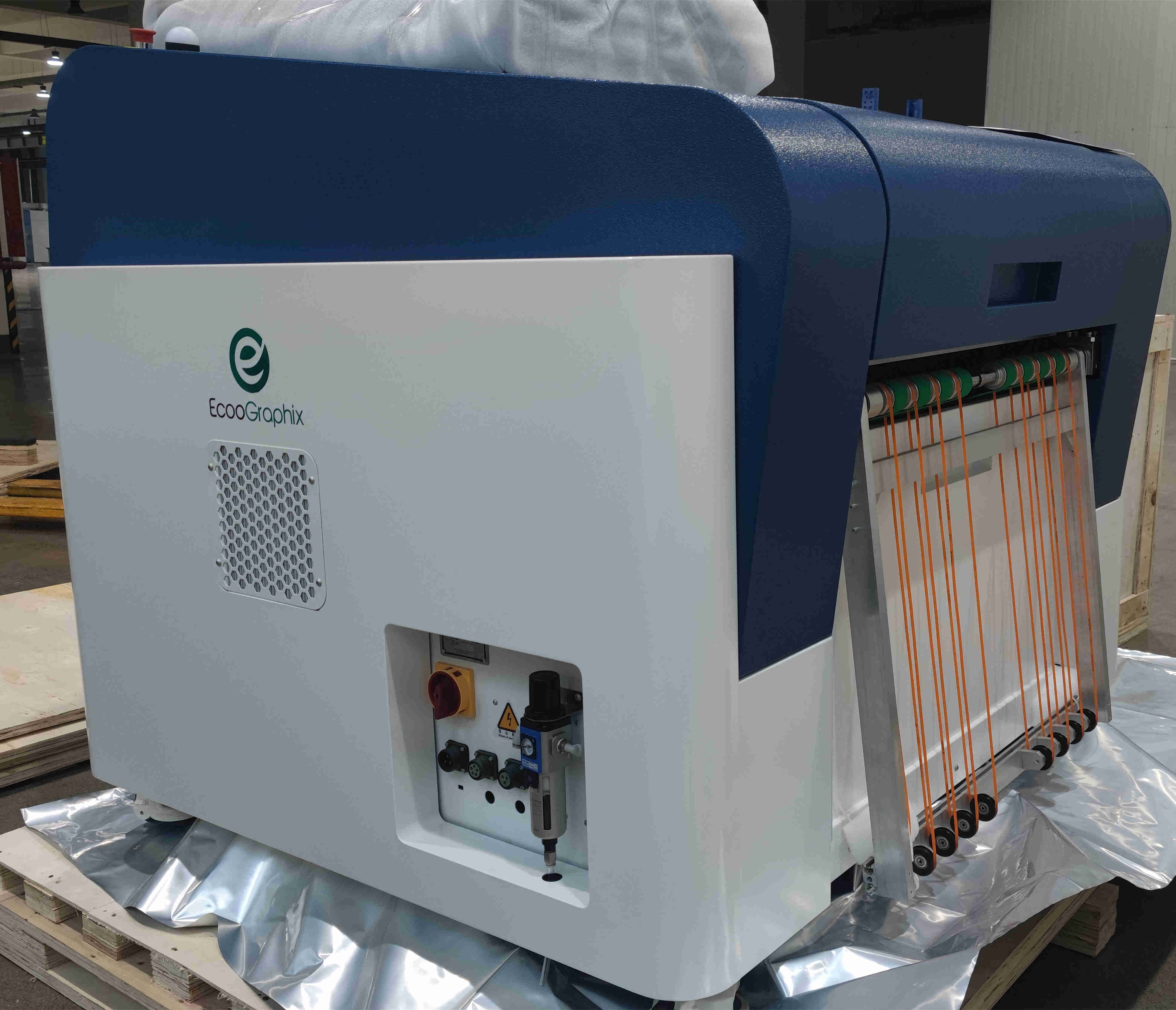

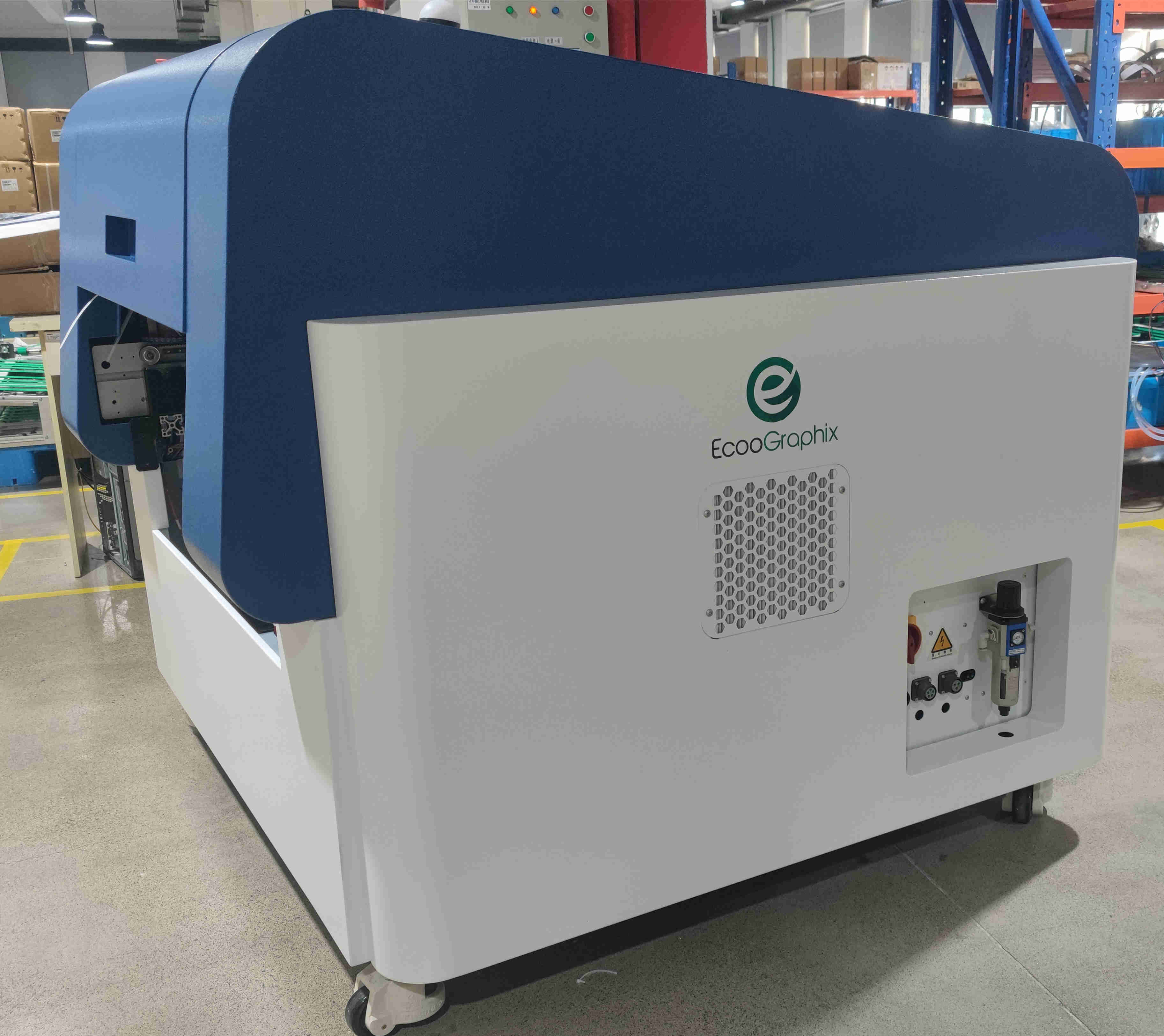

Factory 55PPH 256CH Laser Channels Thermal CTP Plate Machine with 1163x940mm Max Plate Size

Specification

Prodution Model

EcooSetter T-800QE Offline Easy to Use Thermal CTP

Laser wavelength

830nm

Plate

Postive Thermal CTP Plate

Exposing Method

External Drum

Imaging System

256-channel

Throughput

48 plates per hour, 1030mmx800mm 2400dpi

Plate Size

Max. 1163x940mm min. 300x400mm

Plate Thickness

0.15mm to 0.3mm

Resolutions

2,400dpi

Repeatability

±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)

Interface

USB2.0

Weight

900KG

Size

2530×1050×950mm(W×D×H)

Power Supply

Single-phase: 220AC+6%,-10%;Power Consumption:4KW

Environment

recommended: 21-25ºC,max.18-26ºC,humidity:40-70%

Application

EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.

By the EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.

EcooGraphix T800series thermal CTP are for A1 or B1 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual,very easy to use.

Features

• Adopt 256-channel laser light valve;
• The publishing speed of folio version reaches 38-48 sheets per hour (1,030×800 mm, plate sensitivity 100mJ/cm²);
• Using square light spot imaging, the color saturation is increased by 21%, and the delicate accuracy is increased by 10 times;
• Linear motors provide high-precision positioning and long service life, reducing customer operation and maintenance costs.

Other Similar Models:

Machine Technology:

1. Superior dot quality reproduction proven by worldwide market: 1%-99% dot reproduction Up to 300lpi screening ,2400 dpi or 2540dpi optional
2. Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany.
3. Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
4. Long warranty of the machine: 3 years warranty (free replacement of all parts) Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.
5. Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.
6. Proven Worldwide market leader: (Some highlights installations) Over 6000 units installed worldwide over past 10 years USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer. Turkey: 35 units installed in Turkey by Esen Graphics Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc.

Our Factory

FAQ

Q:What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP, Flexo CTP , Processor , Offset Plates ,Offset Inks , Offset printing blankets , Postpress Packing equipment and so on. You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q:Is there any certification for your CTP machine?

A:Yes, All our CTP machines have been certified by SGS and CE

Q:Can you also supply the Workflow and RIP?

A:Yes, we can provide the Workflow Brain New and RIP Compose V13.

Q: Where is your factory?

A: Our factory is in Hangzhou city, about 1hour by train from Shanghai.

Q:What is the production time ?

A: Usually 20days, a little longer for customized model.

Q: What is the warranty time for the machine?

A: 3years’warranty for CTP machine. If customer use EcooGraphix CTP plate, all the CTP parts will be guaranteed for lifetime with no service charge.
