Full-Color 80-330mm Wide Inkjet Digital Label Printing Machine

1SET
MOQ
Negotiable
Price
Full-Color 80-330mm Wide Inkjet Digital Label Printing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Printing Technology: Inkjet Digital Label Printing Machine
Print Method: Roll To Roll, One Side
Roll To Roll, One Side: 600*600 Dpi/600*1200 Dpi
Color Configuration: CMYK/W+CMYK/W+W+CMYK
Maximum Speed: 50m/min(600dpix600dpi); 25m/min(600d*1200dpi)
Ink Type: UV Ink
Curing Method: UV LED
Maximum Print Width: 216/324 Mm
Maximum Media Roll Diameter: ​600mm
Power Supply: 380V
Highlight:

80-330mm Digital Label Printing Machine

,

Full-Color Digital Label Printing Machine

,

Wide Digital Label Printing Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: Ecoo-Label Smart
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Payment Terms: L/C, T/T
Supply Ability: 100 sets/year
Product Description



Full-Color 80-330mm Wide Inkjet Digital Label Printing Machine

Model: Label Smart

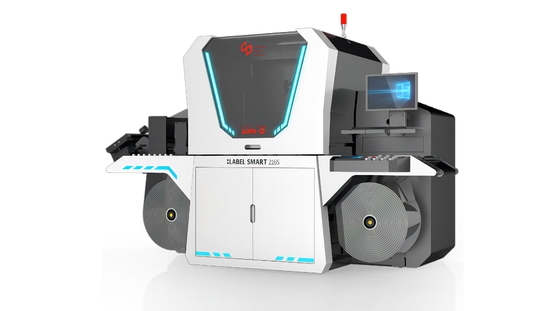

Full-Color 80-330mm Wide Inkjet Digital Label Printing Machine 0



Brief Introduction:



Lable Smart makes single-piece printing possible. An intelligent production system can be set up to realize zero inventory, agile production and point-to-point logistics, and build a new IoT production model.The stable and colorful quality meets the requirements of the digital printing market.




Key Benefits




-Highly flexible feeding system,suitable for all materials for 80-330mm wide label printing
-Imported high-precision industrial print head has higher fire ignition frequency and service life.
-The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration.
-Broad color gamut UV ink, vivid colors, with the Agfa color management system, can accurately restore the Pantone database colors.
-Resolution up to 600 X 1200 dpi.
-The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability.
-Automatic winding and unwinding system can effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.
-Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.
-LED cold light curing unit, energy saving and high efficiency.






  Specification




Model Label Smart 216S Label Smart 330S
Techical Specification
Printing Technology Piezoelectric Inkjet
Print Method

Roll to Roll,One -Side

Color Configuration CMYK/W+CMYK/W+W+CMYK
Number Of Channels 6
Maximum Speed 50m/min(600dpix600dpi);25m/min(600dpi×1200dpi)
Resolutior 600×600 dpi/600×1200 dp
Ink Type UV Ink
Curing Method UV LED
Media
Media Width 80-330 mm
Maximum Print Width 216 mm 324mm
Media Thickness 50-400 μm
Media Type    PET,BOPP,PE,BOPA PP,Coated paper,Synthetic paper,Art paper,etc
   Maximum Media Roll Diameter    600 mm
Power
Power Supply 380V
Power 15 kW 30 kw
Compressed air >6.5MPa
Air consumption >10L/min
Environment
0peration Temperature 20-27°ºC
Operation Humidity 40-70%RH
System Components
Skew Adjustment System
Electrostatic Dust Removal
Water Cooling System

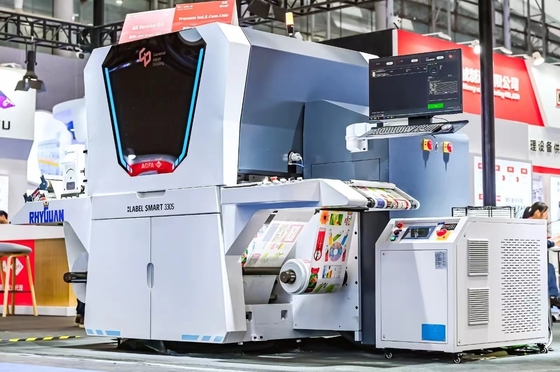

Full-Color 80-330mm Wide Inkjet Digital Label Printing Machine 1

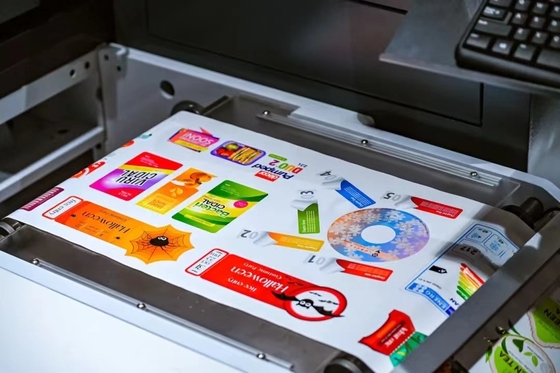

Label Samples




Full-Color 80-330mm Wide Inkjet Digital Label Printing Machine 2



Full-Color 80-330mm Wide Inkjet Digital Label Printing Machine 3
