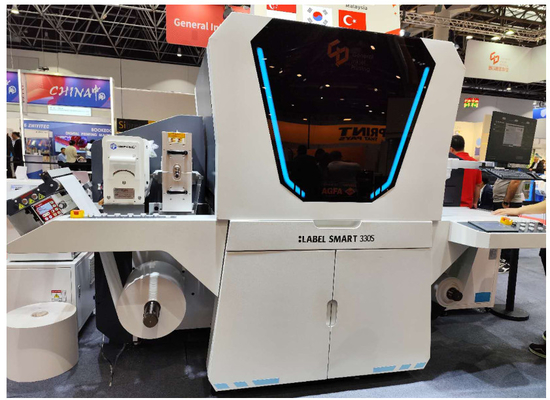

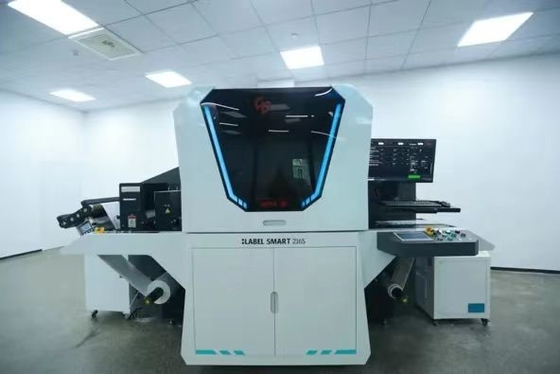

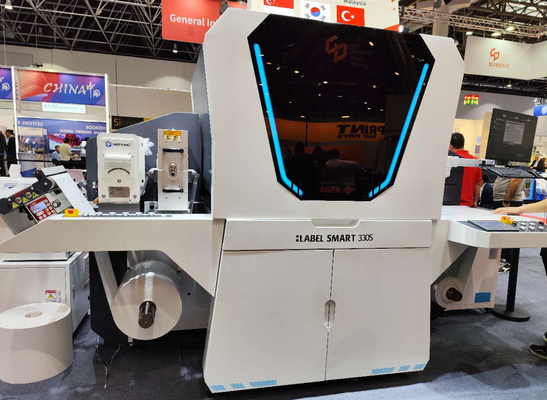

Label Smart UV Inkjet Cmyk Full Color
Digital Label Printing Machine
Brief Introduction
Lable Smart makes single-piece printing possible. An intelligent production system can be set up to realize zero inventory, agile production and point-to-point logistics, and build a new IoT production model.The stable and colorful quality meets the requirements of the digital printing market.
Technical Data
| Model |
Label Smart 108S |
Label Smart 216S |
Label Smart 330S |
| Technical specifications |
| Printing Technology |
Piezoelectric Inkjet |
| Print Method |
Roll to Roll, One - Side |
| Color Configuration |
CMYK/W+CMYK/W+W+CMYK |
| Number Of Channels |
6 |
| Maximum Speed |
50 m/min (CMYK); 25 m/min (CMYK + W) |
| Resolution |
600*600dpi ; 600*1200dpi |
| Ink Type |
UV Ink |
| Curing Method |
UV LED |
| Media |
| Media Width |
80-330mm |
| Maximum Print Width |
108mm |
216mm |
324mm |
| Media Thickness |
50-400 μm |
| Media Type |
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc |
| Maximum Media Roll Diameter |
600mm |
| Power |
| Power Supply |
380V |
| Power |
15kW |
30kW |
| Compressed Air |
| Compressed air |
>6.5MPa |
| Air consumption |
>10L/min |
| Environment |
| Operation Temperature |
20 - 27°C |
| Operation Humidity |
40 - 70% Relative humidity |
| System |
| Skew Adjustment System |
| Electrostatic Dust Removal |
| Water Cooling System |
Features
1. Allowing for small-format digital printing and personalized full-color inkjet coding.
2. High cost-effectiveness and reasonable cost of use.
3. Simple and user-friendly printing operation reduces operating costs and brings in higher profits.
4. High-speed, full-color printing, easily transitions in substrate and workflow which allows maximum advantage in digital label printing.
Key Benefits
1. Highly flexible feeding system, suitable for all materials for 80-330mm wide label printing.
2. Imported high-precision industrial print head has higher fire ignition frequency and service life.
3. The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration.
4. Broad color gamut UV ink, vivid colors, with the Agfa color management system, can accurately restore the Pantone database colors.
5. Resolution up to 600 X 1200 dpi.
6. The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability.
7. Automatic winding and unwinding system can effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.
8. Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.
9. LED cold light curing unit, energy saving and high efficiency.
Packing & Shipping
Certificates
FAQ
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.
3. What is your warranty?
One year for machine and printing head if use our ink. One year for machine only if do not use our ink.
4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge
and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
