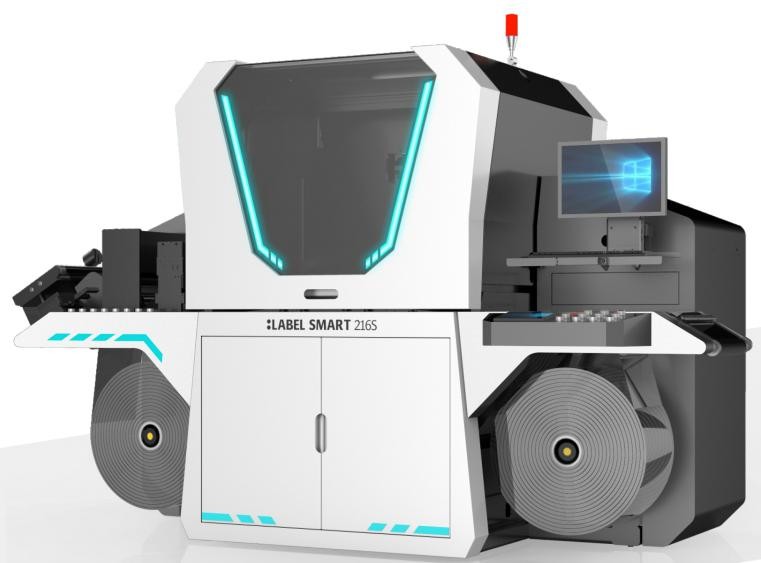

Ecoo Digital Inkjet Printing System Label Smart 216S
Product Description
Allowing for small-format digital printing and personalized full-color inkjet coding.High cost-effectiveness and reasonable cost of use. Simple and user-friendly printing operation reduces operating costs and brings in higher profits. High-speed, full-color printing, easily transitions in substrate and workflow which allows maximum advantage in digital label printing.
Lable Smart makes single-piece printing possible. An intelligent production system can be set up to realize zero inventory, agile production and point-to-point logistics, and build a new IoT production model. The stable and colorful quality meets the requirements of the digital printing market.
Video: https://youtu.be/bYOWKz6ngkU?si=4f4mVCGOeATEYIDt
Product Specification
| Digital Label Printer Machine | |||
| Model | Ecoo Label Modular 216S | ||
| Printing Technology | Piezoelectric Inkjet | ||
| Print Method | Roll to Roll, One -Side | ||
| Color Configuration | Support up to 8 colors | ||
| Number Of Channels | 8 | ||
| Maximum Speed | 50m/min(CMYK); 25 m/min(CMYK+W) | ||
| Resolution | 600x600 dpi/600 x1200 dpi | ||
| Ink Type | UV Ink | ||
| Curing Method | UV LED + Mercury lamp | ||
| Media Width | 80-330mm | ||
| Maximum Print Width | 216mm | ||
| Media Thickness | 50-400um | ||
| Media Type |
PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc |
||
|
Maximum Media Roll Diameter |
700 mm | ||
| Power supply | 380V | ||
| Power | 15 kw | ||
| Compressed air | >6.5MPa | ||
| Air consumption | >10L/min | ||
| Operating environment | Temperature: 20ºC-27ºC, Humidity: 40%-70% relative humidity | ||
| Skew Adjustment System | yes | ||
|
Electrostatic Dust Removal |
yes | ||
| Water Cooling System | yes | ||
| Coating Unit | optional | ||
| Digital Varnishing | optional | ||
| Cold Foil Stamping | optional | ||
| Hot Foil Stamping | optional | ||
| Visual inspection | optional | ||
Key benefits
Highly flexible feeding system,suitable for all materials for 80-330mm wide label printing
Imported high-precision industrial print head has higher fire ignition frequency and service life.
The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration.
Broad color gamut UV ink, vivid colors, with the Agfa color management system, can accurately restore the Pantone database colors.
Resolution up to 600 X 1200 dpi
The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability.
Automatic winding and unwinding system can effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.
Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.
LED cold light curing unit, energy saving and high efficiency.
Quality Control
Professional control department which is responsible for all the machines.
Full checking list including mechanical and electrical detection on the machine.
Strict standards for registration and over 24 hours of non-stop running on each machine.
Follow the policy of 'One person responsible for one machine',' Claim responsibility if the machine has assembled problem'.
Service
All of our technicians have over 10-20 years experience.
Rich experience in installation, repair, and maintenance overseas.
After-sales staff Whatsapp/Wechat online 24/7.
Guarantee to provide after-sales service for any machine for its whole user life.
