Name: ECOO-BL-E Offset Printing Blanket 1.97mm Thickness 76-80 Shore A
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-BL-E
Price: 50.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Thickness: 1.97/1.70 +- 0.02nm

Roughness: 0.9-1.1μm

Hardness: 76-80 Shore A

Compressible Layer: Microspheres

Elongation: ≤ 1.2%

Tensile Strength: ≥ 80

Color: Blue

Blanket Type: Offset Printing Blanket

Highlight:

ECOO-BL-E Offset Printing Rubber Blanket

Compressive Offset Printing Rubber Blanket

Offset Printing Rubber Blanket

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-BL-E

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30 Days

Payment Terms: L/C,T/T

Supply Ability: 300,000 Sqm/Year

Gallery

ECOO-BL-E Offset Printing Blanket 1.97mm Thickness 76-80 Shore A

Product Description

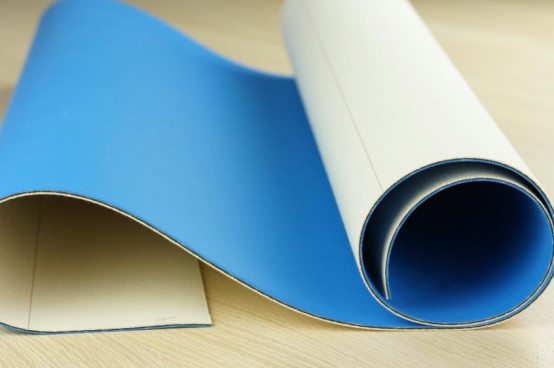

ECOO-BL-E Compressive Offset Printing Rubber Blanket

4Ply Compressive Rubber Printing Blanket for Offset Printing

The EcooGraphix Rubber Blanket is ideal for printing on coated paper, carton boards, and similar materials, producing finished products like cartons, newspapers, and magazines.

Features

Broad applicability, performing well at approximately 9000 prints per hour
Cost-effective, popular option meeting 85% of printing needs
High compression, accommodating various materials and thicknesses
Versatile in carton packaging, suitable for medium-speed printing
Excellent at absorbing mechanical impacts, preventing material wrap-around on the blanket cylinder

Technical Data

Model	ECOO-BL-E
Construction	3 ply
Thickness	1.97/1.70 ± 0.02nm
Color	Blue
Compressible	Microspheres
Surface	Micro-ground and polished
Roughness	0.9 - 1.1μm
Hardness	76 - 80
Elongation	≤ 1.2%
Tensile strength	≥ 80
Application	Strong universality; Prefer package printing; Speed about 9000 prints/hour
Characteristic	Moderate compressible avoids moving the image of the machine and reduces the edge marking; Wide-ranging print; Prefer carton printing and full mold printing

Dimension And Package

We offer blankets in any size in sheet or roll as below. The blankets will be rolled and packed in polymer bags and cartons with enough protective layers. The customer can decide the content of the back side, usually the logo or size.

Structure

The printing blanket normally includes 3 layers as follows:

A: a base non-woven fabric or a spun bonded non-woven fabric layer that is assigned to the printing cylinder
B: a soft, highly resilient void-free compressible intermediate rubber layer that has closed gas pores
C: an outer-lying void-free layer of an elastomeric layer that faces toward the printing material

Aluminum Bar

We can offer a blanket with or without a bar, depending on customers' inquiries.
$5 for each pair of bars.
Please let us know the machine model or bar size if you need a blanket with bars.

Package And Maintenance

Packaging

We offer blankets in any size in sheet or roll as follows.
The blankets will be rolled and packed in polymer bags and cartons with enough protective layers. The customer can decide the content of the back side, usually the logo or size.

Blanket In Roll

Blanket In Sheet

Maintenance

Clean the blanket with fast volatile organic solvents
Clean rolls when ink color changing or refilling
Release the blanket off the cylinder when the printing machine stops for a long time
New blankets should be stored in a dry and cool place covered with a dark layer

From production to delivery, we carefully make every detail to guarantee good product quality and service to customers.

Other Supporting Consumables

Blanket wash
Roller wash
Rolls in any dimension

Certificates

FAQ

Q1: Do you offer free samples? How long is the sample time of the shipping? Does the sample fee can be returned?

A: Since the blanket is high value, we did not offer a free sample. But we can offer a favorable discount. It will take 5 days to prepare the sample. If you place a formal bulk order, we will refund the sample fee and courier cost.

Q2: About the sample what is the cost of transportation?

A: The freight depends on weight, packing size, and your country or province region, etc.

Q3: How long can I expect to get the sample?

A: The sample will be ready for delivery in 3-5 days and will be sent via international express such as DHL, UPS, TNT, and FedEx and will arrive within 3-5 days.

Q4: Where is your factory?

A: Our factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
