Name: 1440*360 Dpi EcooSpark Digital Foil Stamping Label Enhancing Machine
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: EcooSpark
Price: 250,000.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Machine Type: Digital Label Enhancement Machine

Printing Technology: UV Piezo Dod-Inkjet

Resolution: 360*360 Dpi, Up To 1440*360 Dpi

Printing Image Width: 288mm (Extendable To 330 Mm)

Polymer: Wb-Ds-Clear Polymer

Ink Curing: Inter UV-LED Pre-Curing/ Full Curing By UV-LED

Rewinder Diameter: Max. 700mm, Core 76mm

Warranty: 1 Year Including All Parts(except Print Heads)

Highlight:

Label Enhancing Digital Foil Stamping Machine

1440*360 Dpi Label Enhancing Machine

EcooSpark Label Enhancing Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE, Rohs

Model Number: EcooSpark

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 45 Days

Payment Terms: L/C, T/T

Supply Ability: 500 Sets/Year

Gallery

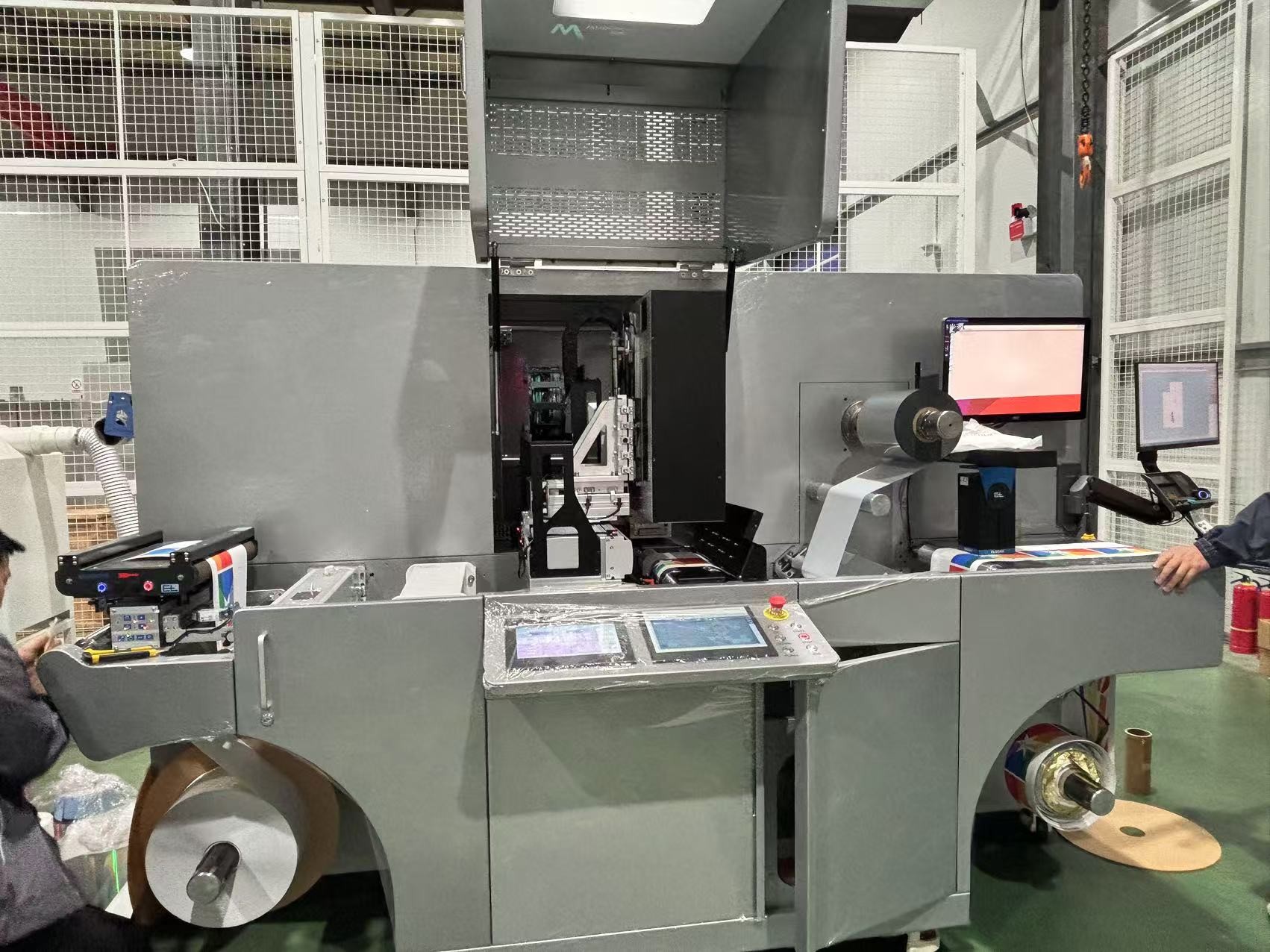

1440*360 Dpi EcooSpark Digital Foil Stamping Label Enhancing Machine

Product Description

EcooSpark Digital Foil Stamping Label Enhancing Machine

Introduction

EcooGraphix's newly developed EcooSpark digital printing machine realizes digital synergistic processes such as digital varnish, 3D crystal bright, partial glazing, cold stamping, embossing, etc., without the need for plate making. It can reduce costs and instantly realize the unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users and is a digital efficiency-enhancing printing machine.

Specification

EcooSpark Digital Foil Stamping And Varnishing Enhancing Machine

Model
EcooSpark

Printing Technology
UV Piezo DoD-inkjet

Resolution
360*360 dpi, up to 1440*360 dpi

Printing speed
6m/min - 50m/min(depending on polymer layer thickness)

Variable image system
PDF, Optimized PDF, Optional barcode system

Supported image standards
PDF, PDF/VT, TIFF, JPEG, BMP & other database files

Substrates
Offset, Digital, Plastics, Laminated and Coated Substrates

Printing image width
288mm (extendable to 330 mm)

Polymer
WB-DS-Clear Polymer

Polymer layer thickness
From 10 up to 250 microns

Ink curing
Inter UV-LED Pre-curing/ Full curing by UV-LED

Unwinder diameter
Max. 700mm, Core 76mm

Rewinder diameter
Max. 700mm, Core 76mm

Substrates thickness
30-400micro

Substrates width
Max. 330mm

Press with Foil station
Machine dimensions(LxHxW): 3500mm*1900mm*1800mm

Operating environment temperature
15ºC-30ºC, Humidity: 40%-80% relative humidity

Electrical requirements
Voltage: 3x380, ±5% 3 phases +G+N;

Frequency: 50/60 Hz; Current: Avg. 25 Amps 58.6Amps 23KW

Weight
2800kg

EcooSpark Digital Foil Stamping And Vanishing Enhancing Machine

Model

EcooSpark

Printing Technology	UV Piezo DoD-inkjet
Resolution	360360 dpi, up to 1440360 dpi
Printing speed	6m/min - 50m/min(depend on polymer layer thickness)
Variable image system	PDF, Optimized PDF, Optional barcode system
Supported image standards	PDF, PDF/VT, TIFF, JPEG, BMP & other data base files
Substrates	Offset, Digital, Plastics, Laminated and Coated Substrates
Printing image width	288mm (extendable to 330 mm)
Polymer	WB-DS-Clear Polymer
Polymer layer thickness	From 10 up to 250 microns
Ink curing	Inter UV-LED Pre-curing/ Full curing by UV-LED
Unwinder diameter	Max. 700mm, Core 76mm
Rewinder diameter	Max. 700mm, Core 76mm
Substrates thickness	30-400micro
Substrates width	Max. 330mm
Press with Foil station	Machine dimensions(LxHxW): 3500mm1900mm1800mm
Operating environment	Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical requirements	Voltage: 3x380, ±5% 3 phases+G+N; Frequency: 50/60 Hz Current: Avg. 58.6Amps 23KW
Weight	2800kg

Application

1440*360 Dpi EcooSpark Digital Foil Stamping Label Enhancing Machine 0

1440*360 Dpi EcooSpark Digital Foil Stamping Label Enhancing Machine 1

1440*360 Dpi EcooSpark Digital Foil Stamping Label Enhancing Machine 2

Workflow

Advantages

Video: https://youtu.be/2yQbwKRet5E
