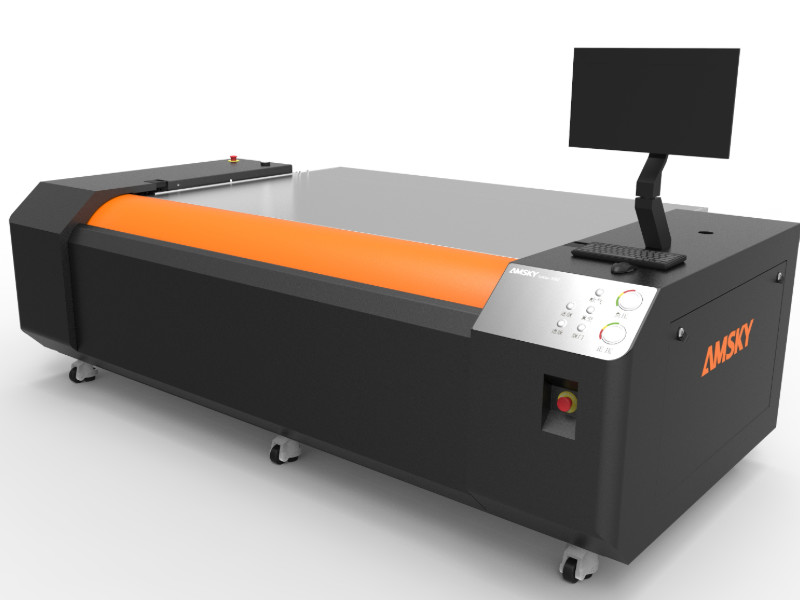

FL5080 Digital Polymer CTP Plate Machine for Carton Printing
FL5080 Flexo Digital CTP Plate Machine 4000dpi
Equipment Advantages
- High energy power fiber laser device delivers full 50" x 80" plate output in just 30 minutes at 5080dpi, with 10% productivity boost for urgent jobs
- Unique 256-channel independent modulating technology with rectangle laser spot shape for superior dot quality and image performance
- H256 laser head features high power magnification optical system achieving 5080dpi optical resolution
- Precision imaging capability: 15μm for slant/circular lines, 5μm for vertical/horizontal lines, improving color fidelity by 30%
- Flexible resolution options with 2540dpi output mode for less critical jobs, increasing productivity to 150%
- Voice coil motor enables dynamic auto-focus for accurate exposure on non-uniform flexo plate surfaces
- Double/triple line overlapping functions optimize LAMS ablation for superior image quality and efficiency
- Instant temperature monitoring and pre-calibration ensure laser exposure stability and reliability
- Optional 10160dpi super high resolution with 2.5μm laser spot size for ultra-fine detail
Specifications
Model: EcooSetter Flexo CTP FL-5080E
Laser Channel: 256-channel
Output Speed: 3~5 sqm/h
Max. Breadth: 50"×80"/1270mm×2032mm
Plate Thickness: 0.14mm - 6.35mm
Laser Power: High power semiconductor laser diode
Plate Type: Digital relief flexo plate (water-wash), Digital flexo plate (water-wash), Digital flexo plate (Solvent-wash), Steel based digital plates (water/alcohol washable)
Application: Label and trademark
Resolutions: 4000dpi
Plate Loading: Manual load and unload
Interface: USB2.0
Focus adjust: Dynamic auto-focus
Device Size: 2,970×1,705×1,537mm
Net Weight: 2500Kg
Power: 220V/50Hz, 60Hz, mainframe 1.5KW + Vacuum 4.5KW
Environment: Recommended temperature: 18-30ºC, Humidity: 10-80%
Major Highlights
- Superior dot quality: 1%-99% dot reproduction, up to 250lpi screening, 4000dpi or 2540dpi optional
- Fully qualified: Compatible with any thermal non-process plate and process plates
- Robust and simple: User-friendly design minimizes human error
- Premium components: World-class parts from leading international suppliers
- Long lifetime: Laser diodes last over 10,000 imaging hours (~20,000 plates)
- Comprehensive warranty: 3 years warranty with free parts replacement
- Low maintenance cost: Affordable replacement parts after warranty (e.g., $250 per laser diode)
- Guaranteed service: Factory installation/training, regular maintenance, 24/7 support
- Proven reliability: Over 6,000 units installed worldwide in 10 years
Similar Models Comparison
| Model |
EcooSetter FL-600E |
EcooSetter FL-600S |
EcooSetter FL-800E |
EcooSetter FL-800S |
EcooSetter FL-4835E |
EcooSetter FL-5080E |
| Laser Channel |
16CH |
32CH |
16CH |
32CH |
256CH |
256CH |
| Output Speed |
1.25 m²/h |
2.5 m²/h |
1.25 m²/h |
2.5 m²/h |
3 m²/h |
3 m²/h |
| Max. Breadth |
26"x17" |
25"x30" |
48"×35" |
48"×35" |
48"×35" |
50"×80" |
| Plate Thickness |
0.14-1.14mm |
0.14-1.7mm |
0.14-6.35mm |
0.14-6.35mm |
0.14-6.35mm |
0.14-6.35mm |
| Application |
Label/trademark |
Label/trademark |
Paper box/soft packaging |
Paper box/soft packaging |
Paper box/soft packaging |
Paper box/soft packaging |
Frequently Asked Questions
What are your main products?
We specialize in prepress equipment including 4up/8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processors, Offset Plates, inks, blankets, and postpress packing equipment. Our products are trusted by partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and more.
Where is your factory located?
Our CTP machine factory is in Hangzhou city, approximately 1.5 hours by train from Shanghai. We welcome visitors to tour our facilities.
What is your warranty policy?
We offer 3 years warranty for Laser Head and main spare parts on CTPs, 1 year for Processors. Combined with our plates, we provide Lifetime Warranty for the CTP machine.
What is the typical lead time?
Standard lead time is 10-30 days, though we strive to accommodate urgent requests.
Do you supply Workflow and RIP software?
Yes, we provide Workflow Brain New and RIP Compose V13 solutions.
What about installation and technical support?
Our engineers provide on-site installation and training (buyer covers travel expenses). We offer 24/7 technical support for any issues or questions.
