Cost-Effective Printing Ink Model Environment-Friendly Printing
Sheet-Fed Ink
1. Application
ECOO-INK-E printing ink is ideal for various printing applications, including packaging, advertisements, labels, and decorative products. It performs exceptionally well on art paper, coated paper, offset paper, cardboard, and more. It is particularly well-suited for both single-color and multi-color printing projects.
2. Features
- Environmentally friendly formulation
- Excellent anti-skinning performance
- Achieves optimal water/ink balance
- Provides rich printing layer
- Produces clear and complete printing dots
- Offers quick-drying performance, enabling fast setting and turnaround times
3. Properties
| Type |
ECOO-INK-E |
| Printing Speed |
Printing speed: 9000rph-11000rph |
| Packing |
1 kg/2.5kg per tin, 12 tins/6 tins per carton |
| Shelf Life |
3 years (from the production date); Product against light and water |
| Appearance |
Colored paste |
| ITEM/TYPE |
TACK
VALUE
|
FLUIDITY
(mm)
|
PARTICLE
SIZE (μm)
|
SETTING
TIME (min)
|
DRYING
TIME (hr)
|
SKINNING
TIME (hr)
|
|
E
YELLOW
|
6.5-7.5 |
35±1
|
15 |
3 |
< 8 |
>15 |
|
E
MAGENTA
|
7-8 |
37±1
|
15 |
3 |
< 8 |
>15 |
|
E
CYAN
|
7-8 |
35±1
|
15 |
3 |
< 8 |
>15 |
|
E
BLACK
|
7.5-8.5 |
35±1
|
15 |
3 |
< 8 |
>15 |
| Tack Value |
The value is measured in 1 minute by inkometer at 32℃ and 400rpm. |
| Set Time |
Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc |
| Condition of Test |
Room temperature 25℃, humidity 65%-75% |
| ITEM/TYPE |
Light
Resistance
|
Heat
Resistance
|
Acid
Resistance
|
Alkaline
Resistance
|
Alcohol
Resistance
|
Soap
Resistance
|
|
E
YELLOW
|
3-4 |
5 |
5 |
4 |
4 |
4 |
|
E
MAGENTA
|
3-4 |
5 |
5 |
5 |
4 |
4 |
|
E
CYAN
|
6-7 |
5 |
5 |
5 |
5 |
5 |
|
E
BLACK
|
6-7 |
5 |
5 |
5 |
5 |
5 |
| Light Fastness |
1-8 (weak-strong) |
| Others |
1-5 (weak-strong) |

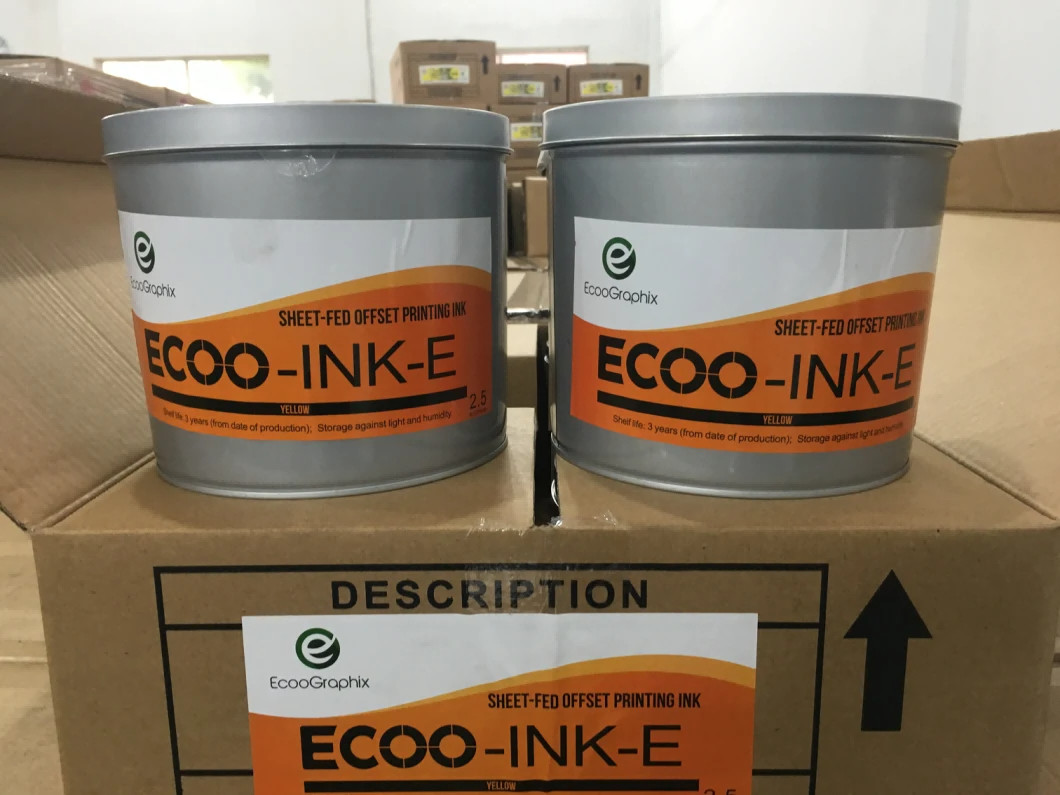

4. Package Of Our Ink
Our ink is typically packaged in aluminum cans, available in 1 kg or 2.5 kg sizes, and vacuum-sealed for secure transportation. For larger quantities, 6 or 12 drums are packed in a carton with partition boards to prevent collisions and ensure safe delivery. Our standard packaging features multiple protective layers and a thoughtful design to maintain product integrity.
5. Knowledge of Sheet Offset Printing Ink, Web Offset Printing Ink And UV Ink, Digital Printing Ink.
Offset printing ink is primarily used in lithographic offset presses and is characterized by its thickness and tackiness. Comprising three components—the ink vehicle, pigment, and additives—offset printing ink is versatile, and suitable for both web and sheet-fed printing. While web offset printing ink tends to be more fluid with less tack, sheet offset lithographic ink offers specific advantages.
UV ink, also known as UV-curable ink, dries rapidly, allowing presses to operate at faster speeds with minimal offsetting risk. This type of ink boasts enhanced color vibrancy and glossiness due to reduced absorption into the substrate. Moreover, UV ink emits lower levels of organic solvents, making it ideal for printing on non-porous materials like plastic.
Digital printing ink, on the other hand, is directly transferred onto surfaces without the need for aluminum plates or rubber blankets. This liquid ink dries quickly, facilitating efficient printing processes.
6. Tips Before Ink Processing And After Processing.
Ⅰ. Avoid judging the color of ink solely by its appearance in the package. Ink may appear darker and dirtier in the container than it does when printed. Mistaking black for blue or red is a common error.
Ⅱ. Bubbles may be present in the ink due to the inclusion of nitrogen during production to prevent oxidative drying issues. These bubbles will dissipate on the rolls of the inking unit and should not cause printing problems.
Ⅲ. During extended print interruptions, clean the rolls and spray antioxidants on the ink in the ink duct to prevent drying.
Ⅳ. Always remove any skin that forms on the surface of the ink in the opened container, regardless of its size.
Ⅴ. Inks that have been mixed with printing aids should not be returned to the original ink container.

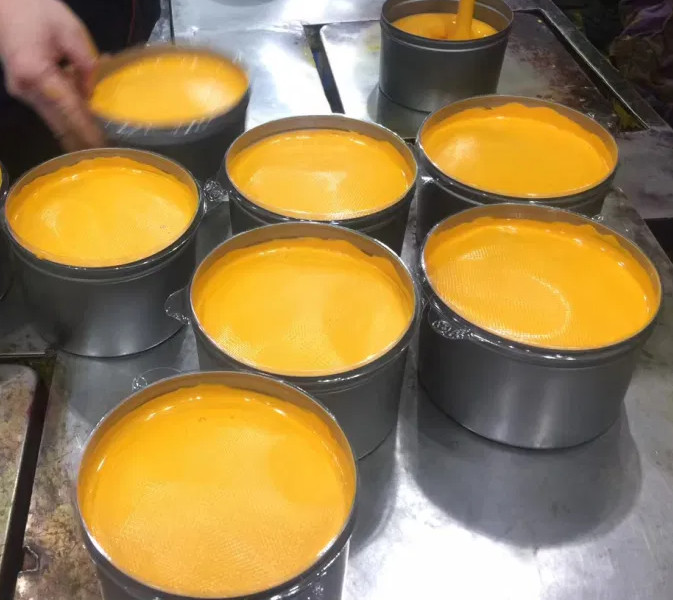

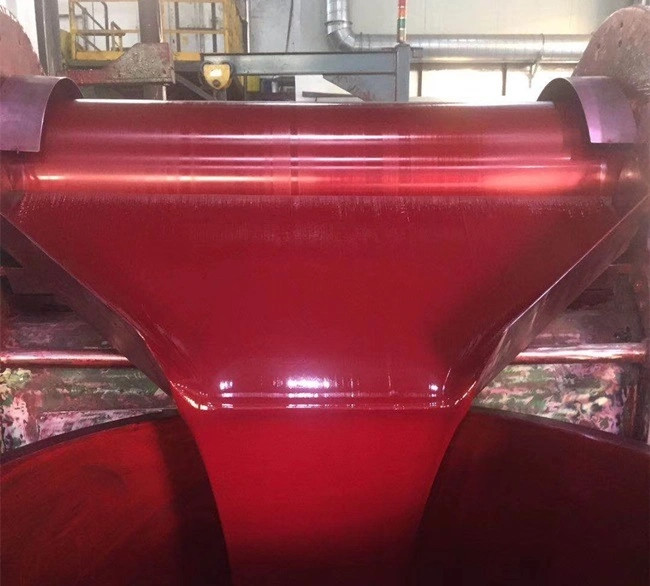

7. Production and Packaging
From production to delivery, we meticulously oversee every detail to ensure high product quality and excellent service for our customers.
Certificate
FAQ
Q1: How can we accommodate specific color requirements from our company?
A: We can provide inks in specific colors or with specific characteristics upon request, such as drying speed, odor, resistance to fading, and gloss. Please send us detailed ink samples or Pantone numbers so that we can produce them to your specifications.
Q2: How should offset printing ink be stored?
A: Offset inks should ideally be stored and processed at temperatures between 18ºC and 25ºC. Storing at low temperatures may lead to viscosity issues while storing at high temperatures can result in misting, ink/water problems, or increased dot gain. Store ink cans vertically, away from direct sunlight.
Q3: Can I request a sample?
A: We are happy to provide free samples for testing. Typically, we offer a set of ink weighing 4kg (1kg per can) for free, but we kindly request assistance with air courier freight costs. However, this cost can be reimbursed with your first order.
