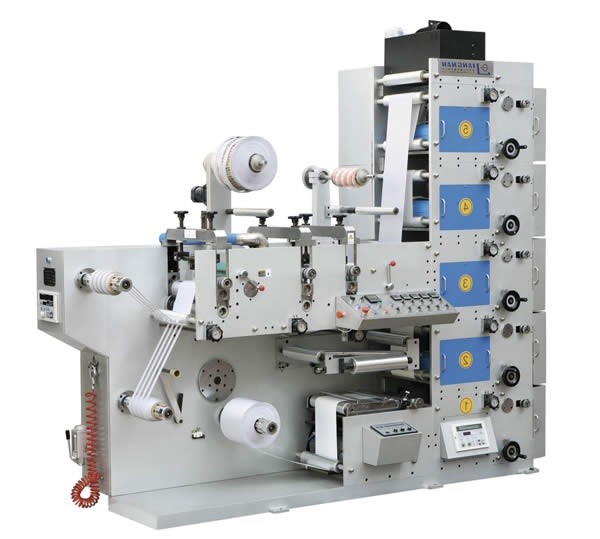

Automatic Flexo UV Label Printer For Printing Adhesive Label
· ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · FEATURES · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ ·
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.

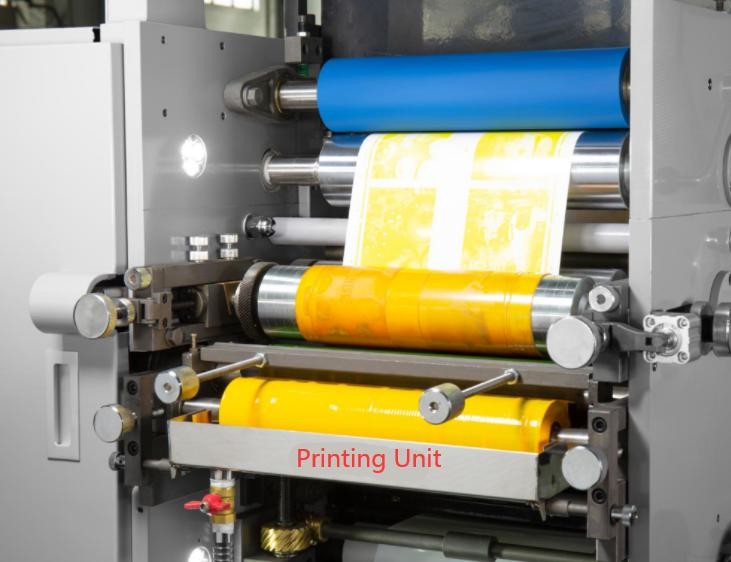

3. Each printing unit adopts 360°plate adjustment.
4. Each printing unit equips with hot air dryer.
5. This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
6. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
7. Main motor use inverter to adjust stepless speed.
8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump.
It is an ideal machine for printing adhesive label.
· ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · SPECIFICATION · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ ·

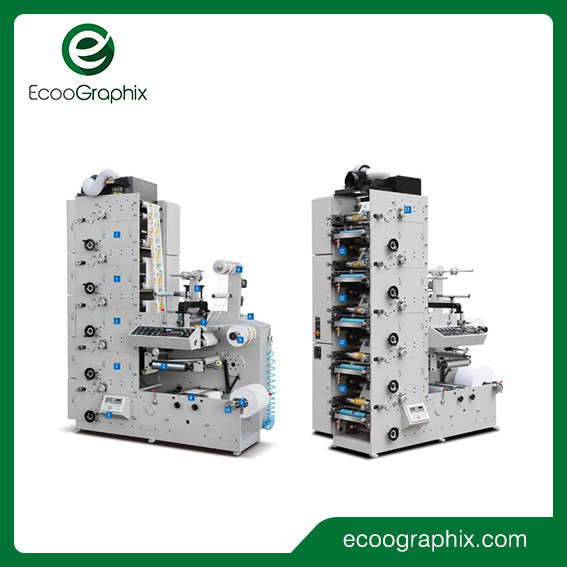

Automatic Flexographic Label Printing Machine
Model ECOO-320
Printing speed 60 m/min
Printing color 1-6 colors
Max. web width 320mm
Max. printing width 310mm
Max. unwinding diameter 600mm
Max. rewinding diameter 600mm
Printing length 177.8-355.6mm
Precision of chromatography ± 0.1mm
Dimensions(L×W×H) 2000 x 1100 x 2600mm
Machine weight About 2150kgs
| Automatic Flexographic Label Printing Machine |
| Model |
ECOO-320 |
| Printing speed |
60 m/min |
| Printing color |
1-6 colors |
| Max. web width |
320mm |
| Max. printing width |
310mm |
| Max. unwinding diameter |
600mm |
| Max. rewinding diameter |
600mm |
| Printing length |
177.8-355.6mm |
| Precision of chromatography |
± 0.1mm |
| Dimensions(L*W*H) |
2000 x 1100 x 2600mm |
| Machine weight |
About 2150kgs |
| MAIN CONFIGURATION |
| Description |
Brand |
Quantity |
Origin |
| Printing roller |
|
3 sets |
China |
| Anilox roller |
Auclean/Laser |
1 set |
China |
| Unwind tension controller |
Mitsubishi |
1 set |
Japan |
| Rewind tension controller |
ZXTEC |
1 set |
China |
| Main motor |
Wannan |
1 set |
China |
| Transducer |
Mitsubishi |
2 sets |
Japan |
| Magnetic power brake/cluth |
Ningxia |
3 sets |
China |
| Electromagnetic valve |
Airtac |
2 set |
Taiwan |
| Inverter |
Schneider |
1 set |
France |
| AC Contactor |
Schneider |
2 pcs |
France |
| Time relay |
C-LIN |
1 pc |
China |
| Solid relay |
Omron |
6 pcs |
Japan |
| Micro relay |
Weidmiiller |
2 pcs |
Germany |
| Temperature Controller |
Yuyao |
6 pcs |
China |
| Air switches |
Siemens |
8 pcs |
Germany |
| Low pressure wiring |
Schneider |
All |
France |
| All the bearing |
NSK/CHINA |
|
JAPAN/CHINA |
· ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · PRODUCING AND PACKAGING · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ ·
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
· ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · CERTIFICATES · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ ·
· ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · FAQ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ ·
|
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
|
| |
|
Q2: Where is your factory ?
A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!
|
| |
|
Q3: How long is the lead time ?
A: The lead time is normally 30 days. We can accelerate for emergency cases.
|
| |
|
Q4: Is there any certification for your machine ?
A: Yes, all our machines have been certified by SGS and CE.
|
| |
|
Q5: How long is the warranty period ?
A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.
|
| |
|
Q6: What is your normal payment term ?
A: Normally, 30%TT deposit, 70% before shipping, or LC at sight.
|
| |
|
Q7: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
|
