EcooSpark UV Piezo LED Curing Digital Label Printing Machine Efficiency Enhancing

1 SET
MOQ
Negotiable
Price
EcooSpark UV Piezo LED Curing Digital Label Printing Machine Efficiency Enhancing
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: Label Enhancement Machine
Printing Technology: UV Piezo Dod-Inkjet
Resolution: 360*360 Dpi, Up To 1440*360 Dpi
Printing Image Width: 288mm (Extendable To 330 Mm)
Polymer: Wb-Ds-Clear Polymer
Ink Curing: Inter UV-LED Pre-Curing/ Full Curing By UV-LED
Polymer Layer Thickness: From 10 Up To 250 Microns
Substrates Width: Max. 330mm
Highlight:

LED Curing Digital Label Printing Machine

,

Digital Label Printing Machine

,

UV Piezo LED Curing Label Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSpark
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

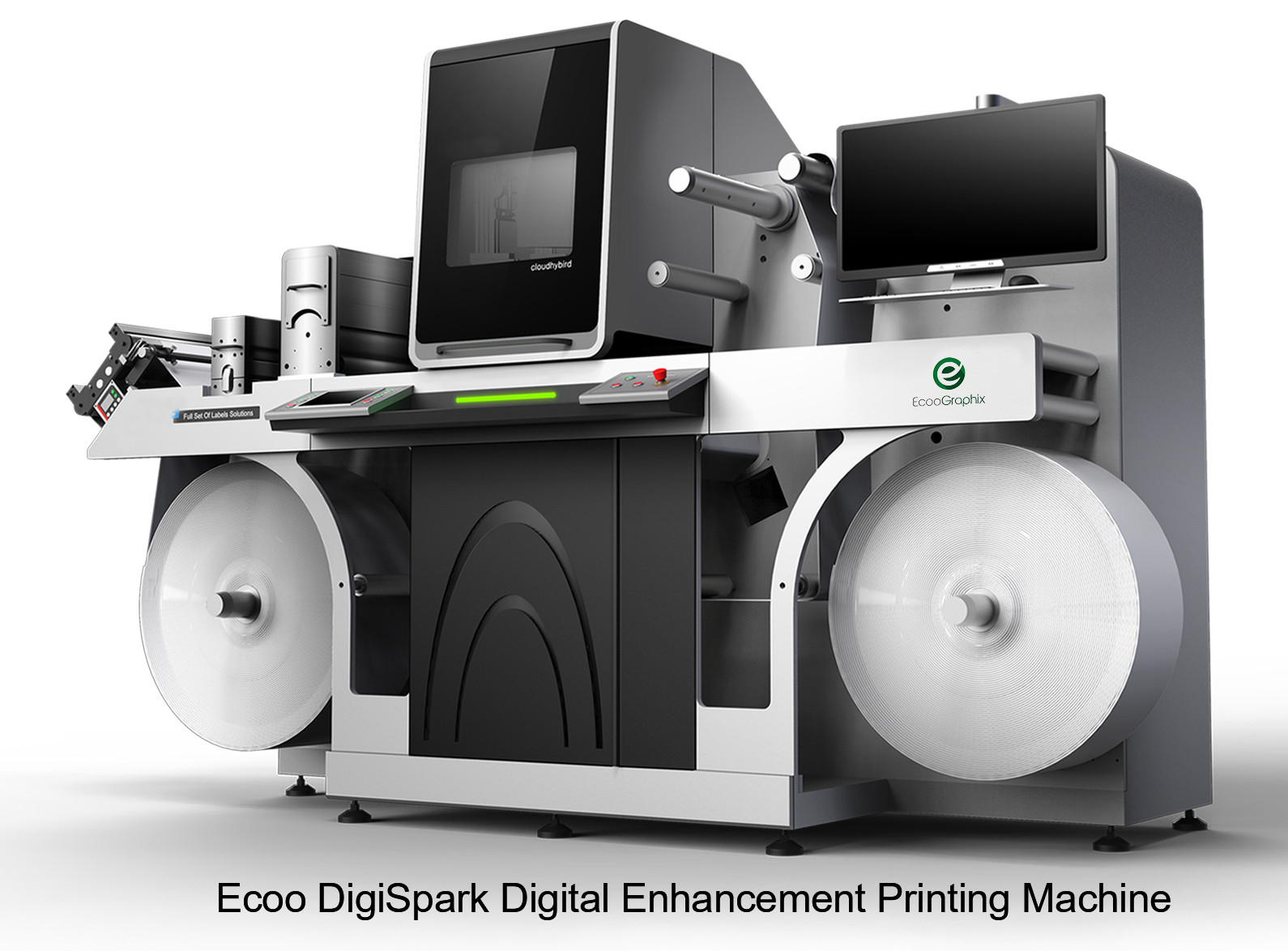

UV-LED Curing Digital Label Efficiency-enhancing Machine

EcooGraphix's newly developed EcooSpark digital printing machine revolutionizes the post-press process by enabling advanced digital techniques such as digital varnish, 3D crystal bright effects, partial glazing, cold stamping, and embossing, all without the need for traditional plate making. This cutting-edge technology significantly reduces production costs while instantly delivering unique visual effects, enhancing the overall quality and appeal of printed materials.
The EcooSpark machine is not just a digital printing device; it's a powerful tool for creating new profit opportunities. Integrating these digital synergistic processes offers users the ability to produce high-quality, eye-catching prints efficiently and cost-effectively. This makes the EcooSpark a key asset for businesses looking to improve their post-press operations and boost their competitive edge in the market. Its innovative features ensure that users can achieve exceptional results, making it a digital efficiency-enhancing printing machine that stands out in the industry.

Specification


EcooSpark Digital Foil Stamping And Varnishing Enhancing Machine
ModelEcooSpark
Printing technologyUV Piezo DoD-inkjet
Resolution360*360 dpi, up to 1440*360 dpi
Printing speed6m/min - 50m/min(depend on polymer layer thickness)
Variable image systemPDF, Optimized PDF, Optional barcode system
Supported image standardsPDF, PDF/VT, TIFF, JPEG, BMP & other data base files
SubstratesOffset, Digital, Plastics, Laminated and Coated Substrates
Printing image width288mm(extendable to 330 mm)
PolymerWB-DS-Clear Polymer
Polymer layer thicknessFrom 10 up to 250 microns
Ink curingInter UV-LED Pre-curing/ Full curing by UV-LED
Unwinder diameterMax. 700mm, Core 76mm
Rewinder diameterMax. 700mm, Core 76mm
Substrates thickness30-400 micro
Substrates widthMax. 330mm
Press with foil stationMachine dimensions(LxHxW): 3500mm x 1900mm x 1800mm
Operating environmentTemperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical requirements

Voltage: 3x380, ±5% 3 phases +G+N; Frequency: 50/60 Hz
Current: Avg. 58.6 Amps 23KW

Weight2800kg
