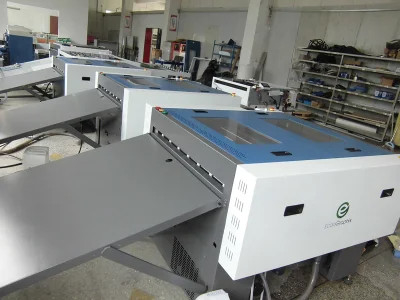

Energy Saving CTP Plate Processor With Intelligent Replenishment System
Offset Printing Plate Developing Machine CTP Plate Processor
Model: Series 900/1150/1250/1500
In both traditional and modern prepress workflows, the imaging process is only half complete upon exposure. Whether using conventional Photosensitive (PS) plates or advanced Computer-to-Plate (CTP) variants, the latent image created by exposure must be chemically and physically developed to become a durable, print-ready printing plate. This critical development stage is performed by a dedicated processor or developer.
The exposure process—whether through film negatives in vacuum frames for PS plates or direct laser imaging in CTP platesetters—alters the plate's coating chemistry in specific patterns. However, this alteration is not yet visible or robust. The processor renders these patterns permanent through a meticulously controlled sequence: developing to dissolve non-image areas, rinsing to halt development, applying protective gum coating, and thorough drying.
Without this essential processing phase, exposed plates remain sensitive, unstable, and unfit for printing press environments where they must withstand thousands of impressions under pressure, water, and ink. The processor is therefore an indispensable component that transforms sensitized substrates into functional, industrial-grade printing tools.
Key Characteristics
- Excellent overall design ensures superior development results with clear dots, stable performance, and strong reliability under continuous operation
- Precise control of development temperature and time meets washing requirements for various plates and chemicals
- Remarkable water-saving performance: precise wash time control and scientific spray design save up to 80% of water consumption
- Significant drying energy savings with uniform plate temperature (achieving comparable results while saving about 30% of energy)
- Intelligent developer replenishment system ensures consistent development quality and minimizes chemical waste
- Scientific design of power, filtration, and pipeline layout effectively inhibits crystallization buildup
- Low-liquid alarm, drying over-temperature self-protection, and multiple safety features ensure reliable operation
- User-friendly touch screen interface with intuitive controls for simple operation
- Easy maintenance with foldable rollers and brushes, featuring position memory for quick part replacement
Technical Specifications
| Model |
P-900 |
P-1150 |
P-1250 |
P-1350 |
P-1550 |
| Page Size |
280-870 mm |
280-1100 mm |
290-1200 mm |
280-1300 mm |
300-1500 mm |
| Plate Thickness |
0.15-0.4mm |
| Processing Speed |
Speed adjustable (10-60 seconds) 400-1000mm/minute |
| Temperature |
10 to 45°C adjustable (automatic temperature control, cooling system) |
| Developing Capacity |
46L |
58L |
70L |
74L |
78L |
| Drying Temperature |
20-65°C adjustable |
| Electricity Requirement |
220 V (208 V - 240 V) single-phase 50-60hz |
| Working Power |
4.5KW |
5KW |
5.5KW |
5.5KW |
6.5KW |
| Weight |
320kg |
340kg |
360kg |
440kg |
600kg |
Complete Prepress Production Line
Autoloader: Automated plate feeding and loading
CTP: Transfers images from computer to plate
Processor: Removes non-image areas from the plate
Stacker: Collects plates after processing/developing
Production & Quality Assurance
From manufacturing to delivery, we meticulously oversee every detail to guarantee superior product quality and customer service.
Frequently Asked Questions
What are your main products?
Our product range includes Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processors, Offset Plates, Offset Inks, Offset Printing Blankets, and Postpress Packing Equipment. You can source both equipment and consumables from our company with comprehensive after-sales service support.
Is there any certification for your CTP Processor?
Yes, all our machines are certified by SGS and CE, ensuring compliance with international quality and safety standards.
What about installation and after-sales technician support?
Our engineers provide installation services and necessary training. The buyer is responsible for round-trip airfare, service charges, and local accommodation costs. We offer 24/7 technical support for any questions or issues. Our global installation base includes numerous printers who purchase directly from EcooGraphix China and operate CTP systems with full satisfaction due to our robust quality, comprehensive remote service, thorough training, and maintenance support. We guarantee complete customer satisfaction.
