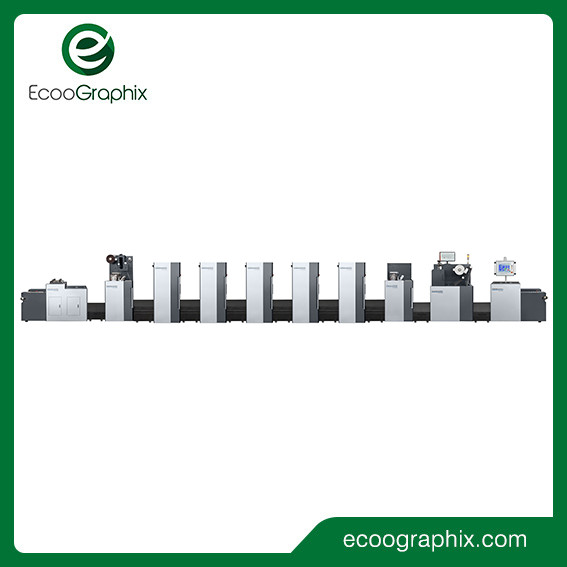

Multifunctional Automatic Rotary Offset Printing Machine
1. Our high-speed rotary offset printing machine, featuring sleeve technology, boasts over 20 national and international patents.
2. Utilizing continuous offset printing mode and advanced variety printing sleeve technology ensures both rapid printing speeds and exceptional print quality.
3. The air expansion sleeve design for the plate and blanket rollers enables quick plate changes, simplified operation, and enhanced efficiency.
4. Automatic adjustment of the inking and water systems based on variable printing sleeves ensures uniform ink distribution, stable printing pressure, and easy adjustments.
5. Equipped with automatic tension control and a web guider, the unwinder ensures smooth operation.
6. Automatic printing tension control guarantees smooth web passage, maintaining stability even at high speeds for precise printing.
7. Featuring automatic pre-registration and photocell-based registration, this machine ensures accurate alignment during setup and subsequent passes.
8. Optional inline inspecting system can be integrated as per user requirements.
9. With offset printing units as its foundation, the machine can be customized to incorporate additional functions such as flexo, gravure, cold stamping, hot stamping, die cutting, and embossing.
10. Versatile in its capabilities, this machine accommodates various substrates including self-adhesive paper, paper, and unsupported films such as BOPP, PET, PP, PVC, etc.
| Model |
Ecoo-ZP 480 |
Ecoo-ZP 680 |
| Max. Printing speed |
180m/min |
180m/min |
| Printing color |
4-12 colors |
4-12 colors |
| Max. web width |
480mm |
680mm |
| Max. printing width |
460mm |
660mm |
| Max. unwinding diameter |
1000mm |
1000mm |
| Max. rewinding diameter |
1000mm |
1000mm |
| Printing length |
380-690mm |
430-630mm |
| Dimensions (L×W×H) |
15.2m × 3.7m × 2.1m |
| |
Unwinder+Flexo unit with cold stamping+5 Offset units+Flexo (varnishing)+Die-cutting unit+Rewinder |
Machine Spare Parts
Heavy Offset Printing Unit
High-quality heavy offset printing unit with a well-designed inking system that can transfer ink fast & evenly, avoids gear marks and ghost images effectively. The printing quality can be highly improved.
Variable Printing Sleeve
When the printing job with different repeat length, just change both the plate and blanket sleeve accordingly. The sleeve changing is very fast and efficient.
Automatic Ink Control System
With one-button setting, ink control is automatic, because of ink supply automation and precision, it improves the printing efficiency, and quality, and reduces wastage.
Note:*=Options
*Flexo Unit
To print more shining, the flexo unit can do spot varnishing full varnishing, or drip-off, and can be installed according to user's requirement.
*Cold Stamping Unit
Cold stamping with registration and hologram transfer, can be installed according to the user's requirements.
*Die-cutting Unit
Adopts magnetic roller, the printing and die-cutting can be finished at one time. It can be installed according to the user's requirements.
More details
FAQ
1. What are your main products?
We Ecoographix are a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom, and post-press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top-quality Chinese printing products to meet diversified printing requirements.
2. Where is your factory?
Our sales office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou, and Nanyang.
3. What is your warranty?
Normally 1 year.
4. Can you also supply the software?
Yes
5. What about the Installation and after-sales technician support?
Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
