High Quality 3 Layers Thickness 1.97/1.70mm Rubber Blanket For Offset Printing

50SQM
MOQ
Negotiable
Price
High Quality 3 Layers Thickness 1.97/1.70mm Rubber Blanket For Offset Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: Rubber Blanket For Offset Printing
Spectral Sensitivity: Hene Laser And Red Laser Diode (630-670nm)
Description: Emulsion Coated On A 0.10 Mm Antistatic Polyester
Developer: Agfa Developers
Surface: Micro-Ground And Polished
Safe Light: Dark Green, Recommended: Encapsulite T20/ND.75
High Light:

1.97/1.70mm Rubber Blanket

,

Offset Printing Rubber Blanket

,

3 Layers Rubber Blanket

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: ECOO-TDS
Payment & Shipping Terms
Packaging Details: Carton Box
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,000 Square Meter Per Year
Product Description

High Quality 3 Layers Thickness 1.97/1.70mm Rubber Blanket For Offset Printing
Model: ECOO-BL-E





Brief Introduction:
The printing blanket normally includes 3 layers:
1. a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder.
2. a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores.
3. an outer-lying void-free layer of an elastomeric layer which faces toward the printing material.





Specification:

Model ECOO-BL-E
Construction 3 ply
Thickness 1.97/1.70±0.02nm
Color Blue
Compressible Microspheres
Surface Micro-ground and polished
Roughness 0.9-1.1μm
Hardness 76-80
Elongation ≤1.2%
Tensile strength ≥80
Application Strong universality
Prefer to package print
Speed about 12000 prints/hour
Characteristic   Moderate compressible avoids moving image of machine and reduces the edge marking. Wide-ranging print. Prefer to carton print and full mold print.

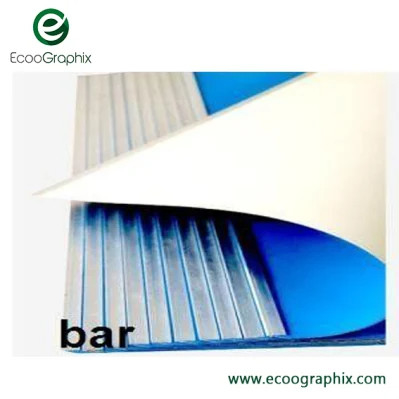

*About bar: We can offer blanket with or without bar, depending on customers'inquiry. $5 will be surcharged for each pair of bars. Please let us know the machine model or bar size if you need blanket with bar.





Features (Sales Point):
1. High cost-effective. Our most economic blanket model as well as most popular seller. Could satisfy 85% printing jobs.
2. High compressive ability, which allows many types and printing material in different thickness.
3. Wide range printing, prefer package printing on carton in moderate speed.
4. Excellent in the action of absorbing a shock such as a mechanical impact, prevent the material to be printed from winding around the blanket cylinder.





Maintenance:

1. Clean the blanket with fast volatile organic solvents
2. Clean rolls when ink color changing or refilling
3. Release the blanket off the cylinder when the printing machine stopped for a long time
4. New blankets should be stored in dry and cool place covered with dark layer.

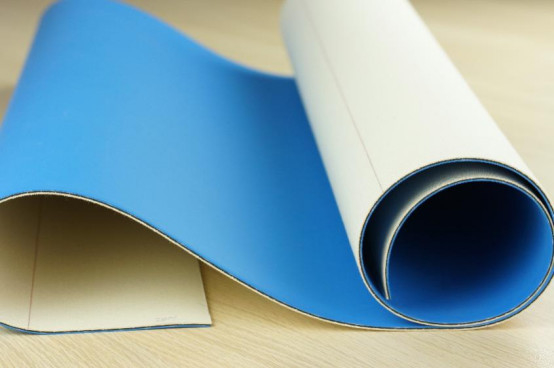

High Quality 3 Layers Thickness 1.97/1.70mm Rubber Blanket For Offset Printing 0

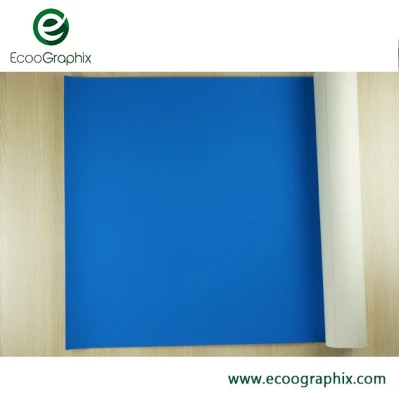

High Quality 3 Layers Thickness 1.97/1.70mm Rubber Blanket For Offset Printing 1



High Quality 3 Layers Thickness 1.97/1.70mm Rubber Blanket For Offset Printing 2





FAQ:
Q1: Do you offer free sample? How long is the sample time of the shipping? Does the sample fee can be returned?
Since blanket is high value, we did not offer free sample. But we can offer favorable discount. It will take 5 days to prepare sample. If you place bulk order, we will refund the sample fee and courier cost.


Q2: About the sample what is the cost of transportation?
The freight depends on weight, packing size and your country or province region,etc.


Q3: How long can I expect to get the sample?
The sample will be ready for delivery in 3-5 days and will be sent via international express such as DHL, UPS, TNT, FEDEX and would be arrived within 3-5 days.


Q4: What about warranty?
Ecoographix gurantees 2 years of warranty for laser head and spare parts.


Q5. Payment term?
Normally, 30% deposit, 70% before shipping.
