High Quality Agfa Graphi Arts Imagesetting Film Hns Hnu Film For Printing

200SQM
MOQ
Negotiable
Price
High Quality Agfa Graphi Arts Imagesetting Film Hns Hnu Film For Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Agfa Graphi Arts Imagesetting
Plate Type: Alliance Far Red Film
Spectral Sensitivity: Hene Laser And Red Laser Diode (630-670nm)
Developer: Agfa Developers
Processing Time: 25-60 Sec
Safe Light: Dark Green, Recommended: Encapsulite T20/ND.75
Storage: Cool Dry Place Temperature Below 20 Centigrade
Highlight:

Printing Arts Imagesetting Film

,

High Quality Arts Imagesetting Film

,

Hns Hnu Arts Imagesetting Film
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: ECOO-TDN
Payment & Shipping Terms
Packaging Details: Carton Box
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200, 000 Square Meter/Year
Product Description

High Quality Agfa Graphi Arts Imagesetting Film HNS HNU Film For Printing
Model: ECOO-TDN





Brief Introduction:

Open-system, high-speed, red-sensitive film with hard dot image quality, intended for exposure in image setters with HeNe laser (630nm-670nm) or red laser diode. Perfect processing in compatible chemistries.


Specification:
Model ECOO-TDN
Plate Type Digidot far red film
Spectral Sensitivity HeNe laser and red laser diode (630-670nm)
Description Emulsion coated on a 0.10 mm antistatic polyester base
Practical Photographic Properities with different engine
Engine Accuset Avantra
Int. Setting 165 210
Practical Density D.4.10-4.20 D.4.10-4.20
5% 4% 5%
50% 51% 51%
95% 96% 95%
Developer Agfa developers
Processing time 25-60 sec
Processing temperature 35ºC or 95ºF
Developer Replenishment 15% exposure 100ml/m²
(eg, ACD/ASD) 50% exposure 200ml/m²
  85% exposure 350ml/m²
Anti-OX replenishment 2500 ml/24h=0.660 US gallons/24h
Fixer Agfa fixer
Fixing temperature 32ºC or 90ºF

Fixer replenishment

(Without Fixer electrolysis)

 15% exposure 500 ml/m²
50% exposure 300ml/m²
85% exposure 100ml/m²
Fixer replenishment with Fixer electrolysis 125 ml/m²
Practical set-up density   >D 4.00 (dotgain depending on optical quality of imagesetter)
Chemical Compatibility Processable in all rapid access chemistries and in main hard dot chemistries such as RA2000, FUJIHQ QRD-1 AND QRD-1P
Dimensional Stability Humidity coef: 0.10mm base, Crh 0.016mm/m/%RH
Temp. coef: 0.10mm base, Cot 0.018mm/m/1ºC
Safe light Dark Green, recommended: Encapsulite T20/ND.75 or equivalent
Storage The film are preferably stored in a cool dry place temperature below 20ºC and a relative humidity between 30% and 60%



* This film is offered for priting industry which is used to tranfer image from the computer file to plate and then go to paper working with ink.





Main features:
The dot is sharp. The image quality is excellent wit
High contrast, high resolution; low fog and maximum density is over 4.5;
It is suitable for rapid access at high temperature, wide exposure and developing latitude.
Loading can be done in bright room, convenient and fast.


Sizes:
390mmX60m 610mmX60m
406mmX60m 660mmX60m
457mmX60m 813mmX60m
508mmX60m 838mmX60m
558mmX60m 914mmX60m
Other sizes are also available as required.

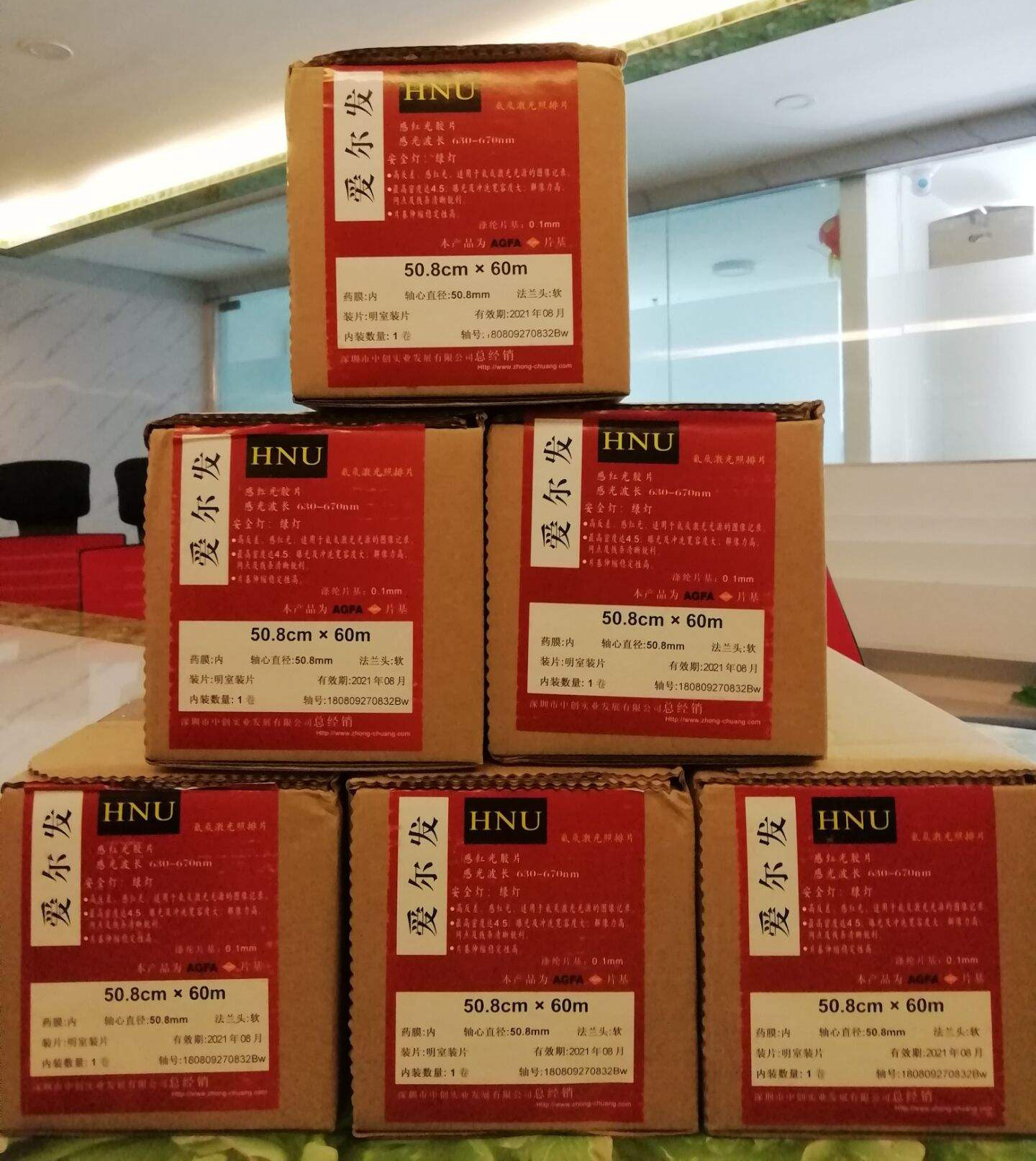

High Quality Agfa Graphi Arts Imagesetting Film Hns Hnu Film For Printing 0

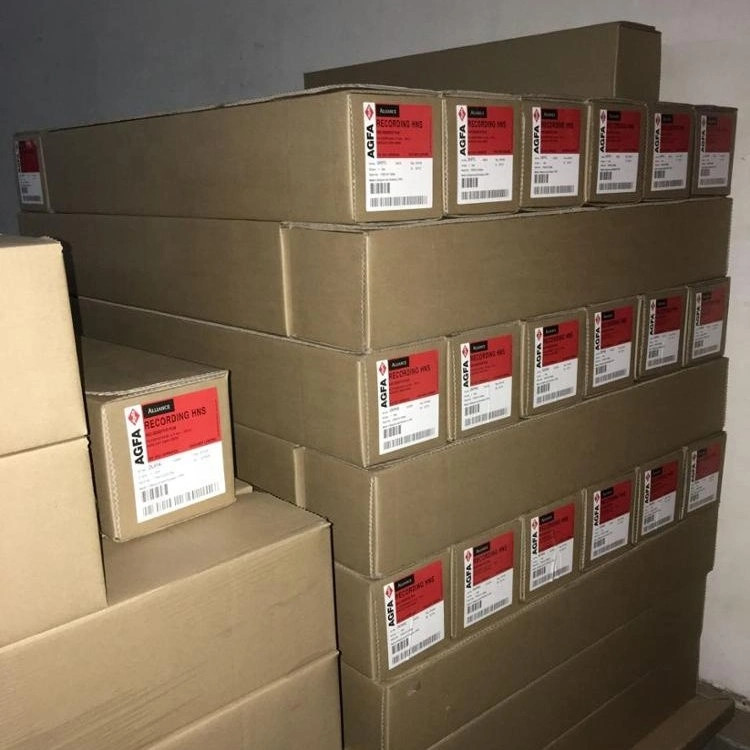

High Quality Agfa Graphi Arts Imagesetting Film Hns Hnu Film For Printing 1

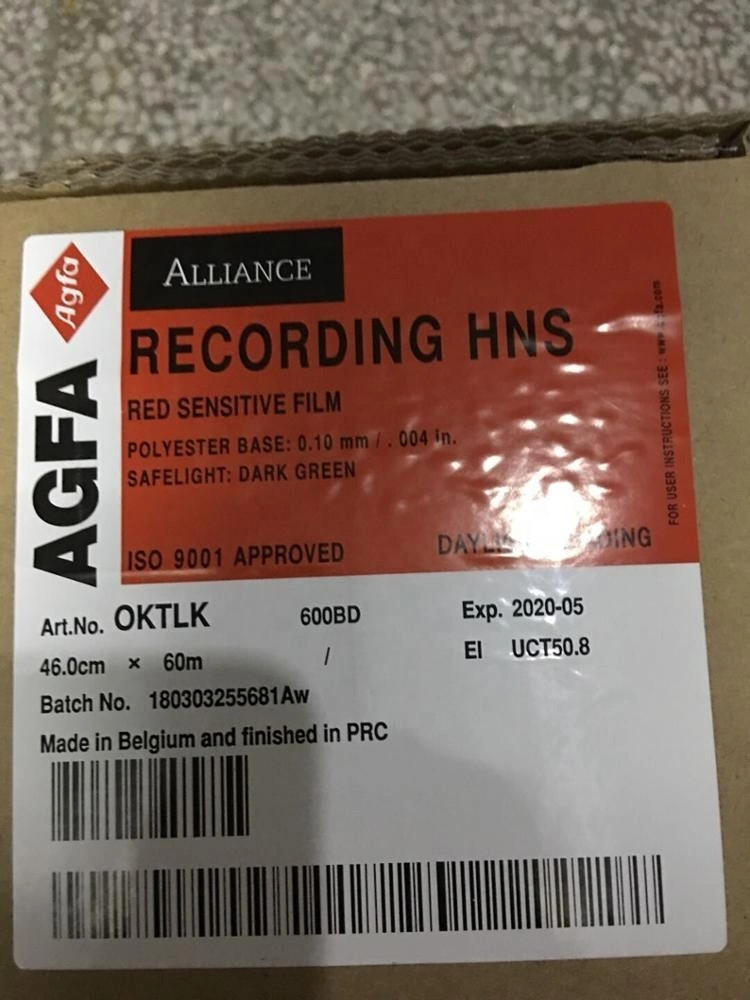

High Quality Agfa Graphi Arts Imagesetting Film Hns Hnu Film For Printing 2





Our other products portfolio:



CTP plate
1. ECOO-ED, our double layer thermal plate.
2. ECOO-G, processless negative DOP thermal plate (chemistry free).

CTCP Plate
4. ECOO-CTCP-ES, our single layer conventional CTCP plate.
5. ECOO-CTCP-D, our double layer conventional CTCP plate.
6. ECOO-H, processless negative DOP CTCPplate (chemistry free)

PS plate
ECOO-PS, single layer ps plate

Violet plate
ECOO-V, low chemistry violet plate

Plate imaging setter (CTP machine)- with lifetime warranty policy
Thermal CTP (automatic and semi-automatic)
UV CTP (automatic and semi-automatic)
VLF (very large format)CTP to manage 800mm, 1400mm, 1600mm, 2000 mm imageing width
GLV (great light valve) CTP with super high speed
Flexo CTP for label printing and package printing
