1.Application

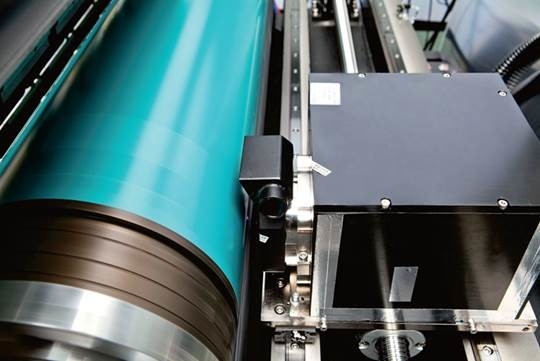

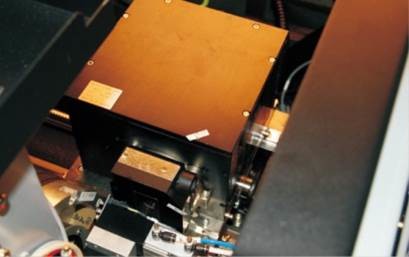

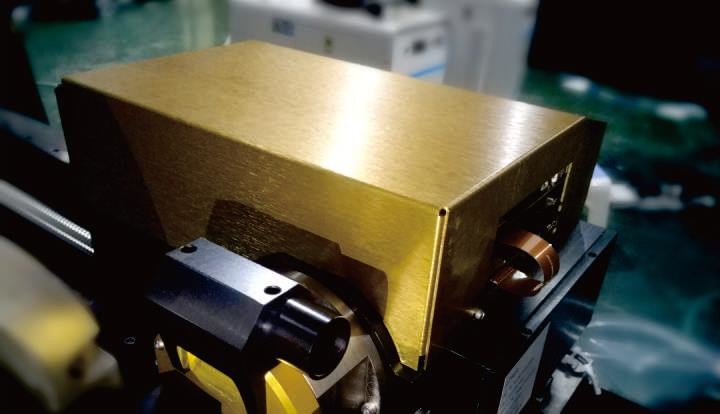

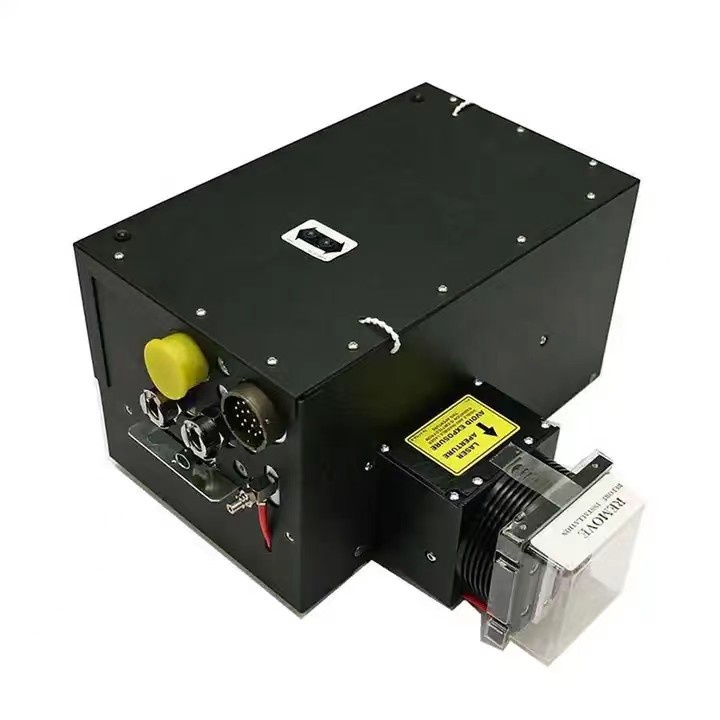

EcooGraphix supply new or used laser head for CTP (Computer To Plate) Plate making Machine. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.
EcooGraphix UV400series thermal CTP are for A2 or B2 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual,very easy to use.
By EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.
2.Characteristic
Maximum size of plate: 800×690mm
Features: Small Volume, high stability and perfect output quality.
UV plate and thermal plate are available for you to lower production cost.
Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%
2. Other Similar Models:
| Model | UV-800F | UV-800S | UV-800E | UV-400F | UV-400S | UV-400E |
| Exposing Mothod | External Drum | |||||

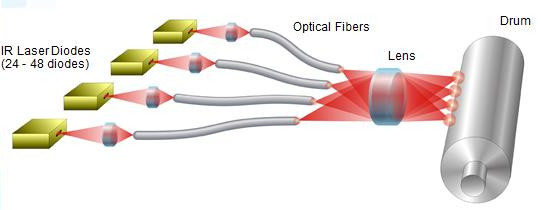

| Imaging System | 64-channel | 48-channel | 32-channel | 48-channel | 32-channel | 24-channel |
| Discrete 405nm laser diode | ||||||
| Throughput | 28plates/hour | 22plates/hour | 16plates/hour | 28plates/hour | 22plates/hour | 16plates/hour |
| 1030mm x 800mm, 2400dpi | 800mm x 660mm ,2400dpi | |||||
| Plate Sizes | Max.1163mm x 940mm Min.400mm x 300mm |
Max.800mm x 690mm Min. 260mm x 300mm |
||||
| Exposing Size | Max.1160mm x 934mm Min.260mm x 284mm |
Max.800mm x 646mm Min. 260mm x 284mm |
||||
| Media Type | positive UV-CTP plate with sensitivity ≤75mj/cm2 | |||||
| Plate Thickness | 0.14mm to 0.30mm | |||||
| Resolution | 2400dpi,1200dpi optional | |||||
| Repeatablity | ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) | |||||
| Interface | USB 2.0 | |||||
| Plate Loading | semi automatic | |||||
| Net Weight | 900kg | 800kg | ||||
| Machine Size (WxLxH)mm |
2330x1050x950 | 1900x1200x1000 | ||||
| Power Supply | single phase:220AC,+ 6%,- 10%, power Consumption:4KW | |||||
| Operation Environment | recommended:21-25ºC, Max.18-26ºC, humidity:40-70% | |||||
3. Major Highlights of EcooGraphixT-800 thermal CTP
1) Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction
Up to 250lpi screening ,2400 dpi or 1200dpi optional
2) Fully qualified: for any thermal non-process plate and process plates.
3) Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.
4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany
5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
6) Long warranty of the machine: 3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.
7) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.
8) Proven Worldwide market leader: (Some highlights installations)
Over 6000 units installed worldwide over past 10 years
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics
Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc.
4. Our Factory
FAQ:
Q1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
Q2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
Q3. What is your warranty for the CTP Laser Head Parts?
One Year
