Desktop Small Quantity Sample Digital Die Cutter 240mm Roll Label

1SET
MOQ
Negotiable
Price
Desktop Small Quantity Sample Digital Die Cutter 240mm Roll Label
Features Gallery Product Description Request A Quote
Features
Specifications
Max Die Cutting Width: 210mm
Speed: 8m/minute(7cm *15cm) SS
Technology: Tungsten Steel Rotary Blade
Substrates: PP,PET ,Paper,Foil
Warranty: One Year
Laminate Width: 240mm
Max Label Length: 300mm
Highlight:

8m/minute Digital Die Cutter

,

Label Intelligent Cutting Machine

,

240mm Roll Label Digital Die Cutter

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: CE
Model Number: Ecoo-VD240
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: about 20days
Payment Terms: L/C, T/T
Supply Ability: 300SET
Product Description

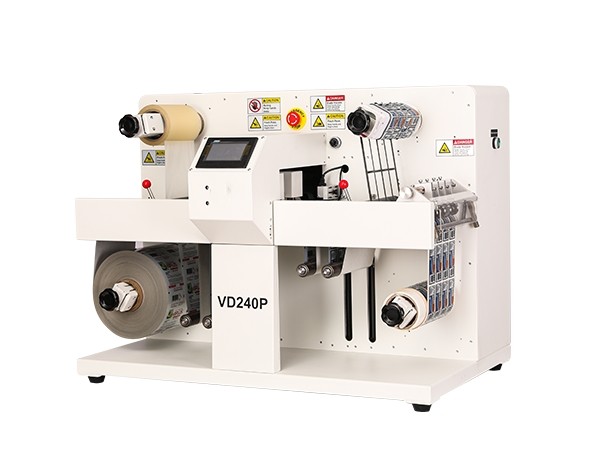

                                                240mm Roll Label Desktop Small Quantity Sample Digital Die Cutter



Introduction:

  With the development of society and people's pursuit of product diversification, more and more products need to be labeled and customized. Label printing company and some enterprises need digital label printers to save printing costs and time costs. Lack of labor force, the operators who are professional for traditional printing machine are becoming less and less, The advantage of digital products are that easy to operate and maintain gradually enter the label printing market, it will replace the traditional printing press step by step. Ecoo Digital Label Printer meets the different needs of various customers with suitable printing costs and lower product prices.



Machine highlights:

Fast and high precision with full-servo motor

Intergrate lamination,die-cutter,waste removal,slitter and rewinder togther

Dual head design automatically adjusts and distributes the cutter

Sick track sensor can track single eye mark or double eye marks

Qr code or digital automatic switch file,automatic access to cut files

Intelligent cutting with trajectory optimization



Parameters and specifications
Maximum winding and unwinding 290mm
Support material width 80-240mm
Maximum label width 230mm
Minimum label length 10mm
Maxmum label length 300mm (maximum label length for plate cutting 2000mm)
Die cutting speed 9m/min
Number of die-cutting machine heads 2
Data interface USB2.0
Die-cutting technology Hard alloy rotary cutting tool
Mould-cutting precision 0.1mm
Die cutting positioning Black Label Single/Double Dot/CCD
Size 910*630*740
Weight 120kg
Power supply 110-127VAC 50-60HZ,1000W 220-240VAC 50-60HZ,1000W
Warranty service One year (excluding vulnerable parts)

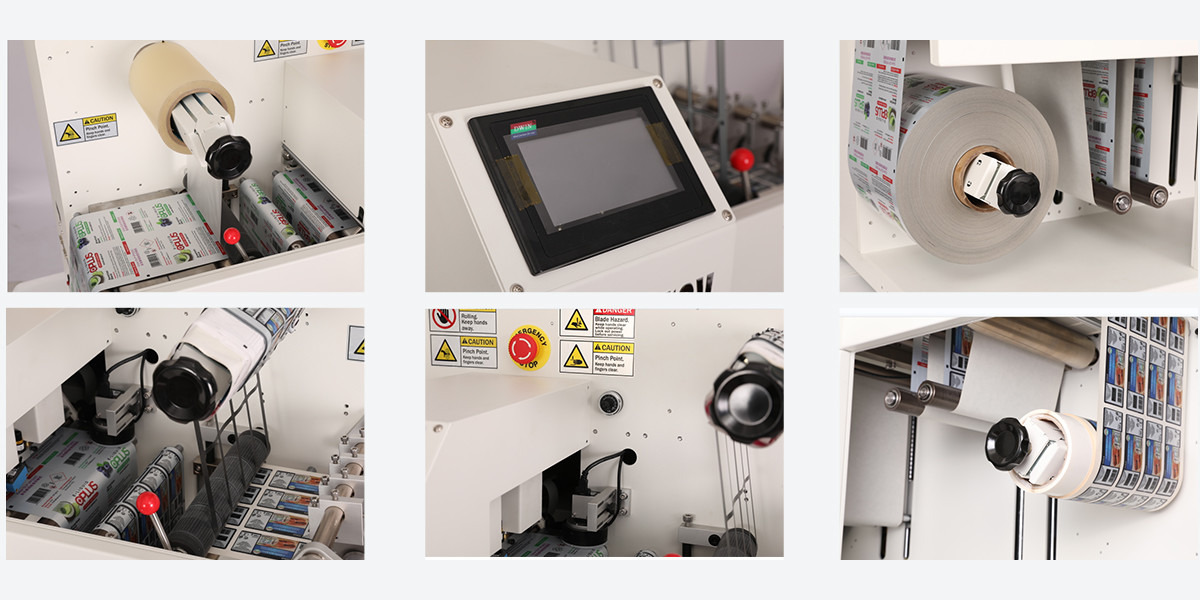

Desktop Small Quantity Sample Digital Die Cutter 240mm Roll Label 0



Desktop Small Quantity Sample Digital Die Cutter 240mm Roll Label 1



Desktop Small Quantity Sample Digital Die Cutter 240mm Roll Label 2

Desktop Small Quantity Sample Digital Die Cutter 240mm Roll Label 3

Desktop Small Quantity Sample Digital Die Cutter 240mm Roll Label 4

Desktop Small Quantity Sample Digital Die Cutter 240mm Roll Label 5



Desktop Small Quantity Sample Digital Die Cutter 240mm Roll Label 6
