Name: Offset Printing Rubber Blanket Sheet Fed 3ply 1.97 / 1.70mm Thickness
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-BL-5000
Price: 50.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Offset Printing Rubber Blanket Sheet-Fed 3ply 1.97/1.70mm Thickness

Application: Strong Universality; Appropriate To Dot And Word Printing.Speed About 15000 Prints/hour.

Construction: 3 Plies

Thickness: 1.97/1.70±0.02mm

Compressible Layer: Microspheres

Hardness: 76-80 Shore A

Elongation: ≤1.0%

Roughness: 0.8-1.0μm

Highlight:

Offset Printing Rubber Blanket

Rubber Blanket Sheet Fed 3ply

1.7mm Offset Rubber Blanket

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO, CE

Model Number: ECOO-BL-5000

Payment & Shipping Terms

Packaging Details: Export Sea Worthy Package In Roll Or Sheet

Payment Terms: L/C, T/T

Supply Ability: 200, 000 Square Meter Per Year

Gallery

Offset Printing Rubber Blanket Sheet Fed 3ply 1.97 / 1.70mm Thickness

Product Description

Sheet-Fed 3ply 1.97/1.70mm Thickness Thickness Offset Printing Rubber Blanket

1. Application
EcooGraphix Printing Blanket is suitable for printing of coated papers, carton boards and the like. So the finish products of whole offset printing would be carton, coated paper, newspaper, magazine, and so on.

2. Characteristic
1) High cost-effective. Our most economic blanket model as well as most popular seller. Could satisfy 85% printing jobs.
2) High compressive ability, which allows many types and printing material in different thickness.
3) Wide range printing, prefer package printing on carton in moderate speed, speed about 9000 prints/hour.
4) Be excellent in the action of absorbing a shock such as a mechanical impact.
5) Prevent the material to be printed from winding around the blanket cylinder.

3. Structure
The printing blanket normally includes 3 layers as below:
A: a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder,
B: a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores
C: an outer-lying void-free layer of an elastomeric layer which faces toward the printing material.

Specification

Construction:
3/4 ply

Thickness:
1.97/1.70±0.02 mm

Color:
Blue/Green

Compressible layer:
Microspheres

Surface:
Micro-ground and polished

Roughness:
0.8-1μm

Hardness:
76-80 Shore A

Elongation:
≤ 1.0%

Tensile strength:
≥ 85

Characteristic:
Moderate compressibility avoids moving image of machine and reduces the edge marking.
Wide-ranging print. Prefer to carton print and full mold print.

Model	ECOO-BL-5000
Construction	3/4 ply
Thickness	1.97/1.70±0.02 mm
Color	Blue/Green
Compressible Layer	Microspheres
Surface	Micro-ground and polished
Compressibility	Microspheres
Roughness	0.8-1μm
Hardness	76-80 Shore A
Elongation	≤1.0%
Tensile strength	≥85 N/mm
Application	Strong universality; Appropriate to dot and word printing. Speed about 15000 prints/hour.
Characteristic	Moderate compressible avoids moving image of machine and reduces the edge marking. Wide-ranging print. Prefer to carton print and full mold print

Offset Printing Rubber Blanket Sheet Fed 3ply 1.97 / 1.70mm Thickness 0

More details

About Blanket Aluminum Bar

We can offer blanket with or without bar, depending on customers' inquiry. $5 will be surcharged for each pair of bars. Please let us know the machine model or bar size if you need blanket with bars.

Offset Printing Rubber Blanket Sheet Fed 3ply 1.97 / 1.70mm Thickness 1

Dimension, Blanket Back printing, Package

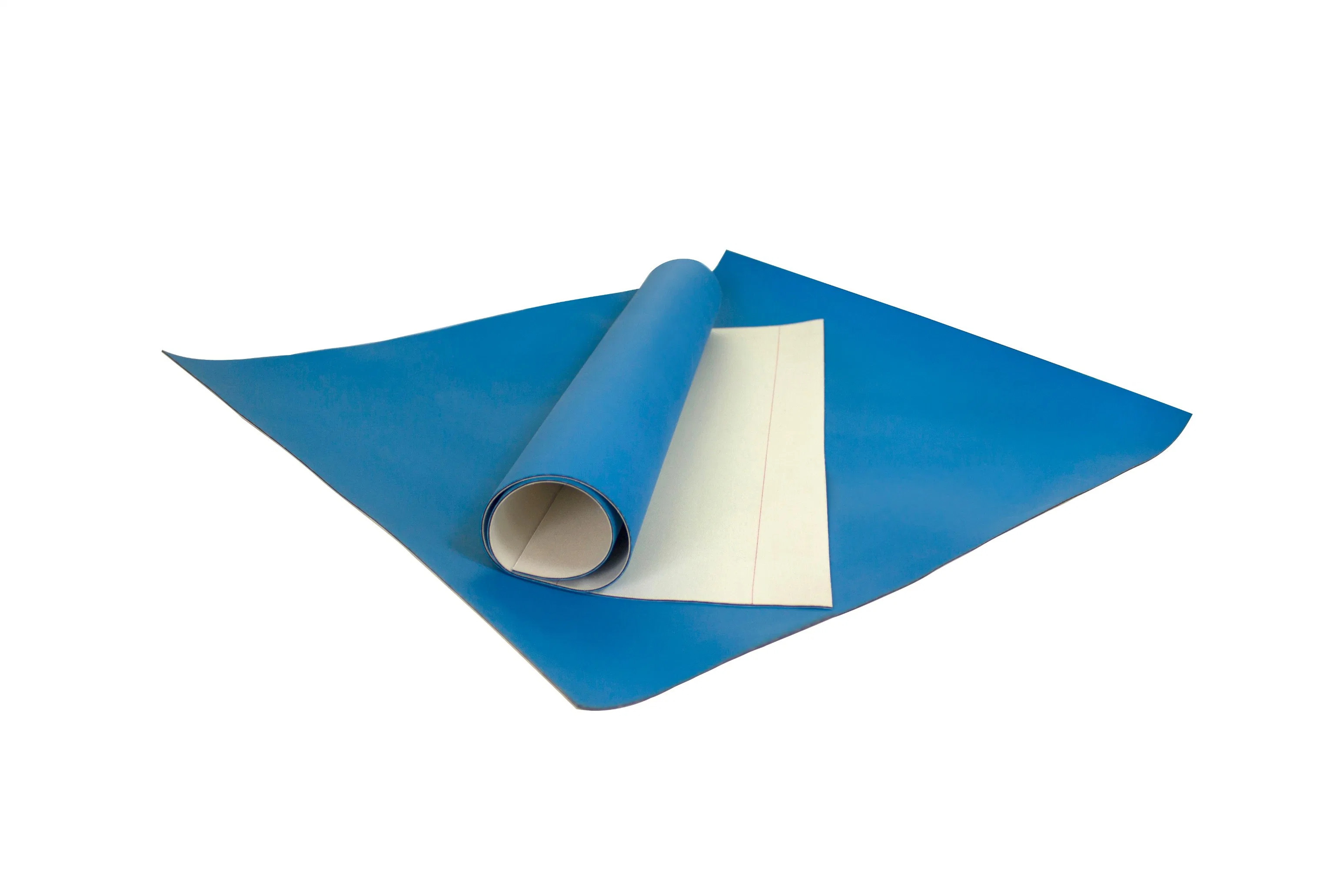

We offer blanket in any sizes in sheet or in roll as below. The blankets will be rolled and packed in polymer bag and carton with enough protective layers. The customer can decide the content of back side, usually the logo or size.

Offset Printing Rubber Blanket Sheet Fed 3ply 1.97 / 1.70mm Thickness 2

Offset Printing Rubber Blanket Sheet Fed 3ply 1.97 / 1.70mm Thickness 3

Attention:

Before installation, please measure the thickness of blanket for adjusting the press accurately;
While installation, please use the constant wrench to tighten gradually;
After installation, please clean the rubber surface and ready for print;
During the use, please often use the special solvent to clean the rubber surface for extending the useful time.

Offset Printing Rubber Blanket Sheet Fed 3ply 1.97 / 1.70mm Thickness 4

FAQ

Q1: Do you offer free sample? How long is the sample time of the shipping? Does the sample fee can be returned?
Since blanket is high value, we did not offer free sample. But we can offer favorable discount. It will take 5 days to prepare sample. If you place bulk order after sample testing, we will refund the sample fee and courier cost.

Q2: How long can I expect to get the sample?
The sample will be ready for delivery in 3-5 days and will be sent via international express such as DHL, UPS, TNT, FEDEX and would be arrived within 3-5 days.

Q4: How about lead time?
The lead time for sample order is 5 days and for bulk order is normally 20 days. If there is special requirement, lead time will be negotiated on detailed case.

Q5. Payment term
Normally, 30% deposit, 70% before shipping.
