Ecoographix Window Patching Machine Automatic For Box

1SET
MOQ
Negotiable
Price
Ecoographix Window Patching Machine Automatic For Box
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Window Patching Machine
Producting Style: 1-Lane Operation, 2-Lane Operation
Outer Diameter: <=500mm
Length A Of The Blank Paper(mm): 100-900, 100-900; 100-420, 100-420
Main Motor Power: 4kw
Width B Of The Blank Paper(mm): 80-1100, 80-530; 100-750, 100-380
Specification: 5600(L)x2000(W)x1500(H)mm;4800(L)x1600(W)x1500(H)mm
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: Ecoo-TC1000
Payment & Shipping Terms
Packaging Details: Standard Exporting Package: Polywood Carton
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/ Year
Product Description

Ecoographix Window Patching Machine Automatic For Box



Features

Ecoo TC-1100, TC-1000 automatic window patching machines are special equipment for carton box,
color
box window lamination; They are advanced models in domestic market. Perfect personalization design
philosophy ensures the machines have the feature of high efficiency, high-precision, high stability and easy operation.


These machines are available for both cardboard and corrugated paper. Adopting servo feeder, flexible version
module of glue print, stable and accurate
diaphragm incision and cross cutting cropped to achieve tissue boxes,
gift boxes,
toy boxes, shirt boxes, milk cartons and other window film lamination.



Specification



Model: TC1100/TC1000



Speed of the machine: ≤200pcs/min; ≤400pcs/min





Length A of the blank paper: 100mm-900mm; 100mm-420mm



Width B of the blank paper: 80mm-1100mm; 80mm-530mm; 100mm-750mm; 100mm-380mm



Length window/lining material C: 80mm-760mm; 80mm-280mm



Width window/lining material C: 30mm-940mm; 30mm-380mm; 30mm-550mm; 30mm-220mm



Window Patching Machine
Model Ecoo-TC1100 Ecoo-TC1000
The producting style 1-lane operation 2-lane operation 1-lane operation 2-lane operation
Length A of the blank paper 100mm-900mm 100mm-900mm 100mm-420mm 100mm-420mm
Width B of the blank paper 80mm-1100mm 80mm-530mm 100mm-750mm 100mm-380mm
Length window/lining material C 80mm-760mm 80mm-760mm 80mm-280mm 80mm-280mm
Width window/lining material C 30mm-940mm 30mm-380mm 30mm-550mm 30mm-220mm
Speed of the machine ≤200pcs/min ≤400pcs/min ≤200pcs/min ≤400pcs/min



Carton
Carton weight 180g/m2-600g/m2
Corrugated ≤1.5mm
Film thickness
PVC, PE, PS 0.05mm-0.3mm
PET 0.05mm-0.2mm
Outer diameter ≤500mm
Inner diameter 70mm-80mm
The size of the machine 5600(L)x2000(W)x1500(H)mm
4800(L)x1600(W)x1500(H)mm
Main motor power 4kw
Total power 22kw

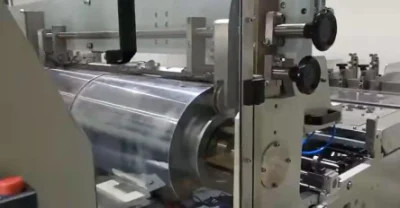

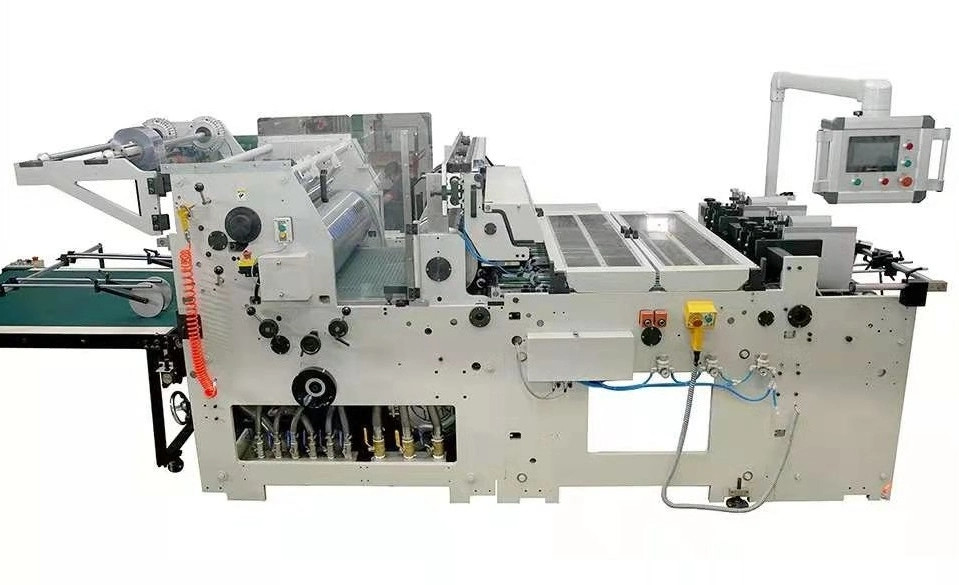

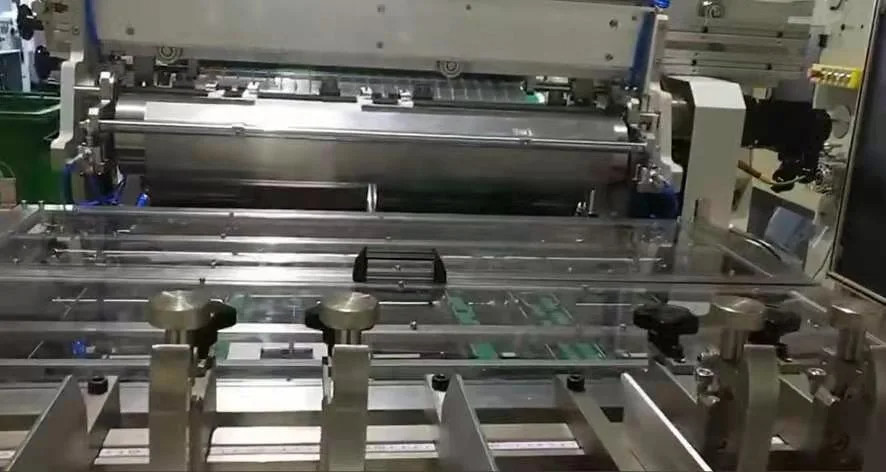

Ecoographix Window Patching Machine Automatic For Box 0

Ecoographix Window Patching Machine Automatic For Box 1





Producing And Packaging




Ecoographix Window Patching Machine Automatic For Box 2



Ecoographix Window Patching Machine Automatic For Box 3



Ecoographix Window Patching Machine Automatic For Box 4



Ecoographix Window Patching Machine Automatic For Box 5



Ecoographix Window Patching Machine Automatic For Box 6





FAQ




Q: What about the Installation and after-sales technician support?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
