Application
Tips
1 Please use proper paper rolls for bag making.
2 Too much dried paper and paper with static electricity cannot be used. Paper with curl cannot be used (for sheet fed machines).Too much twisted cord or soft code cannot be used.
3 In case of using paper with laminated PP film, laminated layer (thickness) should be uniformed.
4 Our recommended specifications of glue at each gluing section should be used(to be controlled in accordance with ambient temperature and humidity).
5 Bag Width and Bottom width have limitation according to combination.
6 Longitudinal glue position is on bag face and 25-30mm gluing space is necessary (optionally inner gusset gluing is possible).
7 In case of using full printing rolls or PP laminated paper, basically bottom gluing part and longitudinal gluing part should be left. In this case,appox. 7mm print overlap or lamination overlap is necessary.
8 Production capacity depends on paper quality,paper weight, with or without print, glue quality, cord quality, bag size,operating environment etc.
9 Specifications are subject to change without notice.
Specification

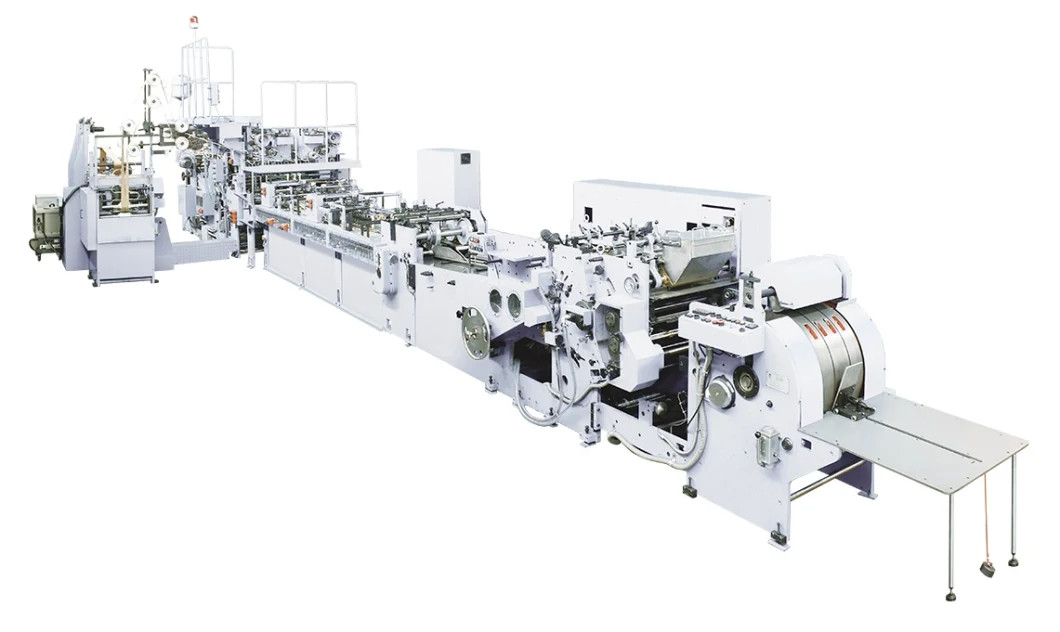

| Automatic Single Paper Square Bottom Bag Making Machine (with Handle) | ||||
| Model | ECOO-22KH | ECOO-35KH | ECOO-45KH | ECOO-50KH |
| Bag width(mm) | 156-260 | 180-350 | 220-450 | 280-550 |
| Bottom width(mm) | 60-130 | 70-160 | 70-170 | 80-230 |
| Tube Length(mm) | 215-395 | 280-540 | 320-560 | 400-740 |
| Sheet Width(mm) | 490-770 | 530-1050 | 610-1260 | 750-1260 |
| Sheet Length(mm) | 265-445 | 340-600 | 380-620 | 460-800 |
| Cardboard length(mm) | 133.4 | 152.4 | 188.4 | 228.6 |
| Cardboard width(mm) | 80-90 | 90-100 | 90-100 | 90-100 |
| Rope Spacing(mm) | 66.7 | 76.2 | 94.2 | 114.3 |
| Rope Height(mm) | 160-180 | 170-185 | 170-175 | 170-190 |
| Filp Width(mm) | 40-50 | 40-60 | 40-60 | 40-60 |
| Power Consumption | 20 | 27 | 30 | 34 |
| External Size(W*L*H)(kw) | 205*1412*270 | 205*1468*271 | 232*1468*271 | 232*1787*316 |
| Machine size(W*L*H)(cm) | 134*541*269 | 134*541*269 | 134*541*269 | 134*541*269 |
| Max. Speed(pcs/min) | 70 | 70 | 70 | 60 |

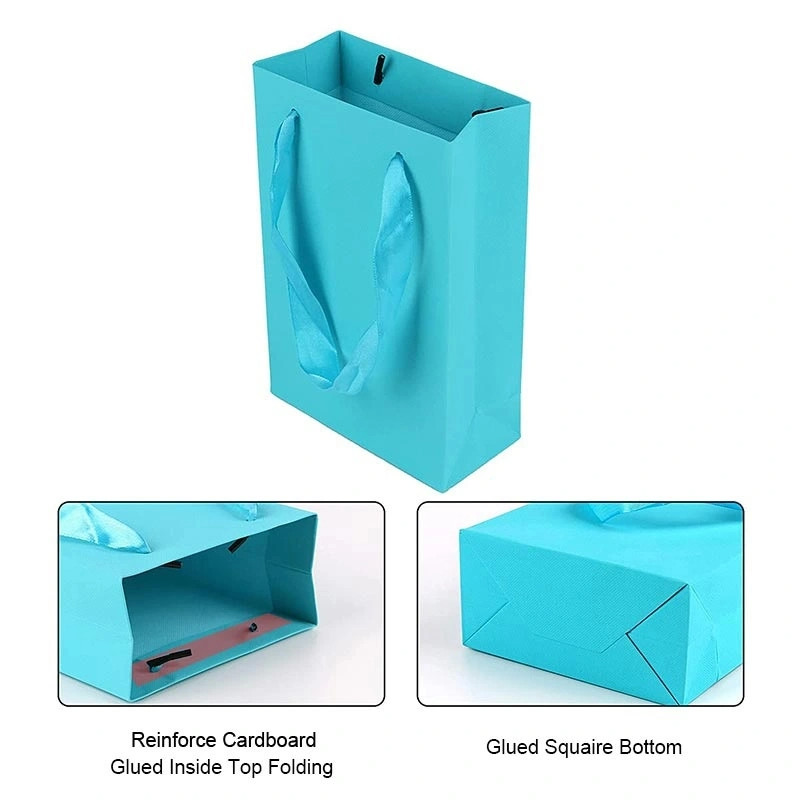

Bag types and its making machine:

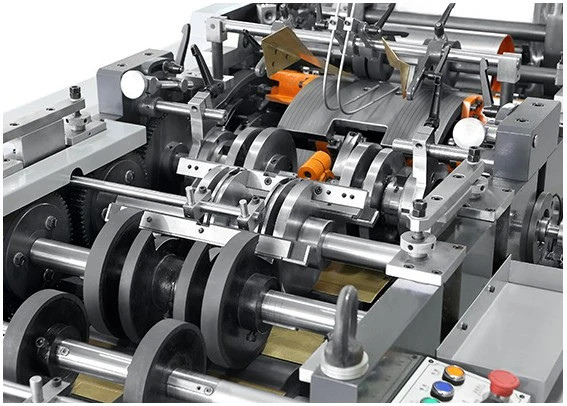

Machine Spare Parts
1. This machine puts a handle rope between two pieces of paper and fixes it together with hot melt glue as a hand grip. The handle material can be twisted paper rope,twisted p.p.rope,acrylic resin rope,etc. The handle making machine is installed parallel. Organ line adjustment and pressure adjustment are controlled by a digital display, greatly reducing the time for adjusting and improved production efficiency.
2. Pasting handles that made by handle making machine or cardboard to the mouth of the main sheet paper and folding.This is pasting unit for handles or cardboard (double pasting style) It can automatically calculate the quantity and more convenient to collect bags.
3. This unit punches two holes as well as four holes,normally there are 3 kinds of holes diameters, 4,6 and 8mm. And holes distance included two kinds, 80 to 200mm. It's possible to set up a banana type holes die cutting system as option. Only needs to adjust one side of the cylinder, the other two sides will be adjusted automatically. Greatly reduced adjustment time and improved production efficiency.
Producing And Packaging
FAQ
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.
3. What is your warranty?
Normally 1 year.
4. What is the Lead Time?
Usually 60 days, and we will try our best to meet your demands.
5. Can you also supply the software?
Yes, we offer copyrighted software.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
