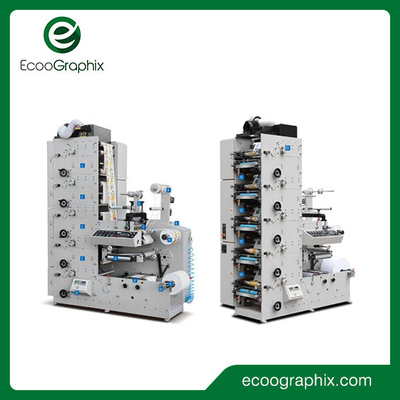

Automatic Flexographic Label Printer With One Die-cutting Station
Features
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.

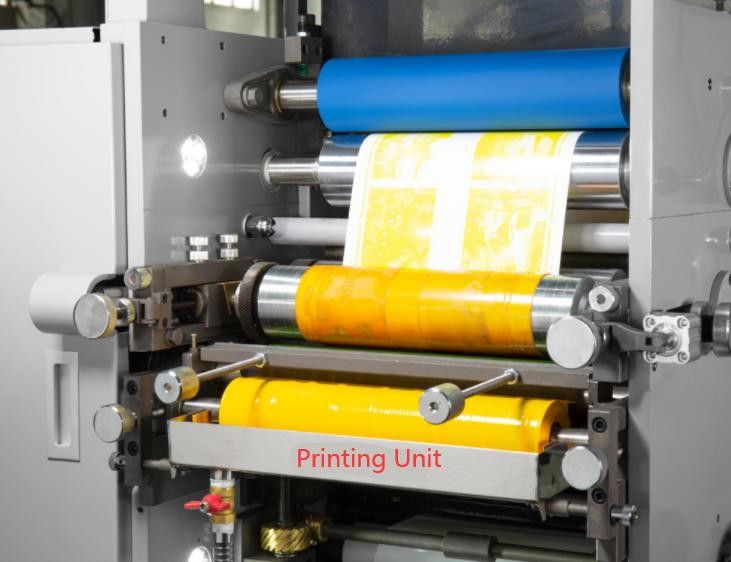

3. Each printing unit adopts 360°plate adjustment.
4. Each printing unit equips with hot air dryer.
5. This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
6. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
7. Main motor use inverter to adjust stepless speed.
8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing adhesive label.
Specifications
| Automatic Flexographic Label Printing Machine | |
| Model | Ecoo-320 |
| Printing speed | 60 m/min |
| Printing color | 1-6 colors |
| Max. web width | 320mm |
| Max. printing width | 310mm |
| Max. unwinding diameter | 600mm |
| Max. rewinding diameter | 600mm |
| Printing length | 177.8-355.6mm |
| Precision of chromatography | ±0.1mm |
| Dimensions (L*W*H) | 2000x1100x2600mm |
| Machine weight | about 2150kgs |
Main Configuration
| MAIN CONFIGURATION | |||
| Description | Brand | Quantity | Origin |
| Printing roller | 3 sets | China | |
| Anilox roller | Auclean/Laser | 1 set | China |
| Unwind tension controller | Mitsubishi | 1 set | Japan |
| Rewind tension controller | ZXTEC | 1 set | China |
| Main motor | Wannan | 1 set | China |
| Transducer | Mitsubishi | 2 sets | Japan |
| Magnetic power brake/cluth | Ningxia | 3 sets | China |
| Electromagnetic valve | Airtac | 2 set | Taiwan |
| Inverter | Schneider | 1 set | Frence |
| AC Contactor | Schneider | 2 pcs | France |
| Time relay | C-LIN | 1 pc | China |
| Solid relay | Omron | 6 pcs | Japan |
| Micro relay | Weidmiiller | 2 pcs | Germany |
| Temperature Controller | Yuyao | 6 pcs | China |
| Air switches | Siemens | 8 pcs | Germany |
| Low pressure wiring | Schneider | All | France |
| All the bearing | NSK/CHINA | JAPAN/CHINA | |
Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
