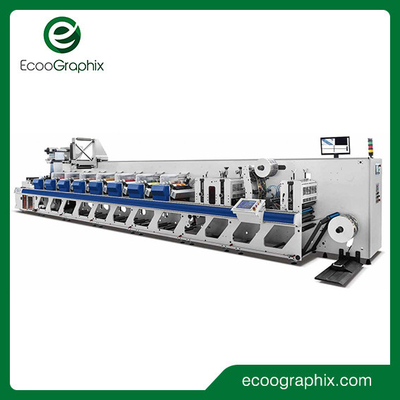

High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen

1 SET
MOQ
Negotiable
Price
High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen
Features Gallery Product Description Request A Quote
Features
Specifications
Classification: Flexo Printing Machine
Max. Printing Speed: 180m/min
Max. Web Width: 360mm; 470mm; 670mm
Max. Printing Width: 350mm; 450mm; 650mm
For 8 Colors, 3 Die Cutting Stations: Yes; Yes; No Die Cutting Stations
Printing Length: 241.3-603.25mm; 241.3-603.25mm; 304-730.25mm
Max. Unwinding Diameter: 900mm; 900mm; 1000mm
Max. Rewinding Diameter: 900mm; 900mm; 1000mm
Dimensions (L×W×H): 10.83x1.56x1.52m; 10.83x1.68x 1.52m; 10.0×1.88×1.56m
Highlight:

Servo Controlled Modular Flexo Printer

,

8 Colors Flexo Printer

,

Movable Touch Screen Flexo Printing Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: Ecoo-ZJR350/ Ecoo-ZJR450/ Ecoo-ZJR650
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 25 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description



  High Speed Fully Servo Controlled Modular Flexo Printing Machine












 Features





The whole machine adopts the latest servo control system from Germany and each printing unit is driven by independent servo motor. There are 23 servo motors in total for 8color machine which ensure the accurate registration during high speed running.



The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduce the maintenance.



Fast and easy Pressure adjustment of printing or ink transferring: Printing roller run by bearer, it's not necessary to adjust the pressure when change the roller, or at most fine adjust for special job.



Anvil roller equips with water chiller, it's good for lm material as well.



Suitable for printing variety lm material, such as PET, OPP, CPP, PP and so on.










specification





Automatic Flexographic Label Printing Machine
Model Ecoo-ZJR350 Ecoo-ZJR450 Ecoo-ZJR650
Max. Printing speed 180m/min 180m/min 180m/min
Printing color 4-12 colors 4-12 colors 4-12 colors
Max. web width 360mm 470mm 670mm
Max. printing width 350mm 450mm 650mm
Max. unwinding diameter 900mm 900mm 1000mm
Max. rewinding diameter 900mm 900mm 1000mm
Printing length 241.3-603.25mm 241.3-603.25mm 304-730.25mm
Dimensions (L*W*H) 10.83m x 1.56m x 1.52m 10.83m x 1.68m x 1.52m 10.0m*1.88m*1.56m
for 8colors, 3 die cutting stations for 8colors, 3 die cutting stations No die cutting stations


















 Details





High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 0 High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 1
Sleeve UV Dryer and Anvil Roller with Water Chiller







High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 2 High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 3
Movable Turn Bar Matrix Unit





High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 4 High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 5
Movable Touch Screen Die Cutting Roller Lifter




























































Sleeve
The printing roller adopts sleeve system which is light, easy, convenient and fast to change. Since there is no gear on the cylinder ,it largely improves the printing quality and reduces the maintenance.

UV Dryer and Anvil Roller with Water Chiller
UV curing is equipped with water chiller, which lowers the temperature of flexo plate while printing. It reduces the friction between plate and material, improves the quality of printing and enables the machine to print variable film material, such as PP, PET, BOPP, etc.

Movable Turn Bar
When the material needs to be printed on both sides, it can be completed at one time by turn bar.

Matrix Unit
It is snowball matrix device with a good performance, the speed is synchronized with printing.

Movable Touch Screen
Touch LCD screen, faster CPU, 15inch operating display. The rich human-computer dialogue system, multi-guide inspecting display interface, instant alarm signal, makes operation much easier and more efficient.

Die Cutting Roller Lifter
It is an electric lifting device for changing magnetic rollers, convenient and fast.


Note:*=Options

*Hot Air Dryer(Option)
Using wind knife drying method, good effective for water-base ink and solvent ink drying.

*Movable Cold Stamping (Option)
It can be movable on the railway of the machine, high speed and efficient.

*Slitting Unit (Option)
In order to improve production speed, pneumatic knife can do slitting function on line. The slitting pressure is adjustable.












Producing And Packaging




From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 6





High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 7



High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 8



High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 9



High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 10



High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 11












Certificates





High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 12

High Speed Fully Servo Controlled Modular 8 Colors Flexo Printer With Movable Touch Screen 13












 FAQ







 Q1: What are your main products ?


A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.





 Q2: Where is your factory ?


A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!





 Q3: How long is the lead time ?


A: The lead time is normally 30 days. We can accelerate for emergency cases.





 Q4: Is there any certification for your machine ?


A: Yes, all our machines have been certified by SGS and CE.





 Q5: How long is the warranty period ?


A: Ecoographix guarantees 1 year of warranty for laser head and spare parts.





 Q6: What is your normal payment term ?


A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.









 Q7: What about the installation and after-sales technician support ?


A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.



These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
