4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: LED Technology Digital Label Printer
Printing Speed: Up To 7.26 Meters/Min (30FT/Min)
Print Technology: 4 Color (Cmyk) LED Technology
Substrate Types: Paper: Paper, High Glossy Paper, Matt Paper, Film And Etc.
Media Width: 304mm
Print Width: Min 210mm Max 308mm
Print Length: Max 1200mm Min 98mm
Print Quality: 1200X2400dpi
Specification: 1400*810*1600mm
High Light:

LED Technology Digital Label Printing Machine

,

Digital Label Printer 304mm

,

7.26 Meters/Min Digital Label Printer

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-LL320C
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Payment Terms: L/C, T/T
Supply Ability: 500 Sets Per Year
Product Description

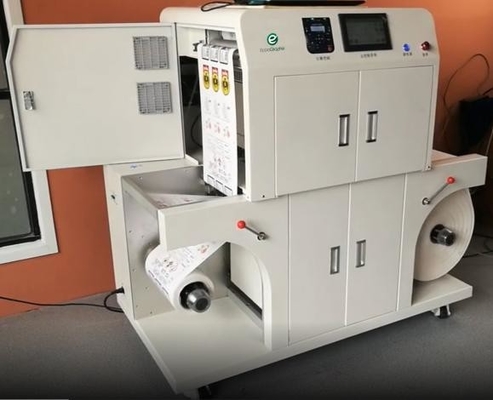

DIGITAL LABEL PRINTING MACHINE - LL320C



4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width 0





With the development of society and people's pursuit of product diversification, more and more products need to be labeled and customized.

Label printing company and some enterprises need label printers with simple printing procedures and low switch printing costs to handle more and more short label pritning jobs.



Thus, digital printers, featuring for its all digital and no need of flexo plate, is gaining popularity.

This LL320 is a small and easy, roll to roll, laser technology label printer. It uses toner and cartridge and handles CMYK colors. You will find more details as below.






Specification



Model Ecoo-LL320
Print speed Up to 7.26 meters/min (30ft/min)
Print technology 4 Color (CMYK) LED technology
Preparing time 533MHz
Printer processor less than 28s
Data port (Standard)10BASE-T/100BASE-TX, USB2.0;(Options) internet 1000BASE-T, IEEE1284-B
Media width 304mm
Print width Min 210mm Max 308mm
Print length Max 1200mm Min 98mm
Substrate types Paper: Paper, High glossy paper,Matt paper; Film: PET, PP, PE, GHS..
All of media was tested in special environment, not tested media possible can't be used
Print quality 1200x2400dpi
Toner supplies CMY-18500sheets (A4, 5% coverage rate) K-26000 sheets (A4, 5%
coverage rate);( Rated according to ISO/IEC 19798 guidelines)
Drum supplies CMYK-100000 (print runs according to the operating cycle, Medium size and the direction to change)
Size 1400*810*1600mm
Weight Print engine:423KGS
Operating environment Temperature:20ºC-23ºC,Humidity: 45-55% RH
Power supply 110-127 VAC,50-60Hz@2800W,220-240 VAC ,50-60Hz@2800W
Power consumption (AC220-240V) sleep 75W;waiting 100W;running 1100W
Monthly running job Max.20000sqm (advice)
Warranty 1 year (excluding high consumable parts)





4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width 1


SOFTWARE FEATURES:

The Color DLP VP320C digital label priting machine overturns digital label printing line. She has best advanced LED production printing engine. Vorey have paid efforts integrate with much year experience. We get high efficiency and low cost printing machine. Most of printing company and print shop can have it and create a wonderful wealth.

• LED low temperature image technology
• CMYK 4 colors
• Printing resolution 1200*2400 dpi
• Print speed 7.26m per minute
• Print width 304mm

4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width 2

Printing Engine

LL320 uses Xeror printing engine togetheh with our system to achieve high efficiency and low cost printing cost.
Its roll-to-roll and computer-to-label designs make this machine perfect for short printing jobs and some sampling work or for new entry companies.

• CMYK 4 colors
• Print width 304mm
• LED low temperature image technology
•Print speed 7.26m per minute
• Printing resolution 1200*2400 dpi

4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width 3

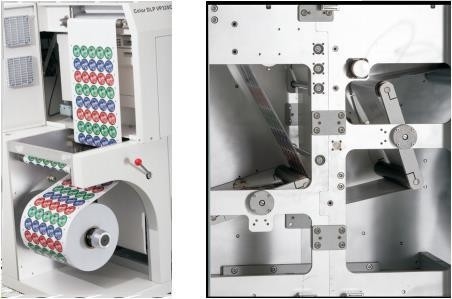

Auto web guide tension system:
1 For tension adjustment of all media
2 Auto calculate the length of feeding
3 Ultrasonic detect edge of media to avoid media loading twisty
4 Avoid printing image to stretched and twisted
5 Increase the lifespam of engine

4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width 4

Consumbales:
Toner K: print 26 sheets A4 with 5% coverage
Toner CMY: print 18.5K sheets A4 with 5% coverage
Drum: 100K sheets A4
Waste box: 300k sheets A4
Transfer cleaner: 200k sheets A4
Transfer roller: 200k sheets A4
Developer CMYK: 480k sheets A4
Developer house: 480k sheets A4
Fuser: 480k sheets A4
Transfer belt Assy: 480k sheets A4


Producing And Packaging





4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width 5



4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width 6



4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width 7



4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width 8




More Details



4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width 9



4 Color Digital Label Printer Up To 7.26 Meters/Min 1200X2400dpi 304mm Media Width 10

FAQ




1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.


2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?
One year for machine and printing head if use our ink. One year for machine only if do not use our ink.

4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.

5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge
and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
