Flexographic UV Label Printing Machine 60 M/Min

Flexographic UV Label Printing Machine 60 M/Min
Features Gallery Product Description Request A Quote
Product Name: Flexographic Label Printing Machine
Printing Color: 6 Colors
Application: Flexible Packaging Printing
Printing Speed: 60 M/Min
Max. Web Width: 320mm
Max. Printing Width: 310mm
Max. Unwinding Diameter: 600mm
Max. Rewinding Diameter: 600mm
Printing Length: 177.8-355.6mm
Specification: 2000x1100x2600mm
High Light:

Flexographic Automatic Labeling Machine


6 Colors Flexographic Label Printing Machine


60 M/Min UV Label Printing Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-320
Payment & Shipping Terms
Packaging Details: Standard Exporting Package: Polywood Carton
Payment Terms: L/C, T/T
Supply Ability: 200 Sets/ Year
Product Description

Automatic Flexographic Label Printing Machine



Product Description


Main Features


1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.

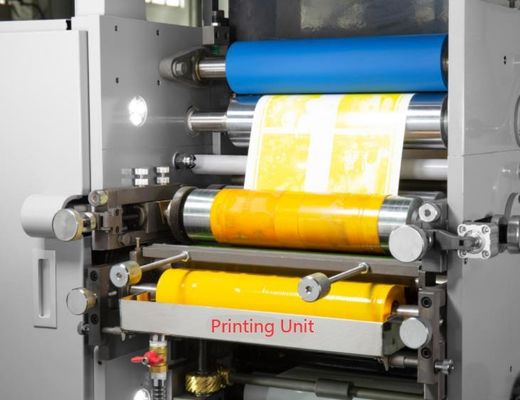

3.Each printing unit adopts 360°plate adjustment.
4.Each printing unit equips with hot air dryer.
5.This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
6. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
7. Main motor use inverter to adjust stepless speed.
8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing adhesive label.






                                    Model                                                                         Ecoo-320
Printing speed 60 m/min
Printing color 1-6 colors
Max. web width 320mm
Max. printing width 310mm
Max. unwinding diameter 600mm
Max. rewinding diameter 600mm
Printing length 177.8-355.6mm
Precision of chromatography ±0.1mm
Dimensions(L×W×H) 2000x1100x2600mm
Machine weight about 2150kgs



Machine Spare Parts


Description Brand Quantity Origin
Printing roller   3sets China
Anilox roller Auclean/Laser 1set China
Unwind tension controller Mitsubishi 1set Japan
Rewind tension controller ZXTEC 1set China
Main motor Wannan 1set china
Transducer Mitsubishi 2sets Japan
Magnetic power brake/cluth Ningxia 3sets China
Electromagnetic valve Airtac 2 set Taiwan
Inverter Schneider 1set Frence
AC Contactor Schneider 2pcs France
Time relay C-LIN 1pc China
Solid relay Omron 6pcs Japan
Micro relay Weidmiiller 2pcs Germany
Temperature Controller Yuyao 6pcs China
Air switches Siemens 8pcs Germany
Low pressure wiring Schneider All France
All the bearing NSK/CHINA   JAPAN/CHINA



Producing And Packaging


Flexographic UV Label Printing Machine 60 M/Min 0


Flexographic UV Label Printing Machine 60 M/Min 1


Flexographic UV Label Printing Machine 60 M/Min 2





More Details


Flexographic UV Label Printing Machine 60 M/Min 3


Flexographic UV Label Printing Machine 60 M/Min 4




1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

2.Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?
Normally 1 year.

4. Can you also supply the software?

5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
