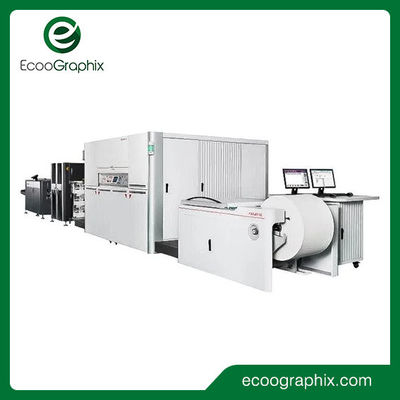

Ecoographix High Speed Digital Inkjet Printing Machine For Book Newspaper

Ecoographix High Speed Digital Inkjet Printing Machine For Book Newspaper
Features Gallery Product Description Request A Quote
Product Name: Digital Inkjet Printing Machine For Book Newspaper
Max. Media Width: 560mm
Resolution: 600dpi*600dpi/2bit,600dpi*1200dpi/2bit(Half Speed)
Max. Printing Width: 540mm
Print Head: Kyocera
Specification: 16400mm*5800mm*3000mm
High Light:

Newspaper Digital Inkjet Printer


Book Digital Inkjet Printing Machine 540mm


High Speed Digital Inkjet Printer

Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO9000, CE
Model Number: ECOO P5600
Payment & Shipping Terms
Packaging Details: Standard Wooden Case
Payment Terms: L/C, , T/T
Supply Ability: 200 Sets/Year
Product Description

Product Description

Brief Introduction:

Have you or your customers been struggling the pain points in traditional offset book and periodical pringting?
ECOO-P5600 would be your answer. More Affordable Inkjet POD Solution in the World!

Market proved drop-on-demand industrial ink-jet head technology
Total roll-to-sheet print-on-demand ink-jet print solution
Short-run mono-color duplex or dual-color duplex book and periodical printing
Flexible deployment of structure, easily expand to dual-color duplex or spot color
Sales price competitivity as affordable as offset press

Ecoographix High Speed Digital Inkjet Printing Machine For Book Newspaper 0


Model Ecoo-P5600 Ecoo-P4400
Inkjet head Drop-on-Demand Piezoelectric, powered by Kyocera
Resolution 600dpi*600dpi/2bit, 600dpi*1,200dpi/2bit (on half speed)
Max. printing speed 100m/min
Max. media width 560mm 440mm
Max. printing width 540mm 432mm
Printing mode Monochrome duplex(Pxx12), dual-color simplex(Pxx21); Dual-color duplex(Pxx22)
Media feeding mode Roll to roll, with inline buffer, cutter and stacker
Media thickness 45 gsm - 165 gsm
Media type Offset paper, newspaper, inkjet coated paper
Ink Water based pigment ink, dye ink
Dry method Infrared dryer (automatic adjustment on printing speed)
Digital front-end Founder EagleJet™inkjet imaging system (Windows Server based)
Optional Image inspection, folding (3rd party)
Operating environment Temperature: 22.5ºC-27.5ºC, humidity:40%-80%(air conditioning recommend )
AC power Mechanical platform: 380 VAC / 15 KW max
Dryer system: 380 VAC / 1-35 KW
Controller system: 220 VAC / 6KW max
Installation space 16,400*5800*3000mm


Core Technologies
Inkjet printhead control
Circulating ink supplying control
Automatic printhead self-clean system
Fast-speed paralleling RIP
Variable data processing
Special multiple grade-level FM screening for inkjet

Practical printing speed: 99 m/min
Power-on to ready time: <20 minutes
Daily maintenance time: <20 minutes
Daily running time: >20 hours
63,000 A4 prints per hour on average speed at 85 m/min
Average sales: lower than laser and approaching to offset
Competitive balance: 2,000-3,000 copies comparing to offset

Key features
64-bit system, more memory space, higher performance, up to 1,600 A4 prints per minute
Independent and stable tension control, to avoid the damage of printhead caused by the moving paper in unstable tension
Optimized structure of printhead module, to simplify the services of manufacture, installation and maintenance
Re-designed and patented paper feeding route, to get to the root of the problem of hurting the printhead module caused by high temperature air while printing back face
Implemented QR code to monitor the correction of whole job, including JobID, Copy#, Page#, Front/Back, etc.
Re-designed drying system, narrow spectrum, to save power consumption by 50%
Independent and centralized ink supplying cabin (from main press), easy to deploy and extend the ink supplying ability for more press
Untouched self-clean system, longer life of printhead
Remote diagnosis and license management via internet
Support multiple languages: Chinese, English, Korean


Producing And Packaging


Ecoographix High Speed Digital Inkjet Printing Machine For Book Newspaper 1


Ecoographix High Speed Digital Inkjet Printing Machine For Book Newspaper 2



1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing,
including prepress, pressroom and post press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?
One year for machine and printing head if use our ink. One year for machine only if do not use our ink.

4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.

5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge
and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
