CMYK Digital Label Printer LED Technology 1200X2400dpi 304mm Media Width

1 SET
MOQ
Negotiable
Price
CMYK Digital Label Printer LED Technology 1200X2400dpi 304mm Media Width
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: CMYK Digital Label Printer
Printing Speed: Up To 7.26 Meters/Min (30FT/Min)
Print Technology: 4 Color (Cmyk) LED Technology
Substrate Types: Paper: Paper, High Glossy Paper, Matt Paper, Film And Etc.
Media Width: 304mm
Print Width: Min 210mm Max 308mm
Print Length: Max 1200mm Min 98mm
Print Quality: 1200X2400dpi
Specification: 1400*810*1600mm
High Light:

LED Technology Digital Label Printer

,

CMYK Label Printing Equipment

,

304mm Digital Label Printer

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-VP320C
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Payment Terms: L/C, T/T
Supply Ability: 500 Sets Per Year
Product Description

CMYK DIGITAL LABEL PRINTER - VP320C




Product Description

INTRODUCTION:

With the development of society and people's pursuit of product diversification, more and more products need to be labeled and customized. Label printing company and some enterprises need digital label printers to save printing costs and time costs. Lack of labor force, the operators who are professional for traditional printing machine are becoming less and less, The advantage of digital products are that easy to operate and maintain gradually enter the label printing market, it will replace the traditional printing press step by step. Ecoo Digital Label Printer meets the different needs of various customers with suitable printing costs and lower product prices.

DIGITAL LABEL PRINTING:



In order to get a high quality printing, Ecoo researched and developed typical and easy a printer software for VP320C. This software has friendly interface, and easy to understand. Automatically edit jobs together, integrated with programmatic printing. PhaserMatch 5 color management system was nested to printing software. You can get best image label and finish the jobs easily.

-It running must be with connecting machine
-Easy user operation interface and media management system
-Rotate, zoom, minor and nest your labels and jobs freely
-Calculate the toner using volume, label cost and job cost
-Color management with RIP
-Second track printing
-Cycling printing for many pages in job
SOFTWARE FEATURES:

The Color DLP VP320C digital label priting machine overturns digital label printing line. She has best advanced LED production printing engine. Vorey have paid efforts integrate with much year experience. We get high efficiency and low cost printing machine. Most of printing company and print shop can have it and create a wonderful wealth.

• LED low temperature image technology
• CMYK 4 colors
• Printing resolution 1200*2400 dpi
• Print speed 7.26m per minute
• Print width 304mm

Auto web guide tension system:

1 For tension adjustment of all media
2 Auto calculate the length of feeding
3 Ultrasonic detect edge of media to avoid media loading twisty
4 Avoid printing image to stretched and twisted
5 Increase the lifespam of engine


Specification



Specification Of Digital Label Pinter Ecoo-VP320



Print speed: Up to 7.26 meters/min (30ft/min)



Media width: 304mm



Print width: Min 210mm Max 308mm



Print length: Max 1200mm Min 98mm



Substrate types: Paper: Paper, High glossy paper,Matt paper; Film: PET, PP, PE, GHS..



Size: 1400*810*1600mm



Weight: Print engine:423KGS

Consumbales:

Toner K: print 26 sheets A4 with 5% coverage
Toner CMY: print 18.5K sheets A4 with 5% coverage
Drum: 100K sheets A4
Waste box: 300k sheets A4
Transfer cleaner: 200k sheets A4
Transfer roller: 200k sheets A4
Developer CMYK: 480k sheets A4
Developer house: 480k sheets A4
Fuser: 480k sheets A4
Transfer belt Assy: 480k sheets A4

Model Ecoo-VP320
Print speed Up to 7.26 meters/min (30ft/min)
Print technology 4 Color (CMYK) LED technology
Preparing time 533MHz
Printer processor less than 28s
Data port (Standard)10BASE-T/100BASE-TX, USB2.0;(Options) internet 1000BASE-T, IEEE1284-B
Media width 304mm
Print width Min 210mm Max 308mm
Print length Max 1200mm Min 98mm
Substrate types Paper: Paper, High glossy paper,Matt paper; Film: PET, PP, PE, GHS..
All of media was tested in special environment, not tested media possible can't be used
Print quality 1200x2400dpi
Toner supplies CMY-18500sheets (A4, 5% coverage rate) K-26000 sheets (A4, 5%
coverage rate);( Rated according to ISO/IEC 19798 guidelines)
Drum supplies CMYK-100000 (print runs according to the operating cycle, Medium size and the direction to change)
Size 1400*810*1600mm
Weight Print engine:423KGS
Operating environment Temperature:20ºC-23ºC,Humidity: 45-55% RH
Power supply 110-127 VAC,50-60Hz@2800W,220-240 VAC ,50-60Hz@2800W
Power consumption (AC220-240V) sleep 75W;waiting 100W;running 1100W
Monthly running job Max.20000sqm (advice)
Warranty 1 year (excluding high consumable parts)



More Details

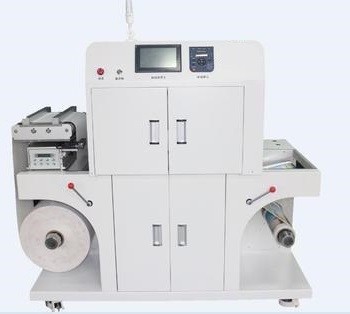

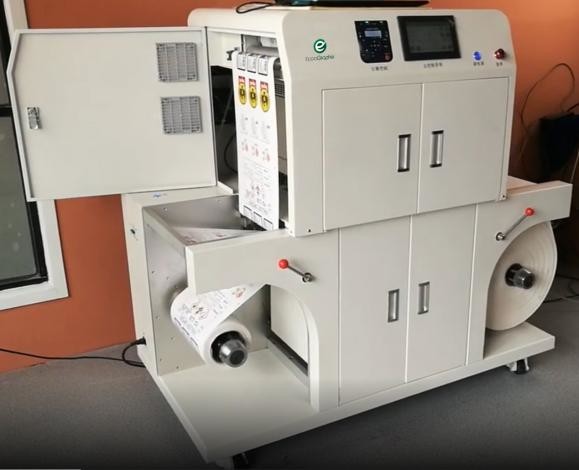

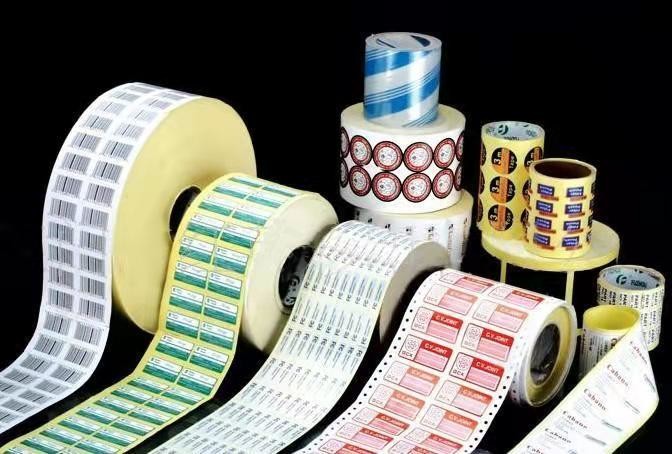

CMYK Digital Label Printer LED Technology 1200X2400dpi 304mm Media Width 0



CMYK Digital Label Printer LED Technology 1200X2400dpi 304mm Media Width 1



CMYK Digital Label Printer LED Technology 1200X2400dpi 304mm Media Width 2



CMYK Digital Label Printer LED Technology 1200X2400dpi 304mm Media Width 3



FAQ




Q: What about the Installation and after-sales technician support?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
