| Model | ECOO-BL-H |
| Construction | 4/3 ply |
| Thickness | 1.97/1.70±0.02mm |
| Color | Blue |
| Compressible | Microspheres |
| Surface | Micro-ground and polished |
| Roughness | 0.7 - 1.0μm |
| Hardness | 78 - 82 Shore A |
| Elongation | ≤ 0.9% |
| Tensile strength | ≥ 90 |
| Suitable Printing Segment | Publishing, Plastic, Metal and Packaging Printing |
| Application | Strong universality Prefer to package print Speed about 12000 prints/hour |
| Characteristic | Moderate compressible avoids moving image of machine and reduces the edge marking. Wide-ranging print. Prefer to carton print and full mold print. |
Features
High cost-effective. Our most economic blanket model as well as most popular seller.
Could satisfy 85% printing jobs.
High compressive ability, which allows many types and printing material in different thickness.
Wide range printing, prefer package printing on carton in moderate speed.
Be excellent in the action of absorbing a shock such as a mechanical impact.
Prevent the material to be printed from winding around the blanket cylinder.
Structure
The printing blanket normally includes 3 layers as above:
A: a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder
B: a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores
C: an outer-lying void-free layer of an elastomeric layer which faces toward the printing material
Packaging And Maintenance
Aluminum Bar
We can offer blanket with or without bar, depending on customers' inquiry.
$5 will be surcharged for each pair of bars.
Please let us know the machine model or bar size if you need blanket with bars.
Packaging

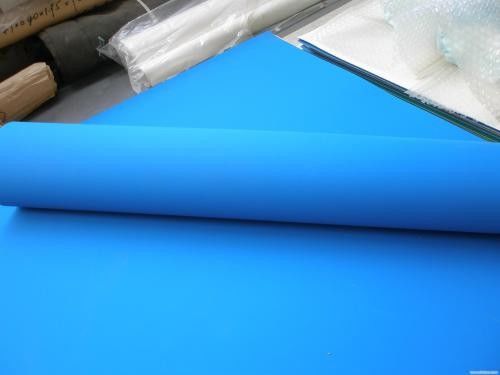

Blanket In Roll
Blanket In Sheet
We offer blanket in any sizes in sheet or in roll as above.
The blankets will be rolled and packed in polymer bag and carton with enough protective layers.
The customer can decide the content of back side, usually the logo or size.
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Maintenance
Clean the blanket with fast volatile organic solvents.
Clean rolls when ink color changing or refilling.
Release the blanket off the cylinder when the printing machine stopped for a long time.
New blankets should be stored in dry and cool place covered with dark layer.
Tips
1) Where does a blanket use in printing?
See below image.
The blanket is used to cover the blanket cylinder
(the intermediate cylinder) in each color unit within printing machine.
2) How does it work?
Simply speaking, the blanket is to transfer the image from plate onto paper.
The image is "offset" onto the blanket and then to paper.
The blanket created a smoother image on most types of paperand canprint on rough or heavy stocks as well as other media.
Most offset presses use this lithographic method.
Certificates
FAQ
Q1: Do you offer free sample? How long is the sample time of the shipping?
Does the sample fee can be returned ?
Since blanket is high value, we did not offer free sample. But we can offer favorable discount. It will take 5 days to prepare sample.
If you place formal bulk order, we will refund the sample fee and courier cost.
Q2: About the sample what is the cost of transportation ?
The freight depends on weight, packing size and your country or province region, etc.
Q3: How long can I expect to get the sample ?
The sample will be ready for delivery in 3-5 days and will be sent via international express
such as DHL, UPS, TNT, FEDEX and would be arrived within 3-5 days.
Q4: Where is your factory ?
Our factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
