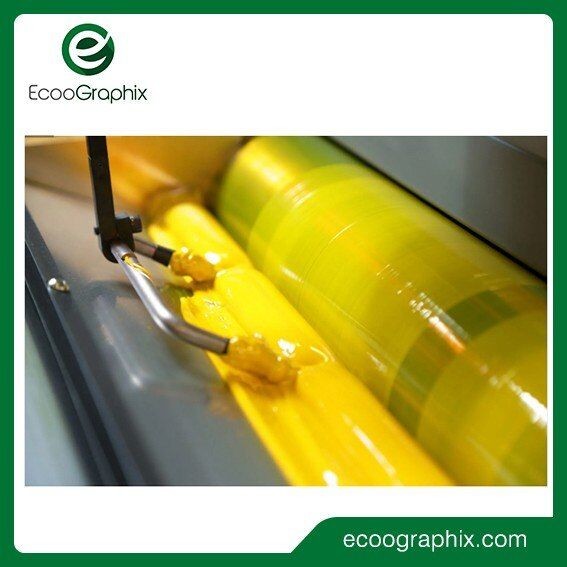

High Gloss Sheet-Fed Offset Ink For Offset Printing Machine
Model: INK-F
This product is suitable for printing packaging, advertisement, label, high-quality brochures and decorating products on
art paper, coated paper, offset paper, cardboard, etc., especially suitable for medium and high-speed printing.
Specification
| Type | ECOO-IN-F |
| Features | Printing speed: 8,000rph-10,000rph |
| Environment friendly | |
| Good water/ink balance | |
| Rich in printing layer | |
| Clear and complete in printing dots | |
| Quick-drying performance, quick setting, quick turn | |
| Packing | 2.5 kg/tin, 6 tins/carton |
| Shelf Life | 3 years(from the production date); product against light and water |
| Application | ECOO-IN-F printing ink is suitable for printing packaging, advertisement, label, brochures and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for single-color and multi-color printing. |
| ITEM/TYPE | Light Resistance | Heat Resistance | Acid Resistance | Acid Resistance | Alcohol Resistance | Soap Resistance | |||||
| F | 6-7 | 35±1 | 15 | 4 | 4 | 4 | |||||
| YELLOW | |||||||||||
| F | 5.5-6.5 | 34±1 | 15 | 5 | 4 | 5 | |||||
| MAGENTA | |||||||||||
| F | 6.5-7.5 | 35±1 | 15 | 5 | 5 | 5 | |||||
| CYAN | |||||||||||
| F | 7-8 | 35±1 | 15 | 5 | 5 | 5 | |||||
| BLACK | |||||||||||
| Light Fastness | 1-8 (weak-strong) | ||||||||||
| Others | 1-5 (weak-strong) | ||||||||||
| ITEM/TYPE | TACKVALUE | FLUIDITY (mm) |
PARTICLESIZE (μm) | SETTING TIME (min) |
DRYING TIME (hr) |
SKINNING TIME (hr) |
|||||
| F | 6-7 | 35±1 | 15 | 4 | < 10 | >15 | |||||
| YELLOW | |||||||||||
| F | 5.5-6.5 | 34±1 | 15 | 4 | < 10 | >15 | |||||
| MAGENTA | |||||||||||
| F | 6.5-7.5 | 35±1 | 15 | 4 | < 10 | >15 | |||||
| CYAN | |||||||||||
| F | 7-8 | 35±1 | 15 | 4 | < 10 | >15 | |||||
| BLACK | |||||||||||
| Tack Value | The value is measured in 1 minute by inkometer at 32ºC and 400rpm. | ||||||||||
| Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc | ||||||||||
| Condition of test | Room temperature 25ºC, humidity 65%-75% | ||||||||||
The normal package is in aluminum can per 1 kg or 2.5 kg, vacuumed to secure tightly sealing and safe transportation.
6 drums or 12 drums packed in a carton which has partition board to protect and fix each drum from collision.
It is standard package with enough protective layers and reasonable design.
