7.26 M/Min High Or Low Volume Film Digital Laser Label Printer
Introduction

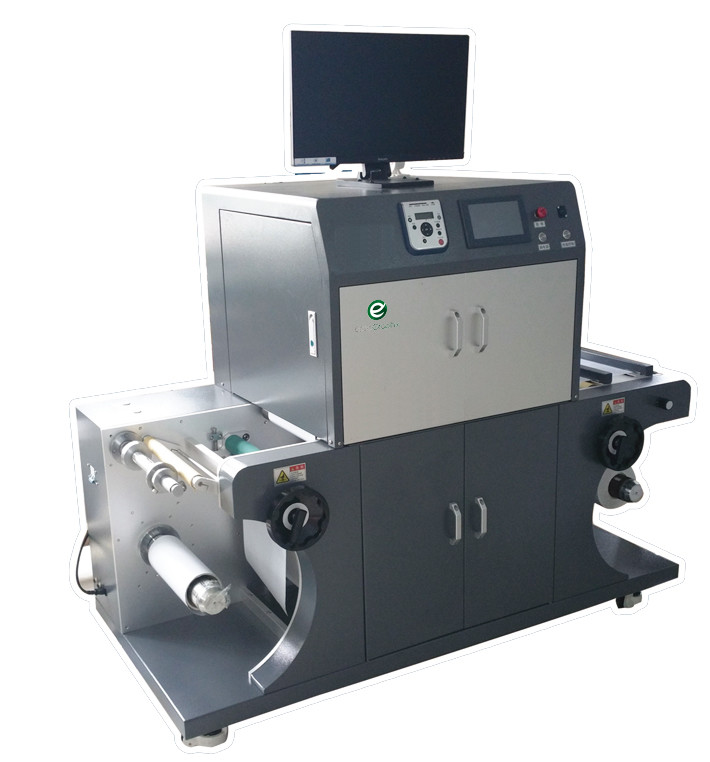

ECOO LD330 digital printer adopts an advanced digital optimized lighting control image processing system, which can not only output images with a resolution of 1200*2400dpi, but also help you solve the production of various labels. Whether massive label orders, small orders or sample orders can be perfectly reflected in it.
Specification
Digital Label Printing Machine
Model
ECOO LD330
Print Speed
Up to 7.26 meters/min(30ft/min)
Print Technology
4 Color(CMYK) LED technology
Preparing Time
Less than 28 seconds
Printer Processor
933MHz, 2G
Data Port
(Standard) 10BASE-T/100BASE-TX, USB2.0;
(Options) Internet 1000BASE-T, IEEE1284-B
Media Width
Min. 140mm, Max. 330mm
Print Width
Min. 130mm, Max. 300mm
Print Length
Min. 432mm, Max. 1230mm
Substrate Thickness
0-250μm
Substrate Types
Paper: Paper, High glossy paper, Matt paper; Film: PET, PP, PE, GHS..
All of media was tested in special environment, not tested media possible can't be used
Print Quality
1200*2400dpi
Toner Supplies
CMY-25000 sheets(A4, 5% coverage rate), K-26000 sheets(A4, 6% coverage rate);
(Rated according to ISO/IEC 19798 guidelines)
Drum Supplies
CMYK-70000 (Print runs according to the operating cycle, Medium size and the direction to change)
Max. Diameter Of Rewind Roller
450mm
Size
1640*840*1725mm
Weight
Print engine: 450KGS
Operating Environment
Temperature: 20ºC-23ºC, Humidity: 45-55% RH
Power Supply
110-127 VAC, 50-60Hz@3800W, 220-240 VAC, 50-60Hz@3800W
Power Consumption
(AC220-240V) Sleep 25W; Waiting 135W; Running 1200W
Monthly Running Job
Max. 20000sqm(advice)
| Digital Label Printing Machine |
| Model |
ECOO LD330 |
| Print Speed |
Up to 7.26 meters/min(30ft/min) |
| Print Technology |
4 Color(CMYK) LED technology |
| Preparing Time |
Less than 28 seconds |
| Printer Processor |
933MHz, 2G |
| Data Port |
(Standard) 10BASE-T/100BASE-TX, USB2.0;
(Options) Internet 1000BASE-T, IEEE1284-B
|
| Media Width |
Min. 140mm, Max. 330mm |
| Print Width |
Min. 130mm, Max. 300mm |
| Print Length |
Min. 432mm, Max. 1230mm |
| Substrate Thickness |
0-250μm |
| Substrate Types |
Paper: Paper, High glossy paper, Matt paper; Film: PET, PP, PE, GHS.. |
| All of media was tested in special environment, not tested media possible can't be used |
| Print Quality |
1200*2400dpi |
| Toner Supplies |
CMY-25000 sheets (A4, 5% coverage rate), K-26000 sheets (A4, 6%
coverage rate); (Rated according to ISO/IEC 19798 guidelines) |
| Drum Supplies |
CMYK-70000 (Print runs according to the operating cycle,
Medium size and the direction to change)
|
| Max. Diameter Of Rewind Roller |
450mm |
| Size |
1640*840*1725mm |
| Weight |
Print engine: 450KGS |
| Operating Environment |
Temperature: 20ºC-23ºC, Humidity: 45-55% RH |
| Power Supply |
110-127 VAC, 50-60Hz@3800W, 220-240 VAC, 50-60Hz@3800W |
| Power Consumption |
(AC220-240V) Sleep 25W; Waiting 135W; Running 1200W |
| Monthly Running Job |
Max. 20000sqm(advice) |
Features
Printing speed of 7.26 meters per minute
Support bar code, QR code, serial number and other variable data printing
Special RIP software to ensure printing accuracy
Low temperature printing of a variety of materials
