Name: Online B0 VLF CTP Plate machine for Offset Printing
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: T1600SX
Price: 150000.00 USD
Availability: InStock

Online B0 VLF CTP Plate machine for Offset Printing

1SET

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Printing Plate Size: 1470x1180mm

Working Speed: 25 Plates Per Hour

Min.Plate Size: 400mm X 400mm

Machine Size: (L)236×(W)191×(H)122(cm)

CTP Plate Type: 830nm Thermal CTP Aluminum Plate

Resolution: 2400/2540dpi

Highlight:

Window Film Patching Machine TC1100

Double Lanes Film Gluing Machine

Carton Window Pasting Machine

Basic Infomation

Place of Origin: China

Brand Name: ECOOGRAPHIX

Certification: CE

Model Number: T1600SX

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30DAYS

Payment Terms: L/C, T/T

Gallery

Online B0 VLF CTP Plate machine for Offset Printing

Product Description

Online B0 VLF CTP Plate machine for Carton Offset Printing

1. Application
EcooGraphix VLF(Very Large Format) Thermal CTP Machine T1600S can be used for A0,B0 paper size Posters or Wall-charts , Large Books, catalogue, yellow pages, packaging processing and plate-making center etc. , with the output speed 14 -19 plates per hour.

2. Main features:

Maximum Plate Size: 1,470×1180mm

Features: Less manpower, high stability and perfect output quality.

UV plate and thermal plate are available for you to lower production cost.

Automatic plate loading and unloading can improve your plate-making efficiency.

Combined with autoloader, processor and stacker, EcooGraphix VLF CTP series can achieve full-automatic printing.
Only one operator is needed to finish the whole output process.

3.Application and Sample:

Online B0 VLF CTP Plate machine for Offset Printing 0

4. Technical Specifications:

Model	T-1600S T1600SX
Exposing Method	External Drum
Imaging System	64-channel	256-channel
	Discrete 830nm laser diode
Output Speed	16plates/hour	25 plates/hour
	1470mm x 1180mm / 2400dpi
Plate Sizes	Max.1470mm x1180mm; Min. 400mm x 400mm
Media Type	Thermal CTP plate
Plate Thickness	0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative)
Resolution	2400dpi,1200dpi optional: dual resolutions 2,400dpi and 1, Standard: dual resolutions 2,400dpi and 1,200dpi, or 2,540dpi and 1,270dpi (Option) Variable high resolution option: maximum up to 10,000dpi at fast scan direction
Repeatability	0.01mm (continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface	USB 2.0 or USB3.0(USB2.0 is recommended)	Optical Fiber ( Fiber Way )

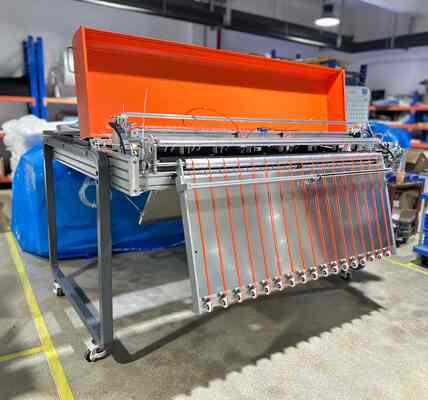

Plate Loading	Manual or automatic with autoloader
Net Weight	1400kg
Machine Size	2,355×1,910×1,217 mm ( L×W×H )
Power Supply	Single phase: 220V, Max power (Peak value): 5.5KW
Operation Environment	recommended temperature:21-25℃;allowed temperature :15-30℃, humidity:<70%RH

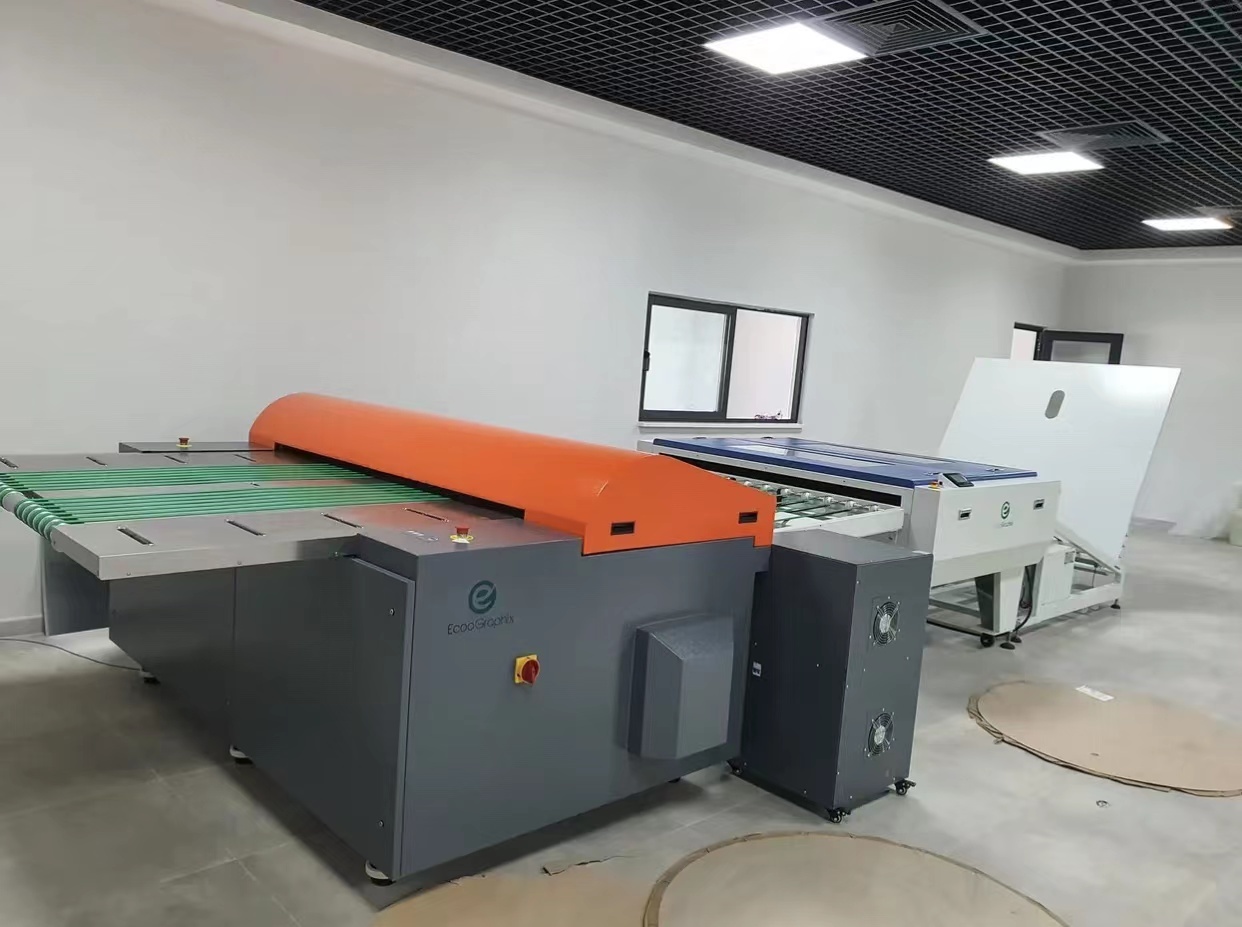

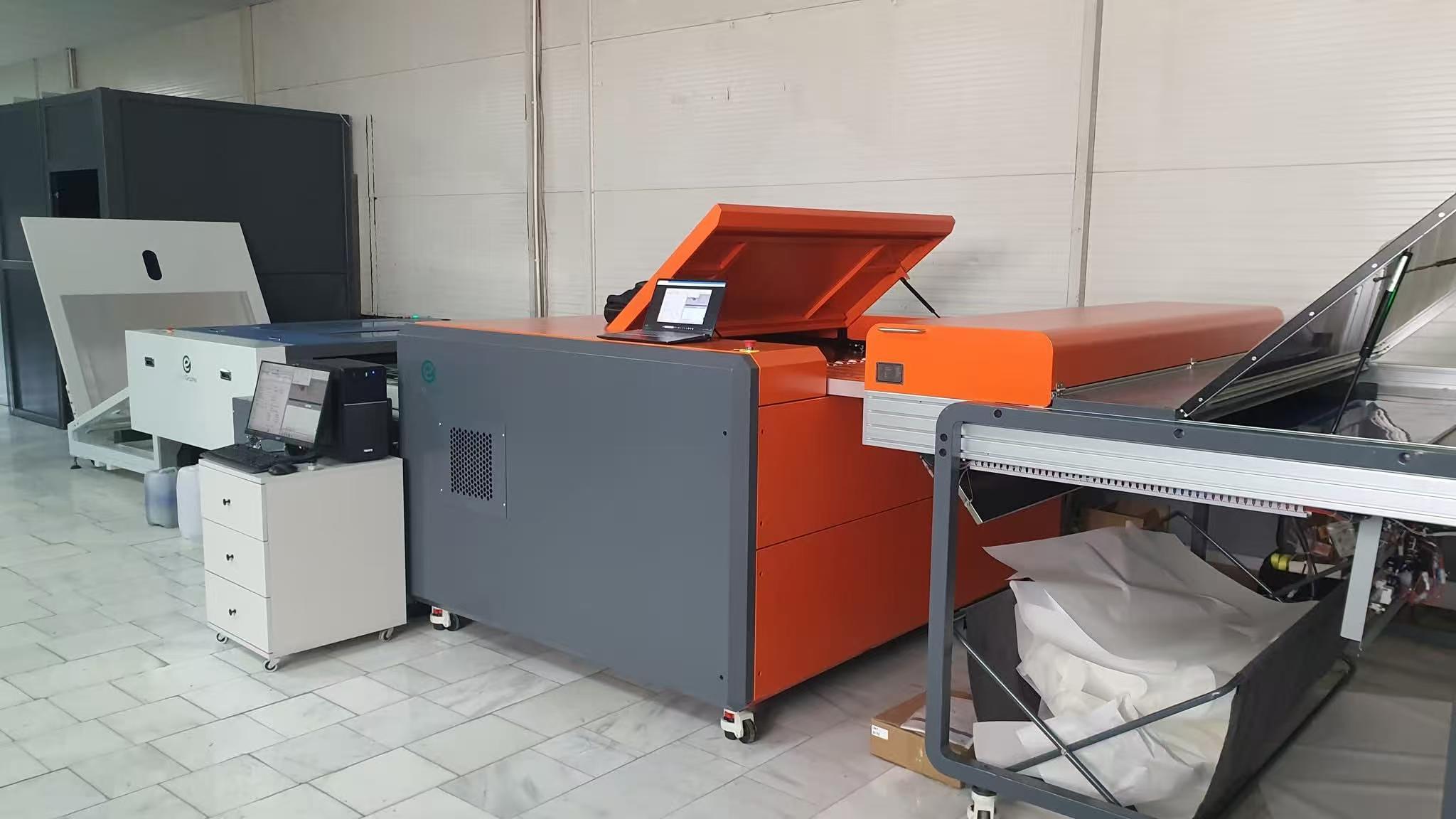

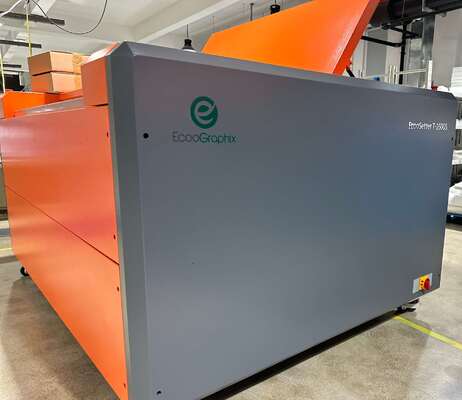

Online B0 VLF CTP Plate machine for Offset Printing 1

Online B0 VLF CTP Plate machine for Offset Printing 2

Online B0 VLF CTP Plate machine for Offset Printing 3

Online B0 VLF CTP Plate machine for Offset Printing 4
