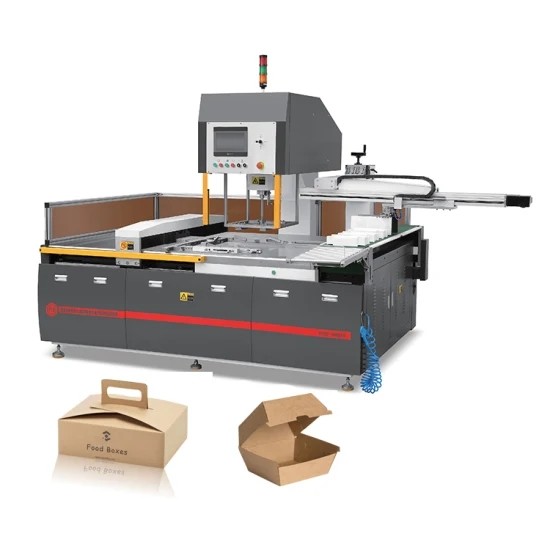

380V Paper Box Stripping Die Cutting Machine With Double Guide Rail

1SET
MOQ
Negotiable
Price
380V Paper Box Stripping Die Cutting Machine With Double Guide Rail
Features Gallery Product Description Request A Quote
Features
Specifications
Max Take Off The Paper: 230x230(mm)
Max Sheet Size(x)x(y): 680x460(mm)
Max.Operation Speed: 22(pcs/min)
Application: Plastic Film/plate, Gift Box, Pizza Box, Corrugated Board, Hot Foil Stamping Embossing Paperboard
Type: Conventional Die Cutter Without Stripping
Motor Power: 4.2KW
Condition: New
Warranty: One Year
Package Dimension: 2100x1500x2200(mm)
High Light:

380V Stripping Die Cutting Machine

,

Double Guide Rail Die Cutting Machine

,

22pcs/Min Die Cutting Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: CE
Model Number: QF680T
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: about 20days
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Product Description



Semi-automatic Paper Die Cutting Stripping Machine


  EcooGraphix  QF680T is the ideal equipment for die cutting and creasing all kinds of paperboard, it is the most preeminent handfed die cutting machine to do some simple creasing for sample.

As the longest life product , our semi automatic die cutter has been upgraded for many times, but we keep the perfect surface and make the performance to the best.



  This series of products suitable for the strip process after die cutting, Save lots of labor improve the quality of products, increase the efficiency of company





Features

1. It adopts servo motor, Taiwan double guide rail and bail screw which makes accuracy less than 0.02mm.The latest hydraulic system is equipped with inserted motor and oil temperature cooling fan (power 3.75kw).

2. The complete machine is equipped with PLC, and with a touch screen interface in operation.

3. Applied for many die cut products such as labels, hang tags, business cards, gift boxes, food boxes,
paper cups and other die cutting products in paper or plastic, PU leather.
4. Automatically taking out with manipulator arm to stack product onto delivery belt.
5. Automatic lubrication system for machine better maintenance.
6. Different shapes can be custom-made as customer requirement.





Specification



Automatic Stripping Machine
Model QF 680 QF 920 QF 1080
Max sheet size(x)x(y)mm 680x460 920x680 1080x780
Max paper pile height(mm) 100 100 100
Min paper pile height(mm) 40 40 40
Min sheet size(x)x(y)mm 400x300 550x400 650x450
Bench height(mm) 850 850 850
Max Take off the paper(mm) 230x230 320x320 360x360
Min Take off the paper(mm) 30x30 30x30 30x30
Fasterst Take off the paper(pcs/min) 15-22 15-22 15-22
Max force(bar) 70 70 70
Air consumption(L/min) 2 2 2
Power 4.2kw/n 380V 4.2kw/n 380V 4.2kw/n 380V
Net weight 1.5T 1.9T 2.3T
Package dimension(mm) 2100x1500x2200 2600x1950x2250 3000x2150x2200
Gross weight 1.8T 2.2T 2.6T





380V Paper Box Stripping Die Cutting Machine With Double Guide Rail 0

Application and Samples:

380V Paper Box Stripping Die Cutting Machine With Double Guide Rail 1

   380V Paper Box Stripping Die Cutting Machine With Double Guide Rail 2

380V Paper Box Stripping Die Cutting Machine With Double Guide Rail 3

380V Paper Box Stripping Die Cutting Machine With Double Guide Rail 4



4.About our factory

EcooGraphix TD790 is produced by the leading manufacture in China ,which has a long history more than 90years. It is the first factory to produce and supply the Die Cutting ,Foil Stamping and Automatic Gluing machines .There are thousands of Die Cutting Machines installed worldwide. And two units EcooGraphix TDS790 were installed in Hungary in 2017.



380V Paper Box Stripping Die Cutting Machine With Double Guide Rail 5

380V Paper Box Stripping Die Cutting Machine With Double Guide Rail 6

Quality Control

Professional control department which is responsible for all the machines.

Full checking list including mechanical and electrical detection on the machine.

Strict standard for registration and over 24 hours non-stop running on each machine.

Follow the policy of One person responsible for one machine’,Claim responsibility if machine has assemble problem.







Service

All technicians have over 10-20 years experience.

Rich experience in installation, repairing and maintenance overseas.

After-sales staff Whatsapp/Wechat on line 24/7.

Guarantee to provide after-sales service for any machine for whole using life.
