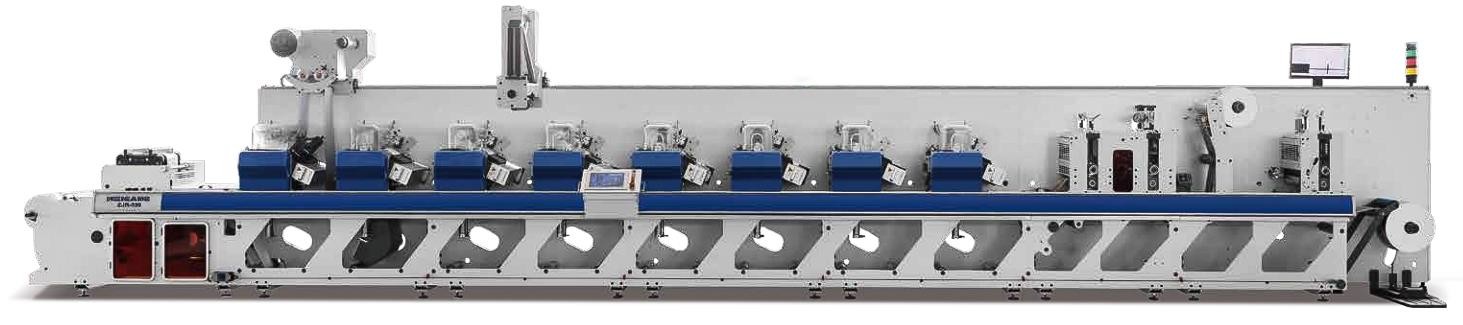

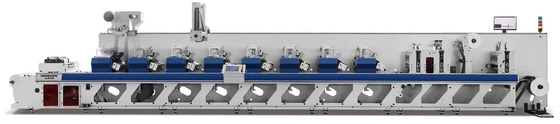

PP Transparent Film Adhesive Label Flexo Printer with Die Cutting and Varnishing
1. The whole machine adopts the latest servo control system from Germany and each printing unit is driven by independent servo motor. There are 23 servo motors in total for 8color machine which
ensure the accurate registration during high speed running.
2. The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduce the maintenance
3. Fast and easy Pressure adjustment of printing or ink transferring: Printing roller run by bearer, it’s not necessary to adjust the pressure when change the roller, or at most ne adjust for special job.
4. Anvil roller equips with water chiller, it’s good for lm material as well.
5.Suitable for printing variety lm material, such as PET, OPP, CPP, PP and so on.
| Model | Ecoo-ZJR350 | Ecoo-ZJR450 | Ecoo-ZJR650 |
| Max. Printing speed | 180m/min | 180m/min | 180m/min |
| Printing color | 4-12 colors | 4-12 colors | 4-12 colors |
| Max. web width | 360mm | 470mm | 670mm |
| Max. printing width | 350mm | 450mm | 650mm |
| Max. unwinding diameter | 900mm | 900mm | 1000mm |
| Max. rewinding diameter | 900mm | 900mm | 1000mm |
| Printing length | 241.3-603.25mm | 241.3-603.25mm | 304-730.25mm |
| Dimensions (L×W×H) | 10.83m x 1.56m x 1.52m | 10.83m x 1.68m x 1.52m | 10.0m×1.88m×1.56m |
| for 8colors, 3 die cutting stations | for 8colors, 3 die cutting stations | No die cutting stations |
MAIN CONFIGURATION:
| Description | Brand | Quantity | Origin |
| Printing roller | 3sets | China | |
| Anilox roller | Auclean/Laser | 1set | China |
| Unwind tension controller | Mitsubishi | 1set | Japan |
| Rewind tension controller | ZXTEC | 1set | China |
| Main motor | Wannan | 1set | china |
| Transducer | Mitsubishi | 2sets | Japan |
| Magnetic power brake/cluth | Ningxia | 3sets | China |
| Electromagnetic valve | Airtac | 2 set | Taiwan |
| Inverter | Schneider | 1set | Frence |
| AC Contactor | Schneider | 2pcs | France |
| Time relay | C-LIN | 1pc | China |
| Solid relay | Omron | 6pcs | Japan |
| Micro relay | Weidmiiller | 2pcs | Germany |
| Temperature Controller | Yuyao | 6pcs | China |
| Air switches | Siemens | 8pcs | Germany |
| Low pressure wiring | Schneider | All | France |
| All the bearing | NSK/CHINA | JAPAN/CHINA |
