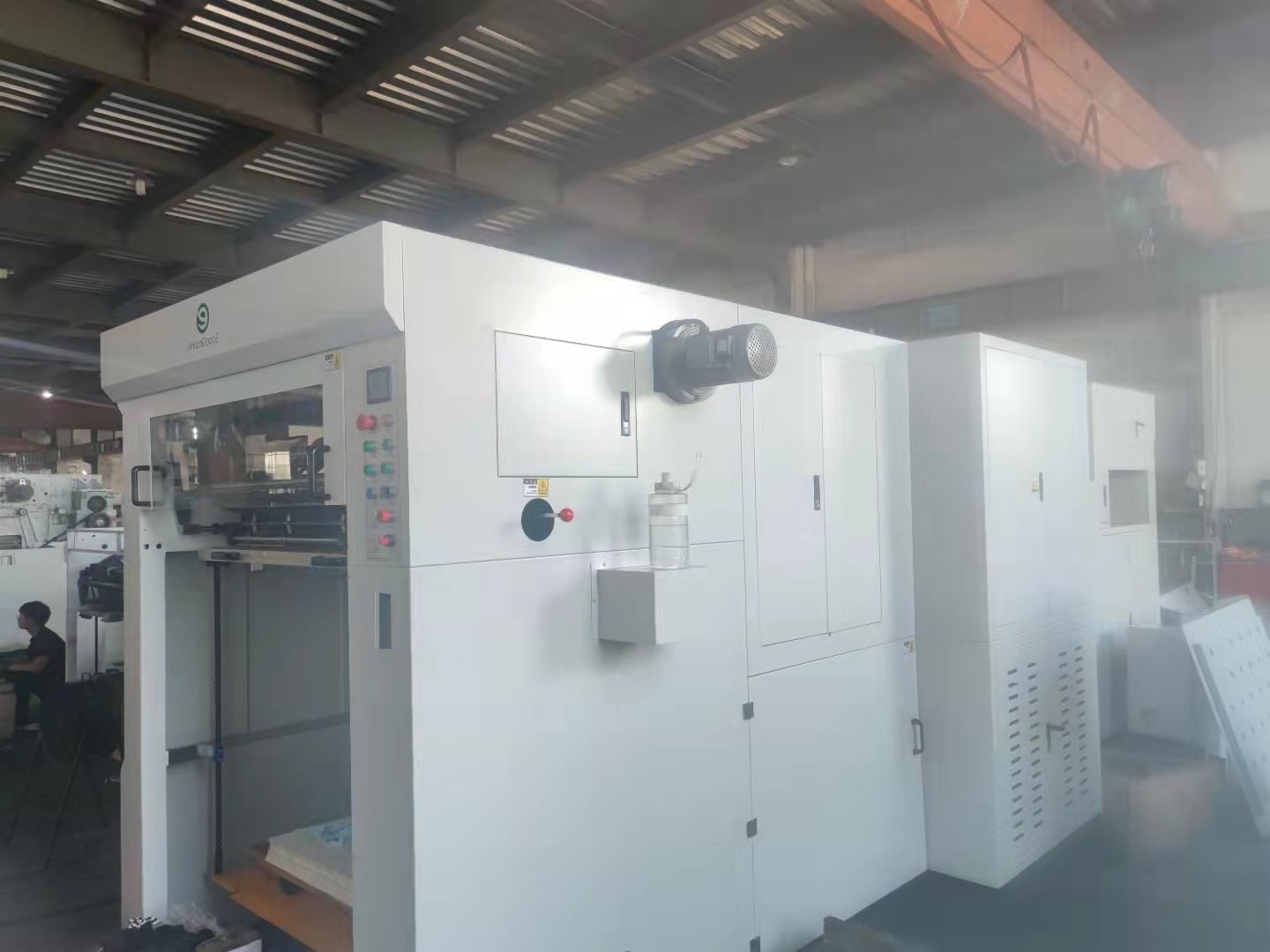

1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy

1 SET
MOQ
Negotiable
Price
1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: Die Cutting Machine
Cutting Plate Size: 1080 X 780
Inside Chase Size(mm): 1100 X 790
Max. Sheet Size(mm): 1080 X 780
Die Cutting Accuracy(mm): ≤ ±0.1
Min. Sheet Size(mm): 400 X 330
Min. Gripper Margin(mm): 7
Highlight:

Waste Stripping Flatbed Die Cutter

,

1080x780mm Flatbed Die Cutter

,

Flatbed Die Cutter 7000S/H

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-1080BQ
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description



 1080x780mm High Accuracy Waste Stripping Flatbed Die Cutter














◀▶ ◀▶ ◀▶ ◀▶ ◀▶   Introduction   ◀▶ ◀▶ ◀▶ ◀▶ ◀▶



Automatic stamping machines are commonly used for general packaging, such as label hot stamping,
card hot stamping, food packaging hot stamping, etc.


The automatic stamping machine 1080BQ is one of the best-selling products, especially in Europe.
Such as the UK, Hungary, Romania, Croatia, Portugal, Bulgaria and the Czech Republic.


1080BQ automatic die cutting machine is a very stable machine, and its first version was designed 20 years ago.
So far we have sold more than 300 automatic stamping machines worldwide.


It is used for automatic stamping roll material, after printing, lamination. Suitable for the production of paper boxes,

paper cups, wrapping labels, cardboard embossing, portable paper bags, paper covers, PVC, various plastics, etc...














◀▶ ◀▶ ◀▶ ◀▶ ◀▶   Specification   ◀▶ ◀▶ ◀▶ ◀▶



Automatic Die Cutting Machine

Model
ECOO-1080BQ

Max. Sheet size(mm)
1080 x 780

Min. Sheet size(mm)
400 x 330

Max. Die cutting size(mm)
1075 x 770

Inside chase size(mm)
1100 x 790

Cutting plate size(mm)
1080 x 780

Min. Gripper margin(mm)
7

Die cutting accuracy(mm)
≤ ±0.1

Max. Pressure(T)
300

Max. Machine speed(s/h)
7000

Feeding pile height(mm)
1550

Delivery pile height(mm)
1400

Stock range
White board paper: 0.1~2 mm; Corrugated paper: < 4 mm

Power
17.8kw

Dimension(mm)
5880(+1650) x 2100(+1600) x 2350

Weight(T)
17.6

Automatic Die Cutting Machine
Model ECOO-1080BQ
Max. Sheet size(mm) 1080 x 780
Min. Sheet size(mm) 400 x 330
Max. Die cutting size(mm) 1075 x 770
Inside chase size(mm) 1100 x 790
Cutting plate size(mm) 1080 x 780
Min. Gripper margin(mm) 7
Die cutting accuracy(mm) ≤ ±0.1
Max. Pressure(T) 300
Max. Machine speed(s/h) 7000
Feeding pile height(mm) 1550
Delivery pile height(mm) 1400
Stock range White board paper: 0.1~2 mm; Corrugated paper: < 4 mm
Power 17.8kw
Dimension(mm) 5880(+1650) x 2100(+1600) x 2350
Weight(T) 17.6












◀▶ ◀▶ ◀▶ ◀▶ ◀▶   Features   ▶ ◀▶ ◀▶ ◀▶ ◀▶



. Perfect design, fine assembly, good stability, strong safety and low noise.

. Worm gear, worm, crankshaft transmission technology, high die-cutting pressure and long service life.

. High-precision clearance mechanism, high die-cutting accuracy and stable operation.

. Adopting European technology feeder head, the suction paper is adjustable, stable and accurate, and the paper has strong applicability.

♪. Non-stop paper feeding, pre-coded paper stacks and paper payment and collection mechanisms can shorten auxiliary time and improve work efficiency.

. Die-cutting plate frame and bottom plate mechanism, humanized design, quick and convenient plate loading and adjustment.

. (Optional) Three-frame linkage mechanism with waste removal function, humanized design, installation of waste removal plate and adjustment removal plate fast and convenient.

. Pneumatic plate locking device makes the plate frame more firm, accurate and time-saving.

. The front gauge, side gauge, and paper feeder fine-tuning device make paper positioning more accurate.

§. The photoelectric level control of double sheets, crooked sheets, and empty sheets ensures the accuracy and stability of the paper and reduces waste.

. The electrical control modular design adopts imported electrical components to ensure accurate control and good reliability.

. Touch screen man-machine interface, real-time dynamic monitoring and display of running status, convenient and quick machine adjustment and troubleshooting.

. The circulating cooling oil supply system ensures that the moving parts of the machine have good lubrication and are durable.




♣. The timing and quantitative automatic oil supply system ensures that other moving parts of the machine are fully lubricated and have a long service life.








◀▶ ◀▶ ◀▶ ◀▶ ◀▶   Details   ▶ ◀▶ ◀▶ ◀▶ ◀▶

1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 0
European technology precision feeder head for cardboard and corrugated paper.
Four suction and four feed, the suction angle can be adjusted according to the deformation of the paper.


1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 1

Two-sided push-pull dual-purpose side regulation. Electromechanical double sheet detector. The main paper feeding table is switched without stopping the machine.

Super wear-resistant polyurethane paper conveying roller.



1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 2

The pressure-bearing parts are high-strength ductile iron QT500, which has high strength and never deforms. Alloy steel crankshaft treated with special process.



1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 3

Super wear-resistant worm gear and worm.


1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 4
Taiwan high-pressure oil pump circulating oil lubrication system. High-precision intermittent mechanism. Japan SMC rotary joint. Precision pressure regulating mechanism.


1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 5
Automatic paper arranging device, two-way air blowing device for delivery to ensure that thick and thin paper can be delivered neatly.
The delivery section is equipped with a control panel for more user-friendly operation. Paper delivery photoelectric to ensure neat delivery. Automatic lifting control system for delivery table. Equipped with non-stop delivery device.








































◀▶ ◀▶ ◀▶ ◀▶ ◀▶   Producing And Packaging   ▶ ◀▶ ◀▶ ◀▶ ◀▶



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 6

1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 7

1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 8

1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 9


















































◀▶ ◀▶ ◀▶ ◀▶ ◀▶   Certificates   ▶ ◀▶ ◀▶ ◀▶ ◀▶



1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 10

1080x780mm Waste Stripping Flatbed Die Cutter 7000S/H High Accuracy 11


































◀▶ ◀▶ ◀▶ ◀▶ ◀▶   FAQ   ▶ ◀▶ ◀▶ ◀▶ ◀▶



 Q1: What are your main products ?


A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.


 Q2: Where is your factory ?



A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!


 Q3: How long is the lead time ?



A: The lead time is normally 30 days. We can accelerate for emergency cases.


 Q4: Is there any certification for your machine ?



A: Yes, all our machines have been certified by SGS and CE.


 Q5: How long is the warranty period ?



A: One year warranty.(For machine parts, we have one year guarantee. For motor, three months guarantee. For spare parts touching with ink, such as ink sat, ink pump, printhead, we have no guarantee. It's all the same in the market.)


 Q6: What is your normal payment term ?



A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.




 Q7: What about the installation and after-sales technician support ?


A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.



These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
