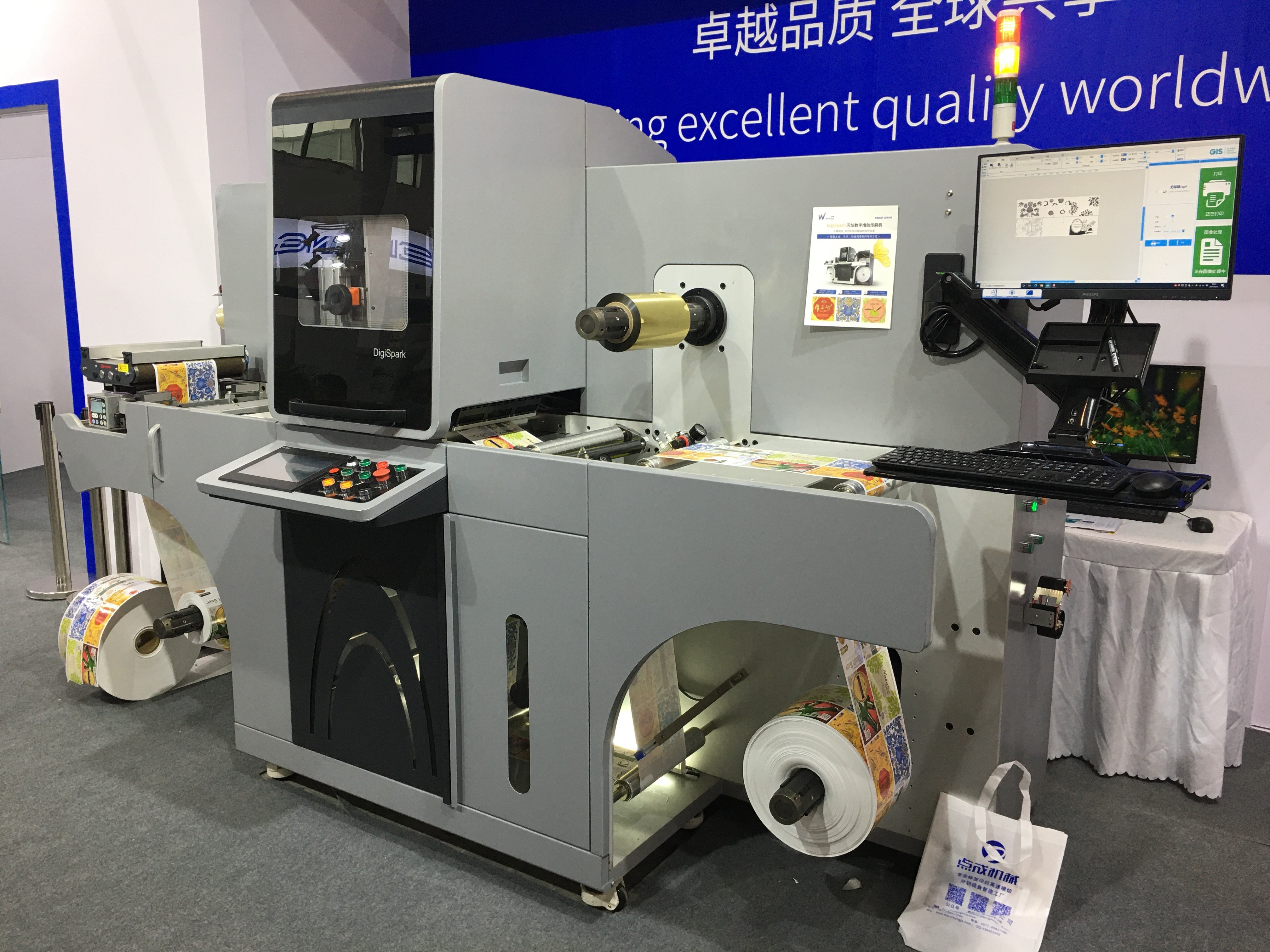

Foil Stamping Varnishing Label Enhancing Machine 6-50M/Min

1 SET
MOQ
Negotiable
Price
Foil Stamping Varnishing Label Enhancing Machine 6-50M/Min
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: Label Enhancing Machine
Printing Speed: 6m/min - 50m/min Depend On Polymer Layer Thickness
Resolution: 360*360 Dpi, Up To 1440*360 Dpi
Unwinder Diameter/ Rewinder Diameter: Max. 700mm, Core 76mm
Rewinder Diameter: Max. 700mm, Core 76mm
Printing Image Width: 288mm (Extendable To 330 Mm)
Substrates Width: Max. 330mm
Ink Curing: Inter UV-LED Pre-Curing/ Full Curing By UV-LED
High Light:

Stamping Varnishing Label Printing Machine

,

Varnishing Label Printing Machine 6m/Min

,

1080*360Dpi Label Printing Machine 6m/Min

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSpark
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description



 DoD Inkjet Digital Foil Stamping and Varnishing Enhancing Machine









-- △ -- ▽ -- △ -- ▽ -- △ -- ▽ -- Introduction ▽ -- △ -- ▽ -- △ -- ▽ -- △ --

EcooGraphix's newly developed EcooSpark digital printing machine realizes digital synergistic
processes such as digital varnish, 3D crystal bright, partial glazing, cold stamping, embossing,
etc., without the need for plate making.

It can reduce costs and instantly realize unique visual effects of printing.

This is a digital post-press equipment that creates new profit points for users,
and is a digital efficiency-enhancing printing machine.




-- △ -- ▽ -- △ -- ▽ -- △ -- ▽ -- Specification ▽ -- △ -- ▽ -- △ -- ▽ -- △ --


EcooSpark Digital Foil Stamping And Varnishing Enhancing Machine

Model
EcooSpark


Printing Technology
UV Piezo DoD-inkjet

Resolution
360*360dpi, up to 1440*360dpi


Printing speed
6m/min - 50m/min(depend on polymer layer thickness)

Variable Image system
PDF, Optimized PDF, Optional barcode system


Supported image standards
PDF, PDF/VT, TIFF, JPEG, BMP & other data base files

Substrates
Offset, Digital, Plastics, Laminated and Coated Substrates


Printing image width
288mm (extendable to 330 mm)

Polymer
WB-DS-Clear Polymer


Polymer layer thickness
From 10 up to 250 microns

Ink curing
Inter UV-LED Pre-curing/ Full curing by UV-LED


Unwinder diameter
Max. 700mm, Core 76mm

Rewinder diameter
Max. 700mm, Core 76mm


Substrates thickness
30-400 micro

Substrates width
Max. 330mm


Press with Foil station

Machine dimensions(LxHxW): 3500mm x 1900mm x 1800mm

Operating environment Temperature:
15ºC-30ºC, Humidity: 40%-80% relative humidity


Electrical requirements
Voltage: 3x380, ±5% 3 phases +G+N;

Frequency: 50/60 Hz; Current: Avg. 58.6 Amps 23KW

Weight
2800kg

EcooSpark Digital Foil Stamping And Varnishing Enhancing Machine
Model EcooSpark
Printing Technology UV Piezo DoD-inkjet
Resolution 360*360dpi, up to 1440*360dpi
Printing speed 6m/min - 50m/min(depend on polymer layer thickness)
Variable Image system PDF, Optimized PDF, Optional barcode system
Supported image standards PDF, PDF/VT, TIFF, JPEG, BMP & other data base files
Substrates Offset, Digital, Plastics, Laminated and Coated Substrates
Printing image width 288mm (extendable to 330 mm)
Polymer WB-DS-Clear Polymer
Polymer layer thickness From 10 up to 250 microns
Ink curing Inter UV-LED Pre-curing/ Full curing by UV-LED
Unwinder diameter Max. 700mm, Core 76mm
Rewinder diameter Max. 700mm, Core 76mm
Substrates thickness 30-400 micro
Substrates width Max. 330mm
Press with Foil station Machine dimensions(LxHxW): 3500mm x 1900mm x 1800mm
Operating environment

Temperature: 15ºC-30ºC,

Humidity: 40%-80% relative humidity

Electrical requirements Voltage: 3x380, ±5% 3 phases+G+N; Frequency: 50/60 Hz
Current: Avg. 58.6 Amps 23KW
Weight 2800kg








-- △ -- ▽ -- △ -- ▽ -- △ -- ▽ -- Funcations ▽ -- △ -- ▽ -- △ -- ▽ -- △ --

Digital Foil Stamping(Embossing/Raise Effect), Digital Varnishing, 3D Shining effect,
Spot Varnishing, Braille etc.

Realizing Personalized printing, variable data printing, special effect printing,
Generating additional value on your printing jobs with high efficiency,
lower cost, and high added value, producing jobs or effects which conventional
ways can not achieve.








-- △ -- ▽ -- △ -- ▽ -- △ -- ▽ -- Features ▽ -- △ -- ▽ -- △ -- ▽ -- △ --

Sturdy structure(double wall panel design)
Thick and thin materials, stability, mature platform
High stability
Good material applicability
No heating required
LED UV+water cooling roller
Suitable for ordinary cold foil



High quality-details, sharp edges:
Less heat, higher stability
Patented technology-better detail performance
Multi-process completed at one time
Customizable







-- △ -- ▽ -- △ -- ▽ -- △ -- ▽ -- Workflow ▽ -- △ -- ▽ -- △ -- ▽ -- △ --

Foil Stamping Varnishing Label Enhancing Machine 6-50M/Min 0








-- △ -- ▽ -- △ -- ▽ -- △ -- ▽ -- Advantages ▽ -- △ -- ▽ -- △ -- ▽ -- △ --

Foil Stamping Varnishing Label Enhancing Machine 6-50M/Min 1










-- △ -- ▽ -- △ -- ▽ -- △ -- ▽ -- Producing And Packaging ▽ -- △ -- ▽ -- △ -- ▽ -- △ --

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

Foil Stamping Varnishing Label Enhancing Machine 6-50M/Min 2


Foil Stamping Varnishing Label Enhancing Machine 6-50M/Min 3



Foil Stamping Varnishing Label Enhancing Machine 6-50M/Min 4



Foil Stamping Varnishing Label Enhancing Machine 6-50M/Min 5



Foil Stamping Varnishing Label Enhancing Machine 6-50M/Min 6








-- △ -- ▽ -- △ -- ▽ -- △ -- ▽ -- Certificates ▽ -- △ -- ▽ -- △ -- ▽ -- △ --

Foil Stamping Varnishing Label Enhancing Machine 6-50M/Min 7

Foil Stamping Varnishing Label Enhancing Machine 6-50M/Min 8









-- △ -- ▽ -- △ -- ▽ -- △ -- ▽ -- FAQ ▽ -- △ -- ▽ -- △ -- ▽ -- △ --




 Q1: What are your main products ?


A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.





 Q2: Where is your factory ?


A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!





 Q3: How long is the lead time ?


A: The lead time is normally 30 days. We can accelerate for emergency cases.





 Q4: Is there any certification for your machine ?


A: Yes, all our machines have been certified by SGS and CE.





 Q5: How long is the warranty period ?


A: EcooGraphix guarantees 1 year of warranty for spare parts(except print heads).





 Q6: What is your normal payment term ?


A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.





 Q7: What about the installation and after-sales technician support ?


A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.



These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
