Carton Boards Microspheres Offset Rubber Blanket 80 Shore A

50 Square Meters
MOQ
Negotiable
Price

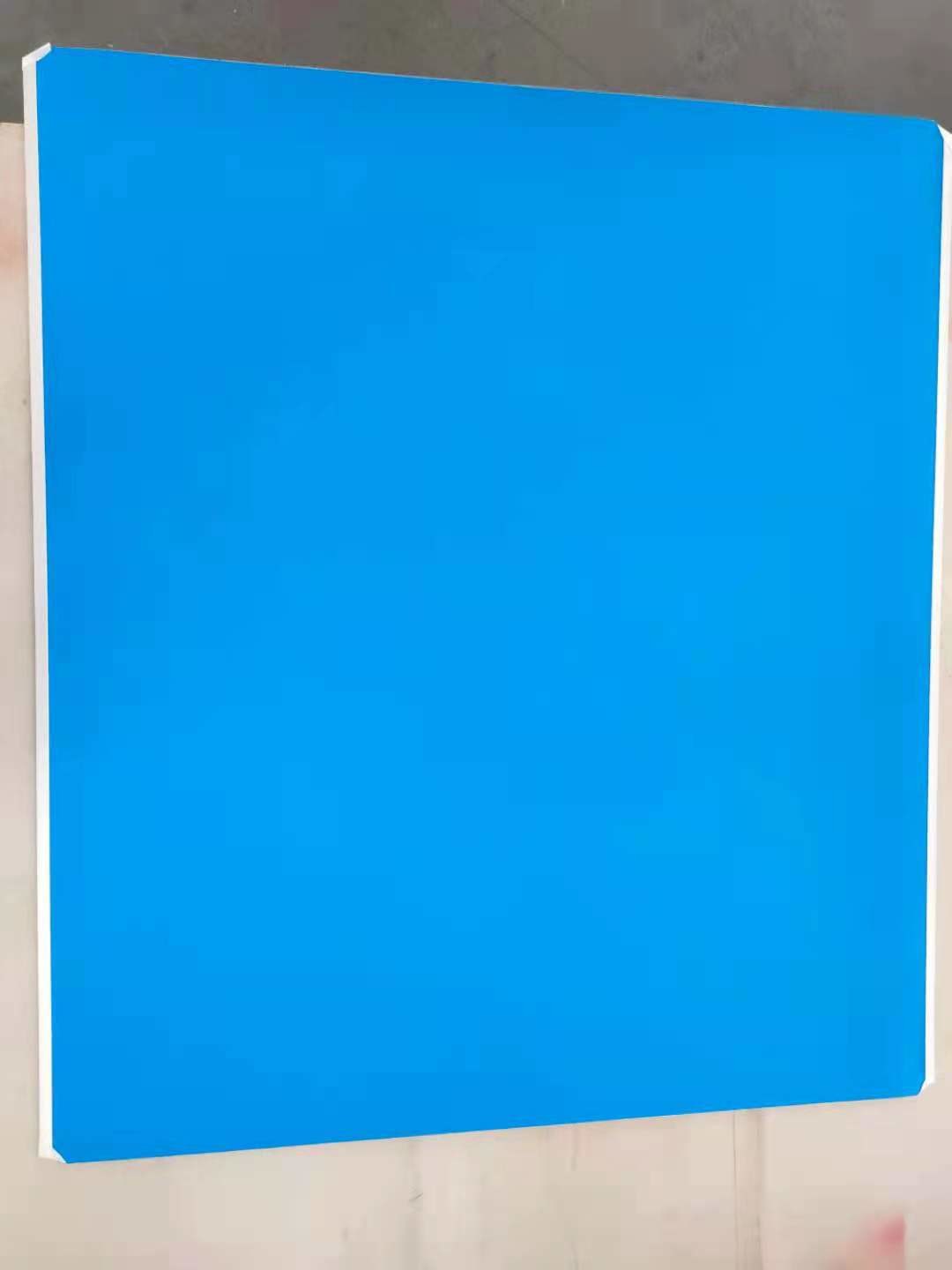

Carton Boards Microspheres Offset Rubber Blanket 80 Shore A
Features Gallery Product Description Request A Quote
Features
Specifications
Blanket Type: Offset Printing Blanket
Roughness: 0.8-1.0um
Elongation: ≤ 1.0%
Tensile Strength: ≥ 85
Hardness: 76-80 Shore A
Surface: Micro- Ground And Polished
Thickness: 1.97/1.70 +- 0.02mm
Construction: 4/3 Ply Fabric
High Light:

Microspheres Printing Rubber Blanket

,

Carton Boards Offset Rubber Blanket

,

80 Shore A Printing Rubber Blanket

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-BL-M
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 300,000 Sqm/Year
Product Description



 Up To 15000 Prints Per Hour Printing Rubber Blanket For Plastic & Metal













 ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~  Application  ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ ·


EcooGraphix Printing Blanket is suitable for printing of coated papers, carton boards and the like.

So the finish products of whole offset printing would be carton, coated paper, newspaper, magazine and so on.







 ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~  Specification  ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ ·


Model
ECOO-BL-M


Construction
4/3 ply fabric

Thickness
1.97/1.70 ± 0.02mm

Color
Blue/Green

Compressible
Microspheres

Surface
Micro-ground and polished

Roughness
0.8-1.0μm

Hardness
76-80 Shore A

Elongation
≤ 1.0%

Tensile Strengh
≥ 85

Suitable Printing Segment
Publishing, Packaging, Plastic and Metal Printing

Application
Strong universality; Appropriate to dot and word printing; Speed about 15000 prints/hour

Characteristic
Moderate compressible avoids moving image of machine and reduces the edge marking.
Wide-ranging print.
Prefer to carton print and full mold print.

Model ECOO-BL-M
Construction 4/3 ply fabric
Thickness 1.97/1.70 ± 0.02mm
Color Blue/ Green
Compressible Microspheres
Surface Micro-ground and polished
Roughness 0.8-1.0μm
Hardness 76-80 Shore A
Elongation ≤ 1.0%
Tensile strength ≥ 85
Suitable Printing Segment Publishing, Packaging, Plastic and Metal Printing
Application Strong universality
Appropriate to dot and word printing
Speed about 15000 prints/hour
Characteristic Moderate compressible avoids moving image of machine and reduces the edge marking. Wide-ranging print. Prefer to carton print and full mold print.














 ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~  Features  ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ ·


  High cost-effective. Our most economic blanket model as well as most popular seller, could satisfy 85% printing jobs.

♠  High compressive ability, which allows many types and printing material in different thickness.

  Wide range printing, prefers package printing on carton in moderate speed.

  Be excellent in the action of absorbing a shock such as a mechanical impact.

  Prevent the material to be printed from winding around the blanket cylinder.














 ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~  Structure And Aluminum Bar  ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ ·



Structure

The printing blanket normally includes 3 layers as following:

A: a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder;

B: a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores;


C: an outer-lying void-free layer of an elastomeric layer which faces toward the printing material.

Carton Boards Microspheres Offset Rubber Blanket 80 Shore A 0



Aluminum Bar



Depending on customers' inquiry, we can offer blanket with or without bar.

$5 for each pair of bars.

Please let us know the machine model or bar size if you need blanket with bars.



Carton Boards Microspheres Offset Rubber Blanket 80 Shore A 1













~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~  Tips  ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~


 1) Where does a blanket use in printing ?


See the below image.
The blanket is used to cover the blanket cylinder(the intermediate cylinder) in each color unit within printing machine.



Carton Boards Microspheres Offset Rubber Blanket 80 Shore A 2





 2) How does it work ?



Simply speaking, the blanket is to transfer the image from plate onto paper.
The image is "offset" onto the blanket and then to paper.
The blanket created a smoother image on most types of paper and can print on rough or heavy stocks as well as other media.
Most offset presses use this lithographic method.









 ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~  Packaging and Maintenance  ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ ·


Packing


We offer blanket in any sizes in sheet or in roll as below:

The blankets will be rolled and packed in polymer bag and carton with enough protective layers.

The customer can decide the content of back side, usually the logo or size.

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



Carton Boards Microspheres Offset Rubber Blanket 80 Shore A 3

Blanket In Roll



Carton Boards Microspheres Offset Rubber Blanket 80 Shore A 4

Blanket In Sheet





Maintenance

Clean the blanket with fast volatile organic solvents.

Clean rolls when ink color changing or refilling.

Release the blanket off the cylinder when the printing machine stopped for a long time.

New blankets should be stored in dry and cool place covered with dark layer.



Carton Boards Microspheres Offset Rubber Blanket 80 Shore A 5



Carton Boards Microspheres Offset Rubber Blanket 80 Shore A 6



Carton Boards Microspheres Offset Rubber Blanket 80 Shore A 7



Carton Boards Microspheres Offset Rubber Blanket 80 Shore A 8













~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~  Certificates  ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~



Carton Boards Microspheres Offset Rubber Blanket 80 Shore A 9

Carton Boards Microspheres Offset Rubber Blanket 80 Shore A 10













~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~  FAQ  ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~ · ~


Q1: Do you offer free sample ? How long is the sample time of the shipping ? Does the sample fee can be returned ?

A: Since blanket is high value, we did not offer free sample. But we can offer favorable discount. It will take 5 days to prepare sample. If you place formal bulk order, we will refund the sample fee and courier cost.

Q2: About the sample what is the cost of transportation ?

A: The freight depends on weight, packing size and your country or province region, etc.

Q3: How long can I expect to get the sample ?

A: The sample will be ready for delivery in 3-5 days and will be sent via international express such as DHL, UPS, TNT, FEDEX and would be arrived within 3-5 days.

Q4: Where is your factory ?


A: Our factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
