Compressible Plastic Offset Printing Rubber Blanket 4 Ply

50 Square Meters
MOQ
Negotiable
Price
Compressible Plastic Offset Printing Rubber Blanket 4 Ply
Features Gallery Product Description Request A Quote
Features
Specifications
Classification: Offset Printing Ink
Roughness: 0.8-1.0μm
Hardness: 76-80 Shore A
Compressible Layer: Microspheres
Thickness: 1.97/1.70 ± 0.02 Mm
Construction: 4/3 Ply Fabric
Elongation: ≤ 1.0%
Tensile Strength: ≥ 85
High Light:

Compressible Offset Printing Rubber Blanket

,

4 Ply Printing Rubber Blanket

,

Plastic Offset Printing Rubber Blanket

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-BL-M
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 25 Days
Payment Terms: L/C, T/T
Supply Ability: 300,000 Sqm/Year
Product Description



 4/3Ply Compressible Offset Printing

 Rubber Blanket For Plastic Printing












1 ◆◇ Features ◆




  High cost-effective. Our most economic blanket model as well as most popular seller, could satisfy 85% printing jobs.

  High compressive ability, which allows many types and printing material in different thickness.

  Wide range printing, prefers package printing on carton in moderate speed.

  Be excellent in the action of absorbing a shock such as a mechanical impact.

  Prevent the material to be printed from winding around the blanket cylinder.











2 ◆◇ Specification





Model

ECOO-BL-M


Construction

4/3 ply fabric


Thickness

1.97/1.70 ± 0.02mm


Color

Blue/ Green


Compressible

Microspheres


Surface

Micro-ground and polished


Roughness

0.8-1.0μm


Hardness

76-80 Shore A


Elongation

≤ 1.0%


Tensile strength

≥ 85


Suitable Printing Segment
Publishing, Packaging, Plastic and Metal Printing


Application
Strong universality; Appropriate to dot and word printing; Speed about 15000 prints/hour.


Characteristic
Moderate compressible avoids moving image of machine and reduces the edge marking.
Wide-ranging print.
Prefer to carton print and full mold print.

Model ECOO-BL-M
Construction 4/3 ply fabric
Thickness 1.97/1.70 ± 0.02mm
Color Blue/ Green
Compressible Microspheres
Surface Micro-ground and polished
Roughness 0.8-1.0 μm
Hardness 76-80 Shore A
Elongation ≤ 1.0%
Tensile strength ≥ 85
Suitable Printing Segment Publishing, Packaging, Plastic and Metal Printing
Application Strong universality;
Appropriate to dot and word printing;
Speed about 15000 prints/hour.
Characteristic Moderate compressible avoids moving image of machine and reduces the edge marking. Wide-ranging print. Prefer to carton print and full mold print.










3 ◆◇ Application







EcooGraphix Printing Blanket is suitable for printing of coated papers, carton boards and the like.

So the finish products of whole offset printing would be carton, coated paper, newspaper, magazine and so on.
Compressible Plastic Offset Printing Rubber Blanket 4 Ply 0






4 ◆◇ Structure and Aluminum Bar


Structure

The printing blanket normally includes 3 layers as below:

A: a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder;

B: a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores;

C: an outer-lying void-free layer of an elastomeric layer which faces toward the printing material.

Compressible Plastic Offset Printing Rubber Blanket 4 Ply 1






Aluminum Bar



We can offer blanket with or without bar, depending on customers' inquiry.


$5 for each pair of bars.


Please let us know the machine model or bar size if you need blanket with bars.



Compressible Plastic Offset Printing Rubber Blanket 4 Ply 2



Compressible Plastic Offset Printing Rubber Blanket 4 Ply 3












5 ◆◇ Packaging And Maintenance




Packaging

We offer blanket in any sizes in sheet or in roll as below.
The blankets will be rolled and packed in polymer bag and carton with enough protective layers.

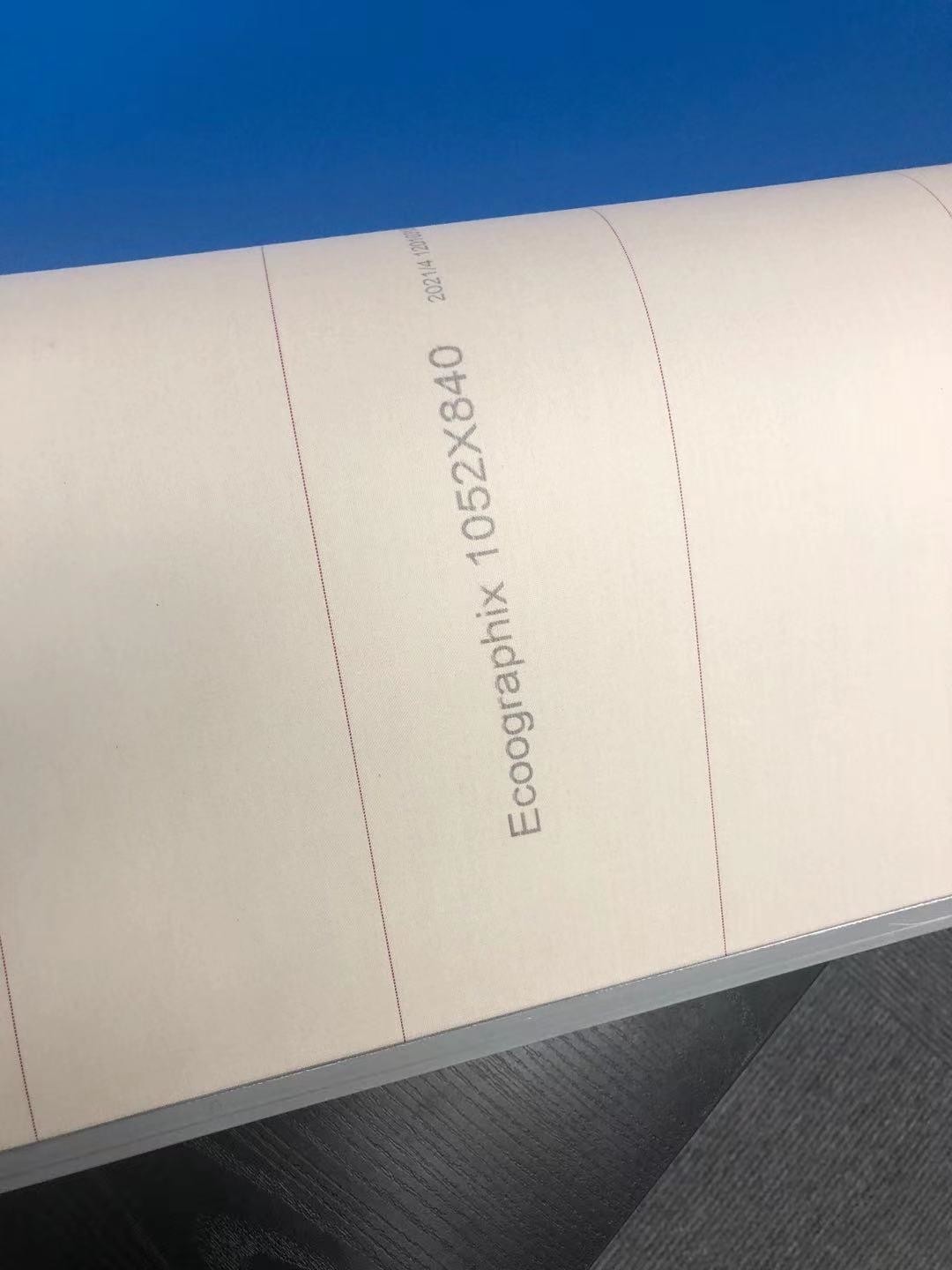

The customer can decide the content of back side, usually the logo or size.


Compressible Plastic Offset Printing Rubber Blanket 4 Ply 4

                                               Blanket In Sheet



Compressible Plastic Offset Printing Rubber Blanket 4 Ply 5

                                                Blanket In Roll





Compressible Plastic Offset Printing Rubber Blanket 4 Ply 6



Compressible Plastic Offset Printing Rubber Blanket 4 Ply 7





Maintenance

Clean the blanket with fast volatile organic solvents.

Clean rolls when ink color changing or refilling.

Release the blanket off the cylinder when the printing machine stopped for a long time.

New blankets should be stored in dry and cool place covered with dark layer.



Compressible Plastic Offset Printing Rubber Blanket 4 Ply 8





From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



Compressible Plastic Offset Printing Rubber Blanket 4 Ply 9



Compressible Plastic Offset Printing Rubber Blanket 4 Ply 10












6 ◆◇ Tips




1) Where does a blanket use in printing ?

See the below image.
The blanket is used to cover the blanket cylinder(the intermediate cylinder)

in each color unit within printing machine.



Compressible Plastic Offset Printing Rubber Blanket 4 Ply 11





2) How does it work ?



Simply speaking, the blanket is to transfer the image from plate onto paper.
The image is "offset" onto the blanket and then to paper.
The blanket created a smoother image on most types of paperand canprint on rough or heavy stocks as well as other media.
Most offset presses use this lithographic method.











7 ◆◇ Certificates





Compressible Plastic Offset Printing Rubber Blanket 4 Ply 12



Compressible Plastic Offset Printing Rubber Blanket 4 Ply 13












8 ◆◇ FAQ





 Q1: Do you offer free sample ? How long is the sample time of the shipping ? Does the sample fee can be returned ?



Since blanket is high value, we did not offer free sample. But we can offer favorable discount. It will take 5 days to prepare sample. If you place formal bulk order, we will refund the sample fee and courier cost.





 Q2: About the sample what is the cost of transportation ?



The freight depends on weight, packing size and your country or province region, etc.





 Q3: How long can I expect to get the sample ?



The sample will be ready for delivery in 3-5 days and will be sent via international express such as DHL, UPS, TNT, FEDEX and would be arrived within 3-5 days.



 Q4: Where is your factory ?


Our factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai.
You are warmly welcome to visit our factory!
