PLC 680*460mm 0.02mm Automatic Stripping Machine Die Cutting

1 Set
MOQ
Negotiable
Price
PLC 680*460mm 0.02mm Automatic Stripping Machine Die Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Classification: Automatic Stripping Machine
Max. Sheet Size(X)x(Y)mm: 680X460; 920X680; 1080X780
Max. Paper Pile Height(mm): 100
Fasterst Take Off The Paper(PCS/Min): 15-22
Max. Force(bar): 70
Bench Height(mm): 850
Min. Take Off The Paper(mm): 30X30
Min. Paper Pile Height(mm): 40
Min. Sheet Size(X)x(Y)mm: 400X300; 550X400; 650X450
Highlight:

0.02mm Automatic Stripping Machine

,

680X460mm Automatic Stripping Machine

,

PLC Automatic Stripping Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO QF Series
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

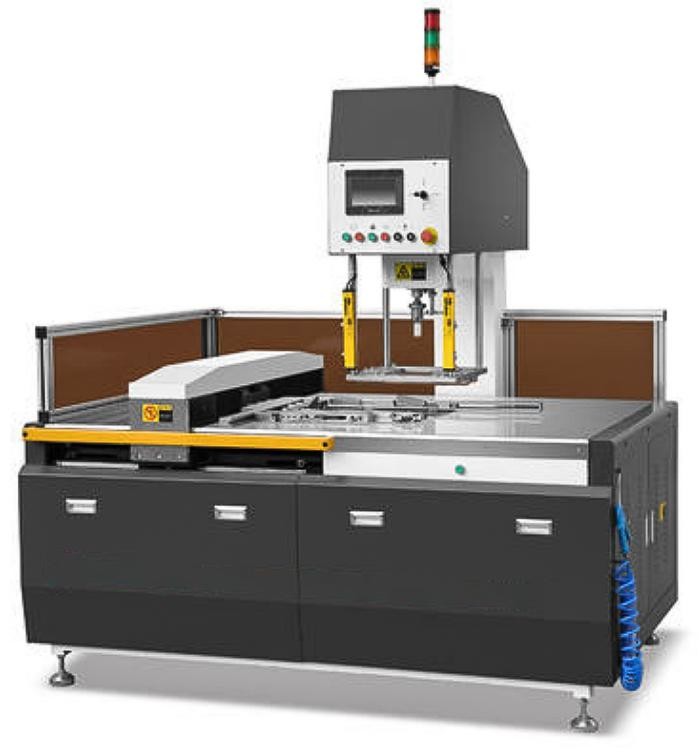

 ECOO QF Series Accuracy Less Than 0.02mm Automatic Stripping Machine













 ↔  Product Description




  • It replaces manual labor, and improves product quality and enterprise benefit.
  • It adopts servo motor, Taiwan double guide rail and bail screw which makes accuracy less than 0.02mm.
  • The latest hydraulic system is equipped with inserted motor and oil temperature cooling fan(power 3.75kw). So it has constant and big working pressure.
  • The complete machine is equipped with PLC, and with a touch screen interface in operation. The operation is safe and easy.
  • Finished samples for Spain client.













   Features

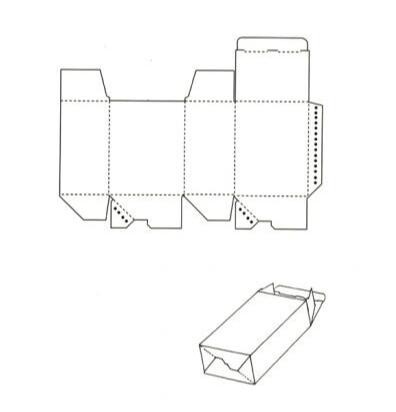

This series of products suitable for the strip process after die cutting, save lots of labor improve the quality of products, increase the efficiency of company.













 ↔  Specifications




Automatic Stripping Machine

Model
QF 680; QF 920; QF 1080

Max. Sheet Size(x)x(y)mm
680x460; 920x680; 1080x780

Max. Paper Pile Height(mm)
100; 100; 100

Min. Paper Pile Height(mm)
40; 40; 40

Min. Sheet Size(x)x(y)mm
400x300; 550x400; 650x450

Bench Height(mm)
850; 850; 850

Max. Take Off The Paper(mm)
230x230; 320x320; 360x360

Min. Take Off The Paper(mm)
30x30; 30x30; 30x30

Fasterst Take Off The Paper(pcs/min)
15-22; 15-22; 15-22

Max. Force(bar)
70; 70; 70

Air Consumption(L/min)
2; 2; 2

Power
4.2kw/n 380V; 4.2kw/n 380V; 4.2kw/n 380V

Net Weight
1.5T; 1.9T; 2.3T

Package Dimension(mm)
2100x1500x2200; 2600x1950x2250; 3000x2150x2200

Gross Weight
1.8T; 2.2T; 2.6T

Automatic Stripping Machine
Model QF 680 QF 920 QF 1080
Max. Sheet Size(x)x(y)mm 680x460 920x680 1080x780
Max. Paper Pile Height(mm) 100 100 100
Min. Paper Pile Height(mm) 40 40 40
Min. Sheet Size(x)x(y)mm 400x300 550x400 650x450
Bench Height(mm) 850 850 850
Max. Take Off The Paper(mm) 230x230 320x320 360x360
Min. Take Off The Paper(mm) 30x30 30x30 30x30
Fasterst Take Off The Paper(pcs/min) 15-22 15-22 15-22
Max. Force(bar) 70 70 70
Air Consumption(L/min) 2 2 2
Power 4.2kw/n 380V 4.2kw/n 380V 4.2kw/n 380V
Net Weight 1.5T 1.9T 2.3T
Package Dimension(mm) 2100x1500x2200 2600x1950x2250 3000x2150x2200
Gross Weight 1.8T 2.2T 2.6T











 ↕  Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



PLC 680*460mm 0.02mm Automatic Stripping Machine Die Cutting 0



PLC 680*460mm 0.02mm Automatic Stripping Machine Die Cutting 1



PLC 680*460mm 0.02mm Automatic Stripping Machine Die Cutting 2



PLC 680*460mm 0.02mm Automatic Stripping Machine Die Cutting 3



PLC 680*460mm 0.02mm Automatic Stripping Machine Die Cutting 4



PLC 680*460mm 0.02mm Automatic Stripping Machine Die Cutting 5













 ↔  Certifications




PLC 680*460mm 0.02mm Automatic Stripping Machine Die Cutting 6



PLC 680*460mm 0.02mm Automatic Stripping Machine Die Cutting 7













 ↕  FAQ






 Q1: What are your main products ?


A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.







 Q2: Where is your factory ?


A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!







 Q3: How long is the lead time ?


A: The lead time is normally 30 days. We can accelerate for emergency cases.







 Q4: Is there any certification for your machine ?


A: Yes, all our machines have been certified by SGS and CE.







 Q5: How long is the warranty period ?


A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.







 Q6: What is your normal payment term ?


A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.









 Q7: What about the installation and after-sales technician support ?


A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.



These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
