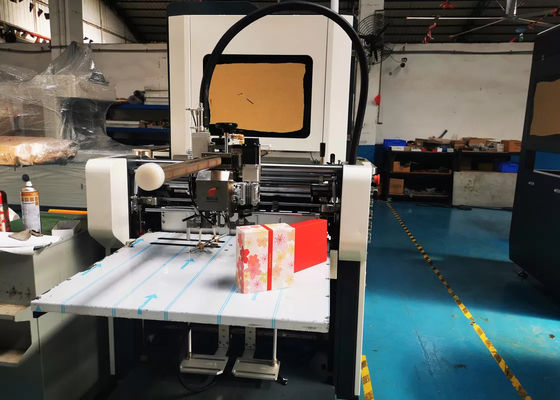

15-45 PCS/Min Automatic Positioning Machine
Automatic Positioning Machine
L800 * W600mm
L135 * W100mm
Max. box size
L600 * W400 * H120mm
Min. box size
L80 * W65 * H15mm
L750 * W450 mm
L150 * W100 mm
Paper stacking height
7.5kw/380v 3 phase
8kw/380v 3 phase
L5980 * W3180 * H2100mm
|Automatic Positioning Machine|
|Paper size(Max)||L800 * W600mm|
|Paper size(Min)||L135 * W100mm|
|Max. box size||L600 * W400 * H120mm|
|Min. box size||L80 * W65 * H15mm|
|Hard cover(Max)||L750 * W450 mm|
|Hard cover(Min)||L150 * W100 mm|
|Paper stacking height||280mm|
|Air pressure||10L/min 0.6MPa|
|Working speed||15-45 sheet/min|
|Motor power||7.5kw/380v 3 phase|
|Heating power||8kw/380v 3 phase|
|Machine dimension||L5980 * W3180 * H2100mm|
✿ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!
Q3: How long is the lead time ?
A: The lead time is normally 30 days. We can accelerate for emergency cases.
Q4: Is there any certification for your machine ?
A: Yes, all our machines have been certified by SGS and CE.
Q5: How long is the warranty period ?
A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.
Q6: What is your normal payment term ?
A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
Q7: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
