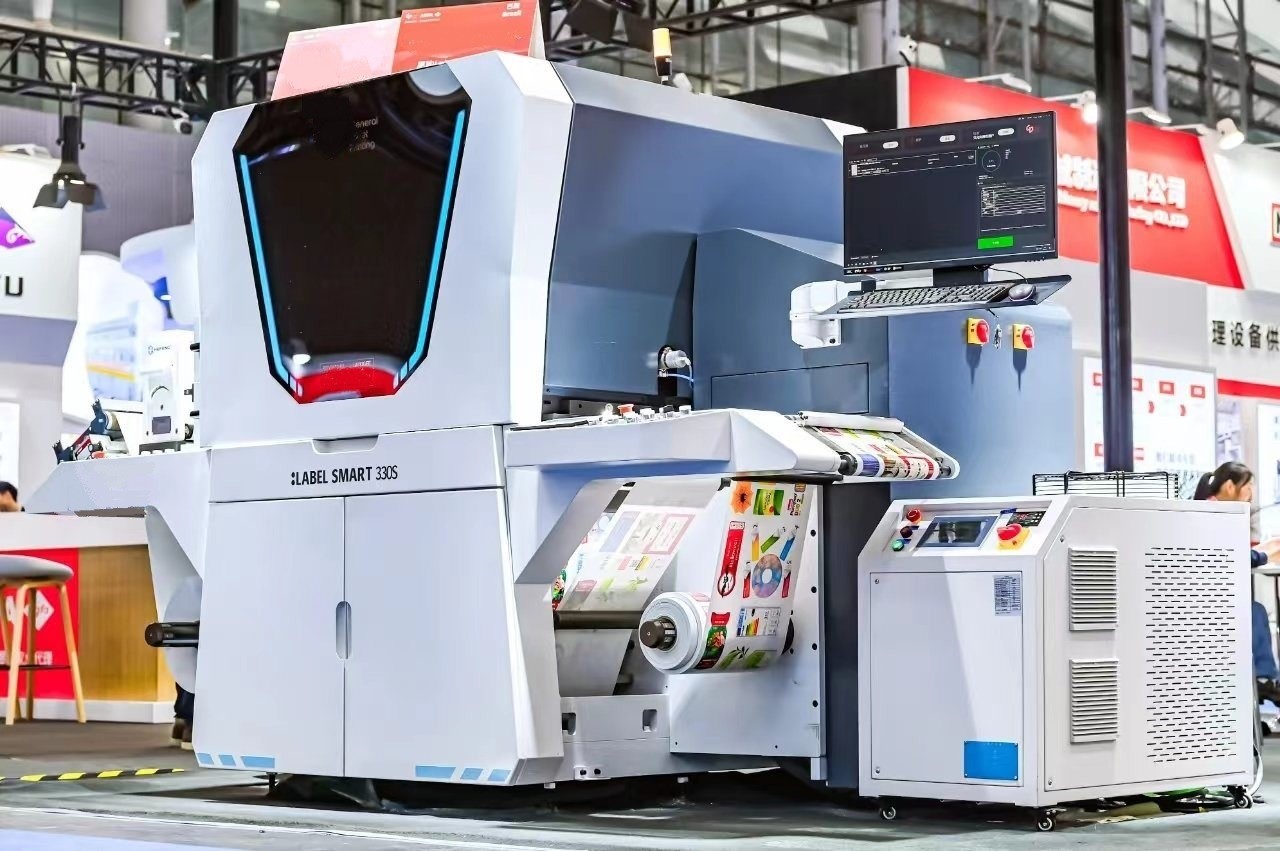

Roll to Roll One-side UV Ink Digital Label Printer

 Roll To Roll One-Side UV Ink Digital Label Printer

º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º

 Specifictions

​

Model	Label Smart 108S		Label Smart 216S		Label Smart 330S
Techical Specification
Printing Technology	Piezoelectric Inkjet
Print Method	Roll to Roll, One - Side
Color Configuration	CMYK / W + CMYK / W + W + CMYK
Number Of Channels	6
Maximum Speed	50 m/min(600dpix600dpi); 25 m/min(600dpix1200dpi)
Resolution	600x600 dpi/ 600x1200 dpi
Ink Type	UV Ink
Curing Method	UV LED
Media
Media Width	80-330 mm		80-330 mm		110-330 mm
Maximum Print Width	108 mm		216 mm		324 mm
Media Thickness	50-400 μm
Media Type	PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc
Maximum Media Roll Diameter	600 mm
Power
Power Supply	380 V
Power	15 kw				30 kw
Compressed Air	> 6.5 MPa
Air Consumption	> 10 L/min
Environment
Operation Temperature	20-27 °C
Operation Humidity	40-70% RH
System Components
Skew Adjustment System	√
Dust Removal	√
Water Cooling System	√

​​​

​

 Features

Stable and high-speed printing unit
Imported high-precision industrial print head has higher fire ignition frequency and service life, resolution up to 600 X 1200 dpi, guaranteed excellent print quality.The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration, and makes the printed matter more aesthetic.

AGFA APOGEE workflow software system

The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability while making equipment operation easier, good for production.


Automatic winding and unwinding system
Effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.High linkage winding system, fully automated, to maximize automated production.


Unique print head control system
Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.


Unique multiple curing technology
LED cold light curing unit, energy saving and high efficiency. Each color group is equipped with a curing module, so the ink droplets can be quickly and accurately attached to different media without spreading. After the four-color printing is completed, the ink is completely cured by the main curing system, and the colors are lifelike.

º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º

 Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º

 Certificates

º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º

 FAQ

 Q1: Why should I choose UV ink ?

A: Benefit from the excellent ink formula, our UV eco-friendly ink can still achieve excellent stability while ensuring environmental protection. Broad color gamut UV ink, vivid colors, with color management system, can accurately restore the Pantone database colors.

 Q2: Which printing consumables can be applied ?

A: Feeding unit for inkjet digital printing system, with high flexibility, suitable for all materials for 80-330mm wide label printing: film (PET, BOPP, PE, BOPA), label stock (PE label), pre-pressed materials (PET, ALU, PE) , paper, among others.

 Q3: Any other good features ?

A: Our LABEL SMART series printer have stable and high-speed printing unit, automatic winding and unwinding system, unique print head control system and multiple curing technology. These features make LABEL SMART easier to operate and makes the printed matter more aesthetic. Hope you like it.
