Environment: Recommended temperature: 18-30ºC Humidity: 10-80%
2. Major Highlights of EcooGraphix CTP machine
1) Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction
Up to 250lpi screening ,2400 dpi or 1200dpi optional
2) Fully qualified: for any thermal non-process plate and process plates.
3) Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.
4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany.
5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
6) Long warranty of the machine: 3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.
7) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.
8) Proven Worldwide market leader: (Some highlights installations)
Over 6000 units installed worldwide over past 10 years
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics
Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc.
2. Other similar Models

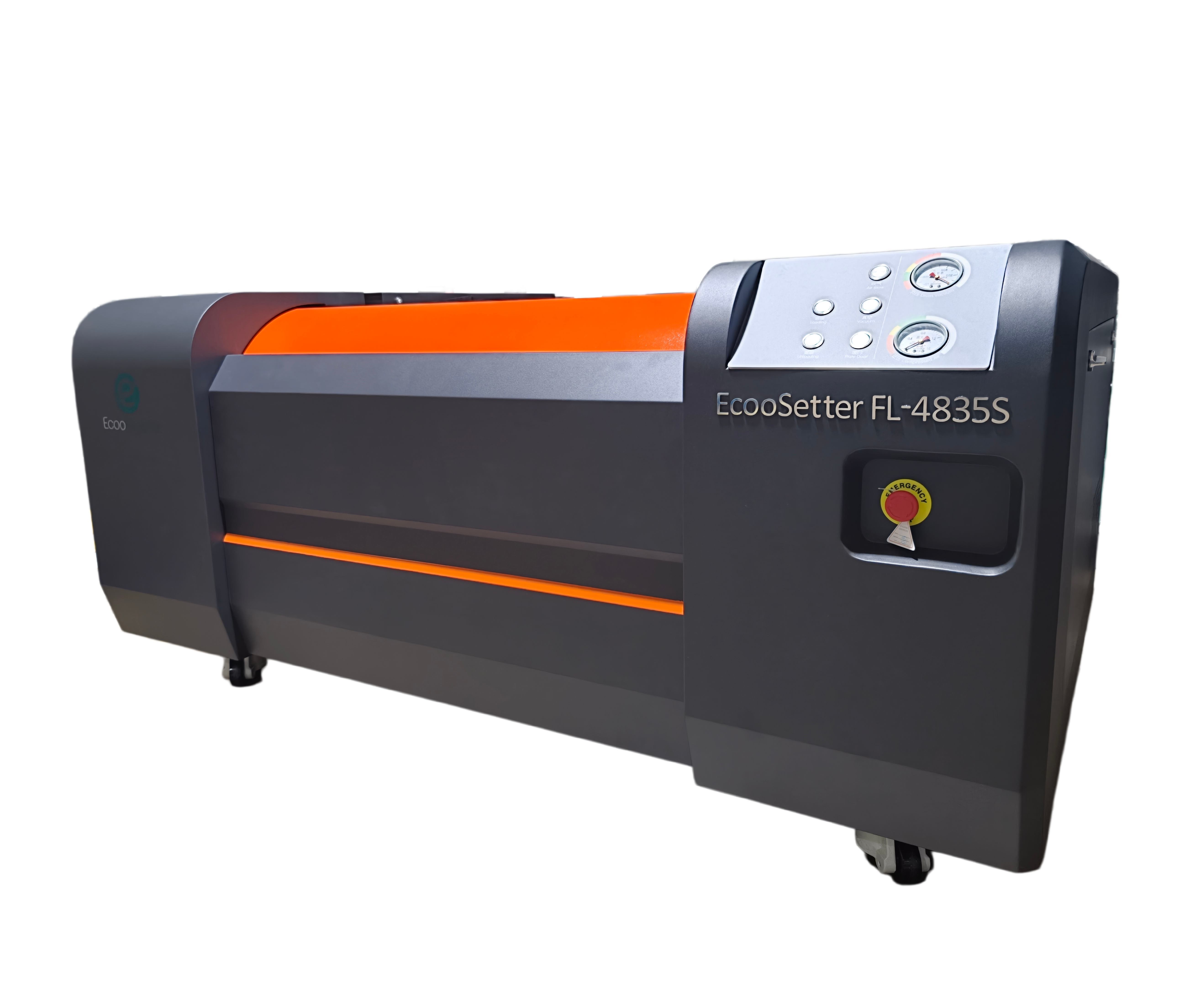

|EcooSetter Flexo CTP Series Technical Specifications|
|Output Speed||1.25 m2/h||2.5 m2/h||1.25 m2 /h||2.5 m2 /h||4.3m2 /h||8.5 m2/h|
|Max.Breadth||26'' x 17''/
|Plate Type||Digital relief flexo plate(water-wash) ,digital flexo plate(solvent-wash),steel based digital plate(water/alcohol washable) are applied for EM/SM series|
|Plate Thickness||0.7mm - 1.7mm||0.7mm-2.84mm||0.9mm-3.94mm|
|Application||Label and trademark||Paper box and soft packaging|
|Resolutions||4000dpi , optional:3000dpi or 2400dpi|
|Plate Loading||Manual load and unload|
|Focus Adjust||Dynamic autofocus|
|Power||Single phase: 220V/50HZ, 60HZ/3KW||Single phase: 200V/50HZ, 60HZ/4.5KW|
|Environment||Recommended temperature: 18-30ºC Hu m i dity: 10%- 80%|
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
Lifetime Warranty for the CTP machine combined with the plates.
4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will available for technical support for 7x24 hours.
