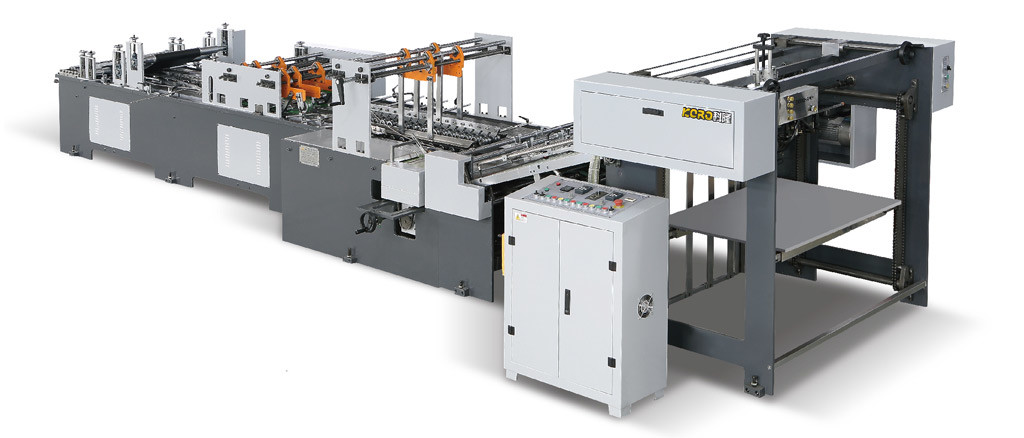

Semi Automatic Takeout Sheet Paper Bag Forming Machine

Semi Automatic Takeout Sheet Paper Bag Forming Machine
Features Gallery Product Description Request A Quote
Paper Sheet Length: 520-1020mm /20.47in -40.15in
Paper Sheet Width: 300-600mm / 11.81in- 23.62in
Paper Thickness: 180~350 G
Paper Bag Width: 180-430mm
Glue Type: Hot Melt Adhesive
 Power Supply: 6.5KW
Packing: 7500×2200×1500 Mm
Gross Weight: 2200KGS
Warranty: 3years
Speed: 70-100 Pcs Per Min
High Light:

40pcs/Min Paper Cup Forming Machine


3OZ Paper Cup Forming Machine


160gsm Paper Cup Forming Machine

Basic Infomation
Place of Origin: CHINA
Certification: CE
Model Number: KL1100A
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30DAYS
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Product Description

                          Semi Automatic Takeout Sheet Paper Bag Forming Machine


   EcooGraphix is a professional supplier of eco-friendly paper processing machines and paper products. Following the enterprise development mission of “Create Value for Customers”.

   At the beginning of 1990s, the production of snack boxes (such as ice cream paper cone, hamburger box, etc.) mainly relied on manual operation or machines imported from Europe and North America. The poor sanitary condition, low product consistency, low efficiency, expensive imported machines, long delivery period and high service cost all restricted the development of domestic paper production enterprises. However, Chinese national industries still developed rapidly and Dayuan was resolute to enter this completely new industry.

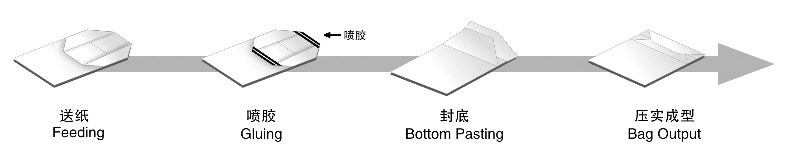

Work principle

ECOO-KL1100A is the semi-automatic paper bag forming machine with bag tube forming and bottom gluing functions.

With the raw material of sheet-fed paper after the treatment of indentation, the automatic
positioning is transported paper by paper transport to front guide and side guide, and double-paper
and slanting ones are automatic tested, which is transported to the roll rubber, Then,the procedure
like gluing roll etc, are conducted. Finally,the molding paper roll is made.



Paper Bag Tube Forming Machine
Model Ecoo KL-1100A
Paper sheet length 520-1020mm /20.47in -40.15in
Paper sheet width 300-600mm / 11.81in- 23.62in
Paper Weight 180~350 g
Working Speed 70-100 pcs/min.
Paper bag width 180-430mm
Paper bag bottom /gusset

Project 1:(no tube formation) 70-150mm

Project 2:(with tube formation) 70~120 mm

Glue Type Hot melt adhesive
Total Power 6.5KW
Machine weight 2t
Machine size 7500×2200×1500 mm
Bottom Gluing Machine with Reinforced card
Model Ecoo 350C
Bag width 180-350mm
Paper Bag Bottom/Gusset 70-150mm
Paper Tube Length 290-600mm
Paper Weight

Kraft paper:180-250g

White paperboard+ Laminated PP:180-250g

Grey paperboard+ Laminated PP:180-250g

size of paper card:Min.size 64*174mm ; Max.size144*334mm

paper card weight:200-300gsm

Working Speed 50-80 pcs/min.
Glue Type water glue
Total Power 4KW
Machine weight 3t
Machine size 8000*1200*1500mm


Semi Automatic Takeout Sheet Paper Bag Forming Machine 0






Semi Automatic Takeout Sheet Paper Bag Forming Machine 1




Semi Automatic Takeout Sheet Paper Bag Forming Machine 2

Semi Automatic Takeout Sheet Paper Bag Forming Machine 3


Semi Automatic Takeout Sheet Paper Bag Forming Machine 4

Semi Automatic Takeout Sheet Paper Bag Forming Machine 5



1.Are you a manufacturer?
Yes,We have been in making paper cup machine over 15 years.

2.what about the payment term ?
Mostly 30%T/T in advanced,the rest need paid before shipping.

3.What information should i let you know if i want to get a quotation?

--What's the detailed size (paper thickness ,paper bag size,bottom size)

--What's the paper thickness

6.How can we ensure the product is safe for food package
(1) the virgin wooden pulp based paper with SGS test report by European and FDA regular with FSC certification

(2) water base ink , flexo. Printing way , no smell

(3) virgin LDPE inported from Korea, Japan ,and Qatar … with SGS test report

(4) factory workshop is docerated by GMP Standard request .

7.what's your advantages ?
--15 years experience:We have been in making paper bag machines for 15 years.

--Customers all over the world

--Certificate: CE certificate,ISO 9001

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
