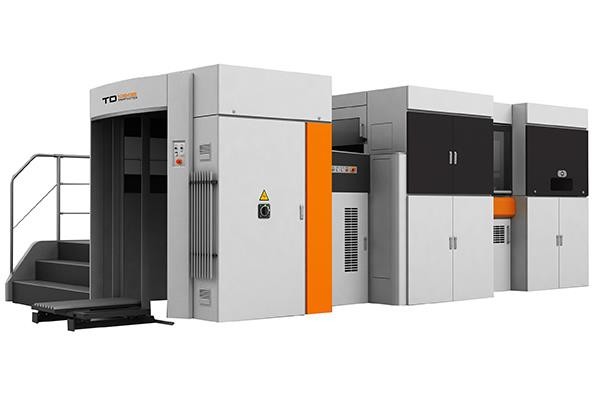

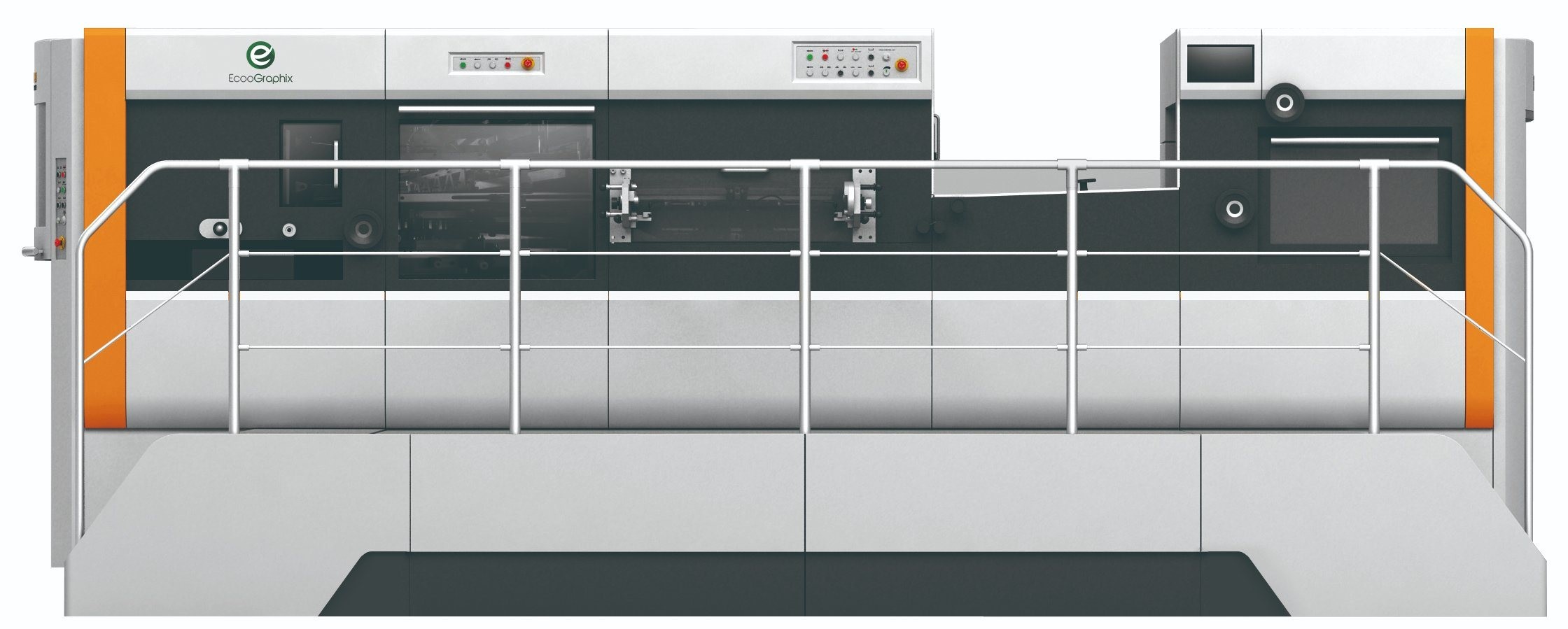

1060x740mm Automatic Die Cutting Machine With Stripping TD1060S
► Brief Introduction
TD1060S automatic die cutter mostly use to cut carton and thin corrugated. This model embodies people-oriented, modular design and manufacturing concepts and the use of computer-aided design and manufacturing technology products. Adopts PLC and colorful touch screen to check the running condition and display errors.
► Details
♡ Taiwan OEM Gearbox
Taiwan OEM Gearbox, ensures minimum space between the input and output of drive from gearbox in order to maintain gripper accuracy.
♤ Taiwan OEM Feeder
Taiwan OEM Feeder, assures stable and smooth paperfeeding, suitable for stocks from thin paper to 4mm corrugated board.
♢ Stripping Unit
Smart stripping design leads to quick make readies and job change-over, together with accurate stripping even with complex jobs.
♧ Taiwan OEM Side Lay
Both pull and push functions integrated in one side lay, easy and convenient setting is obtainable, side lay to apply to the stable positioning of all kinds of paper running at high speed.
► Specification
Model
ECOO-TD1060S
Maximum sheet(mm)
1060x740
Minimum sheet size(mm)
400x360
Max. Die cutting size(mm)
1040x730
Height of cutting rules(mm)
23.8
Maximum pressure(N)
300x104
Inside chase size(mm)
1120x760
Stock range
Cardboard 90-2000g/m² (E, B flute)
Min. gripper margin(mm)
4
Maximum speed(s/h)
7500
The thickness of stamping plate(mm)
5
Feeding pile height(mm)
1150
Delivery pile height(mm)
1100
Rated power(kw)
23
Air supply
0.8-1.0MPa, ≥0.6m3/min
Overail dimension(mm)
6000x4200x2400
Weight of machine(kg)
16000
| Model | ECOO-TD1060S |
| Maximum sheet(mm) | 1060x740 |
| Minimum sheet size(mm) | 400x360 |
| Max. Die cutting size(mm) | 1040x730 |
| Height of cutting rules(mm) | 23.8 |
| Maximum pressure(N) | 300x104 |
| Inside chase size(mm) | 1120x760 |
| Stock range | Cardboard 90-2000g/m² (E, B flute) |
| Min. gripper margin(mm) | 4 |
| Maximum speed(s/h) | 7500 |
| The thickness of stamping plate(mm) | 5 |
| Feeding pile height(mm) | 1150 |
| Delivery pile height(mm) | 1100 |
| Rated power(kw) | 23 |
| Air supply | 0.8-1.0MPa, ≥0.6m3/min |
| Overail dimension(mm) | 6000x4200x2400 |
| Weight of machine(kg) | 16000 |
► Application
Automatic die cutter also named automatic paper die cutting machine. This model is commonly used for wine package, cigarette package, cosmetic package, food package etc.
► Main Feature
• Selected inverter provides stageless vary speed control, equipped pneumatic clutch guarantees reliable machine start and brake.
• Operator friendly automatic non-stop delivery increases machines output extremely.
► Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
► Certificates
► FAQ
|
Q1: What are your main products ?
|
|
Q2: Where is your factory ?
|
|
Q3: Is there any certification for your CTP Processor ?
|
|
Q4: Can you also supply the Workflow and RIP ?
|
|
Q5: What about the installation and after-sales technician support ? A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
|
