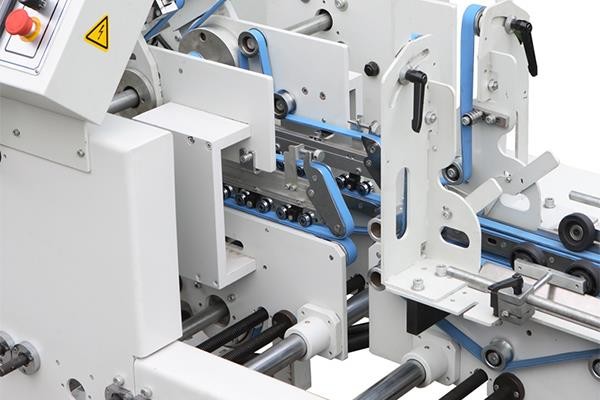

300m/min Automatic Carton Folding Gluing Machine 9kw

1 SET
MOQ
Negotiable
Price
300m/min Automatic Carton Folding Gluing Machine 9kw
Features Gallery Product Description Request A Quote
Features
Specifications
Materials: 180-650gsm Paperboard, E/N/F Corrugated Boxes
Max. Speed: 300m/min
Main Motor: 9kw. 380V
Weight Of Machine: 4000KG
Applied Type: Side Pasting, Double Side, Lock Bottom, 4&6 Corners Boxes
Overall Dimension: 13800 X 1270 X 1400mm
High Light:

Carton Folding Gluing Machine

,

300m/Min Carton Folding Gluing Machine

,

Side Pasting Carton Folding Gluing Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: LG 800
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 25 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description



 300m/min High Quality Automatic Carton Folding Gluing Machine









 ✿ Introductions



Automatic carton folding gluing machine(LG800) is a very stable high-volume machine that can bring more profits to customers.


Automatic carton folding gluing machine LG800 has a 4/6 corner function. Each set is controlled by an independent motor. It uses ESC, PLC, imported electronic components, and three-board tracking mode equipment. The aluminum plates are all equipped with a chute structure for easy addition of spare parts. Designed for a wide range of 4/6 angle cardboard or corrugated packaging, it is designed to meet a wide range of automated packaging requirements.









 ✿ Details

Whole Machine:

- 1 electric box with electrical elements and PLC control system
- 1 10" touch screen to choose and adjust functions, show running information and set data
- 1 pneuamtic kicking counter synchronizes with machine speed and with adjustable length
- 2 inverter controlled vary speed
- 2 stop unit when feeding disturbed
- 1 remote control unit


Feeding Device
- max feeding 800mm
- max feeding pile: 300mm
- 8 piece 25mm wide feeding belt
- inside mechanical shaker
- 1 non-stage speed adjusting unit
- 1 electromagnetic clutch
- 2 front lay
- 2 press guide wheel and 2 press guide lever
- 2 side guide

Pre-folding Device
- 3 lower conveyer
- 4 upper conveyer
- 1 side pre-folding belt
- 1 inside pre-folding unit
- 1 pre-folding support with angel adjustment
- 180 degree on operator side and max 135 degree on drive side


Mechanical Gluing Device
- 2 gluing wheels for upper surface (only available on LG series without 4/6 corner)
- 2 lower gluing unit (drive side and operation side)

Folding And Gluing Device
- 2 lower conveyer
- 2 upper press belt
- 2 folding belt
- 2 pressing belt
- Multi-sized lock bottom boxes hooks








 ✿ Specifications



300m/min Automatic Carton Folding Gluing Machine 9kw 0









 ✿ Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



300m/min Automatic Carton Folding Gluing Machine 9kw 1



300m/min Automatic Carton Folding Gluing Machine 9kw 2

300m/min Automatic Carton Folding Gluing Machine 9kw 3



300m/min Automatic Carton Folding Gluing Machine 9kw 4



300m/min Automatic Carton Folding Gluing Machine 9kw 5









 ✿ Installation Cases



300m/min Automatic Carton Folding Gluing Machine 9kw 6



300m/min Automatic Carton Folding Gluing Machine 9kw 7



300m/min Automatic Carton Folding Gluing Machine 9kw 8



300m/min Automatic Carton Folding Gluing Machine 9kw 9









 ✿ FAQ






 Q1: What are your main products ?


A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.







 Q2: Where is your factory ?


A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!







 Q3: Is there any certification for your CTP Processor ?


A: Yes, all our machines have been certified by SGS and CE.







 Q4: Can you also supply the Workflow and RIP ?


A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.







 Q5: What about the installation and after-sales technician support ?


A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.



These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
