4 Cassettes 400x300mm RS485 75PPH CTP Plate Machine

1 SET
MOQ
Negotiable
Price
4 Cassettes 400x300mm RS485 75PPH CTP Plate Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: CTP Plate Machine
Plate Feeding Speed: ≤ 75 Plates/hour
Plate Size: Max. 1,163 X 940mm, Min. 400 X 300mm
Plate Loading Quantity: 4 Cassette (100 Pieces Per Cassette)
Interface: RS 485
Plate Loading Way: Manually Stack Plate In Cassette Or On Loading Platform
Air Supply: > 0.65Mpa
High Light:

75PPH CTP Plate Machine

,

RS485 CTP Plate Machine

,

400x300mm CTP Plate Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: MCU800
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 25 Days
Payment Terms: L/C, T/T
Supply Ability: 10,000 Sets/Year
Product Description



 75 PPH Prepress Multi Cassette Autoloader For Online CTP Machine











 ✈ Specification



Model

MCU800(multi)


Cassette Type

Multi cassette(4 cassettes)


Plate Feeding Speed

≤ 75 plates/hour


Plate Size

Max. 1,163 x 940mm, Min. 400 x 300mm


Plate Thickness

0.15mm-0.40mm


Interface

RS 485


Plate Loading Way

Manually stack plate in cassette or on loading platform


Plate Loading Quantity

4 cassette (100 pieces per cassette)


Net Weight

560KG


Device Size

1,683 x 1,460 x 1,280mm (WxDxH)


Air Supply

> 0.65Mpa


Vacuum Suction (Plate)

-0.50Mpa


Vacuum Suction (Paper)

-0.40/ -0.30MPa (different paper)


Power Supply

Single phase: 200V; Max. power(peak value): 1,100W


Environment

Operating temperature range: 15-30℃, Recommended temperature: 21-25℃, Humidity: < 70%



ECOO Cassette Autoloader Technical Specification
Model MCU800(multi)
Cassette Type Multi cassette(4 cassettes)
Plate Feeding Speed ≤ 75 plates/hour
Plate Size Max. 1,163 x 940mm, Min. 400 x 300mm
Plate Thickness 0.15mm-0.40mm
Interface RS 485
Plate Loading Way Manually stack plate in cassette or on loading platform
Plate Loading Quantity 4 cassette (100 pieces per cassette)
Net Weight 560KG
Device Size 1,683 x 1,460 x 1,280mm (WxDxH)
Air Supply > 0.65Mpa
Vacuum Suction (Plate) -0.50Mpa
Vacuum Suction (Paper) -0.40/ -0.30MPa (different paper)
Power Supply Single phase: 200V; Max. power(peak value): 1,100W
Environment

Operating temperature range: 15-30℃,

Recommended temperature: 21-25℃, Humidity: < 70%

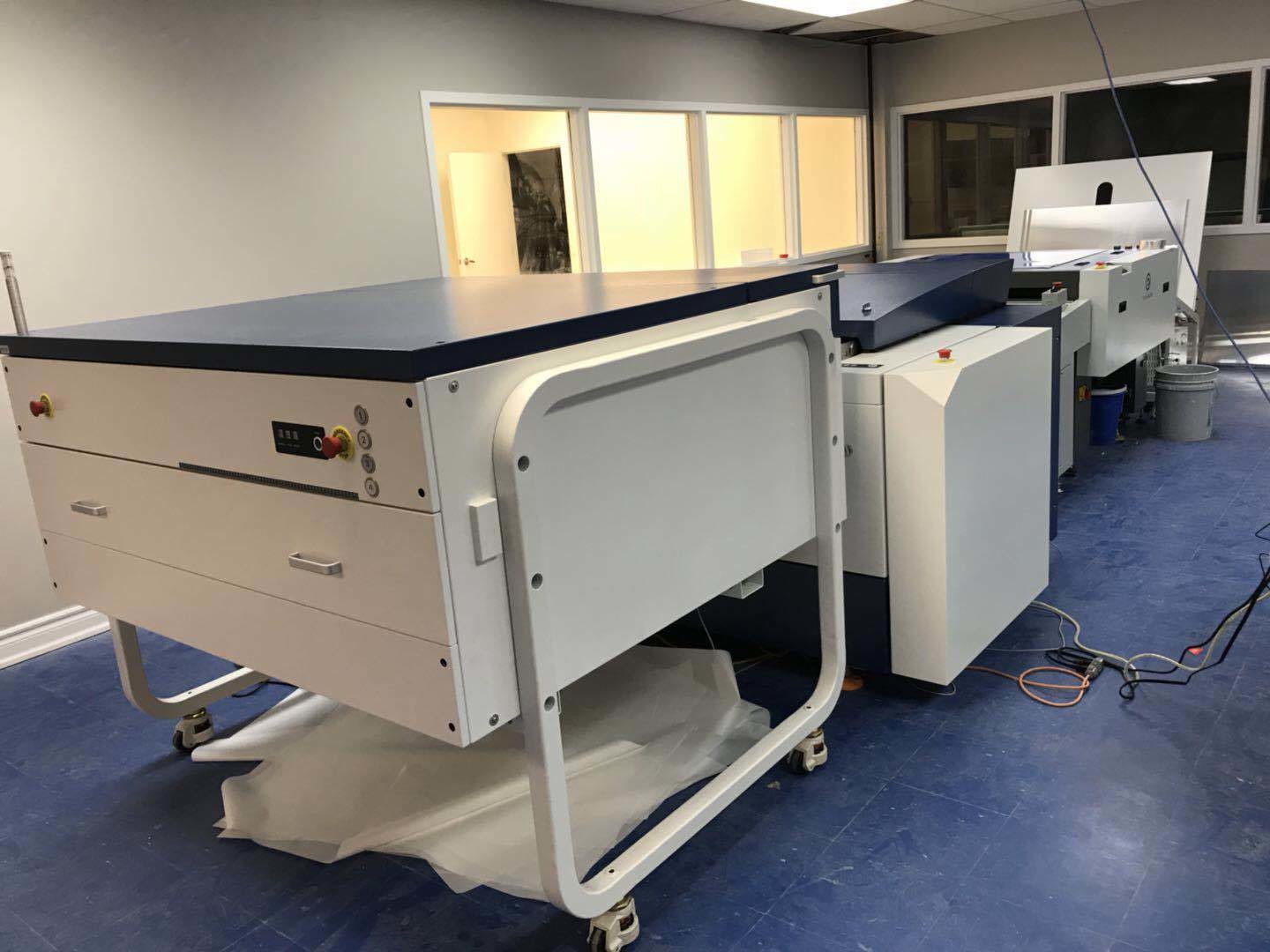

 ✈ MCU800 Pictures



4 Cassettes 400x300mm RS485 75PPH CTP Plate Machine 0



4 Cassettes 400x300mm RS485 75PPH CTP Plate Machine 1









 ✈ Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



4 Cassettes 400x300mm RS485 75PPH CTP Plate Machine 2



4 Cassettes 400x300mm RS485 75PPH CTP Plate Machine 3



4 Cassettes 400x300mm RS485 75PPH CTP Plate Machine 4

4 Cassettes 400x300mm RS485 75PPH CTP Plate Machine 5









 ✈ Certificates



4 Cassettes 400x300mm RS485 75PPH CTP Plate Machine 6



4 Cassettes 400x300mm RS485 75PPH CTP Plate Machine 7









 ✈ FAQ







 Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.







 Q2: Where is your factory ?
A: Our CTP machine factory is in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!







 Q3: Is there any certification for your CTP machine ?
A: Yes, all our CTP machines have been certified by SGS and CE.







 Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.






 Q5: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
