128Channel 27PPH High Sensitive UV Plate Thermal CTP Machine

128Channel 27PPH High Sensitive UV Plate Thermal CTP Machine
Features Gallery Product Description Request A Quote
Imaging System: 128-channel
Throughput: 1470mm X 1180mm/ 2400dpi: 27 Plates/hour
Repeatability: ±5μm(Continuous Exposing For 4 Times Or Above On The Same Plate With A Temperature Of 23℃ And Humidity Of 60%)
Power Supply: Single Phase: 220AC-240AC, Power Consumption: 5.5KW
Plate Size: Max. 1470mm X 1180mm; Min. 300mm X 400mm
Environment: Recommended: 21-25℃, Max. 15-30℃, Humidity: 40-70%
Resolutions: 2400dpi
Weight: 1400kg
High Light:

128Channel Thermal CTP Machine


27PPH Thermal CTP Machine


High Sensitive Thermal CTP Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSetter VLF UV-1600SX
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 20 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description


 128Channel 27PPH VLF CTCP Offset Machine For UV Plate






EcooGraphix CTP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTCP plate directly through the UV-CTP machine and save the film and labor.

By the EcooGraphix CTCP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.

EcooGraphix VLF(Very Large Format) UV-CTP Machine UV1600SX can be used for B0 paper size Posters or Wall-charts, Large Books, Catalogue, Yellow pages, Packaging processing and Plate-making center etc.




Maximum Plate Size: 1470mm x 1180mm.

Features: Less manpower, high stability and perfect output quality.

UV plate and thermal plate are available for you to lower production cost.






ECOO VLF(Very Large Format) UV-1600SX CTP Specifications
Model UV-1600SX
Exposing Method External Drum
Imaging System 128-channel
Discrete 400-410nm laser diode
Output Speed 27 plates/hour
  1470mm x 1180mm/ 2400dpi
Plate Sizes Max. 1470mm x 1180mm;
Min. 300mm x 400mm
Exposing Size Max. 1454mm x 1164mm
Media Type Positive UV-CTP Plate
Plate Thickness
0.15-0.30mm or 0.25-0.40mm (Alternative)
Resolution 2400dpi

±5μm(Continuous exposing for 4 times or above on the same plate with

a temperature of 23℃ and humidity of 60%)

Interface USB 2.0 or USB 3.0(USB 2.0 is recommended)
Plate Loading Semi automatic(alternative autoloader system)
Net Weight 1400 KG
Machine Size
2355 x 1910 x 1217
Power Supply
Single-phase: 220AC-240AC, Power Consumption: 5.5KW
Environment Recommended temprature: 21-25℃, Max. 15-30℃, Humidity: 40-70%





  Installations In Other Countries


UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.

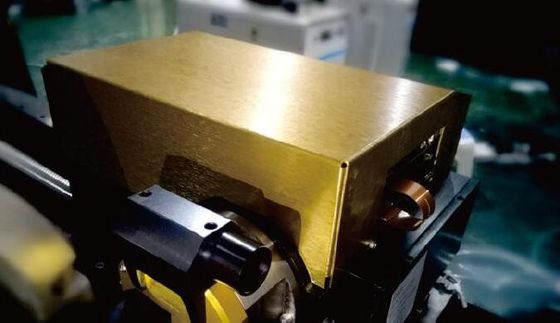

128Channel 27PPH High Sensitive UV Plate Thermal CTP Machine 0





  Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.


128Channel 27PPH High Sensitive UV Plate Thermal CTP Machine 1


128Channel 27PPH High Sensitive UV Plate Thermal CTP Machine 2


128Channel 27PPH High Sensitive UV Plate Thermal CTP Machine 3


128Channel 27PPH High Sensitive UV Plate Thermal CTP Machine 4







128Channel 27PPH High Sensitive UV Plate Thermal CTP Machine 5


128Channel 27PPH High Sensitive UV Plate Thermal CTP Machine 6






 ➷  FAQ



 Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on. You can get the equipment and consumables all in one and no worry about the after-sales service from our company.


 Q2: Where is your factory ?

A: Our CTP machine factory is in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!


 Q3: Is there any certification for your CTP machine ?

A: Yes, all our CTP machines have been certified by SGS and CE.


 Q4: Can you also supply the Workflow and RIP ?

A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.



 Q5: What about the Installation and After-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
