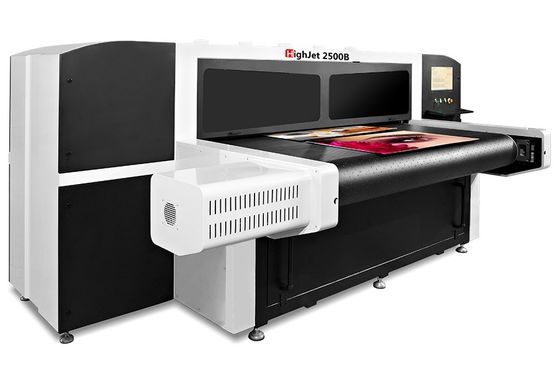

Automatic High Speed Digital Inkjet Press Printing Machine-- ECOO 2500B
Advantages:
1.Multifunctional upgrade, assured application of medium productivity
2.Grayscale printing, the resolution can reach 600*2400dpi
3.Realize variable data, suitable for high-quality coated paper printing
4.No pre-coating, flexible and convenient, safe and eco-friendly.
Technical data
| Model | HighJet2500B |
| Applications | Kraft, Coated, Personalized Applications such as Display Shelf, UV Solutions ( PVC Expansion Sheet/Acrylic) etc. |
| Ink Type | Han FullColor Water-Based Ink |
| Print head | Industrial inkjet Kyocera print heads with piezo technology |
| Dryer | IR & Hot air |
| Ink Supply | Automatic |
| Print head Configuration | Standard: 8 printheads, double-row 4 colors (CMYK), maximum 8 printheads |
| Capacity | 1pass:600㎡/hr |
| 2pass:300㎡/hr | |
| Media | Max. Width:2500mm |
| Automatic loading length:2500mm | |
| Manual loading length:4000mm | |
| Manual loading length:1.5-15mm | |
| Loading & Receiving System | Loading:Auto,Receiving:Automatic |
| Software | 3rd party RIP Software |
| Input format | PDF, JPEG, TIFF,AI,CDR etc. |
| Site requirement (Min) | 6910 mm (W)*8730 mm (L)*2500 mm (H) |
| Power | 3Phase/380V, 100A, 50HZ, Total Power 50KW |
| Air Supply | Pressure: ≥ 6Kg/cm² ; Speed ≥ 34 liters/min |
| Environment | Relative humidity:40%-60%; Temperature: 15℃ -28℃ |
| Measurement | 4910 mm (W) x 5730 mm (L) x 1965 mm (H) (Take feeding direction as length) |
| Weight | 7500 Kg (Feeding section included) |
About ink
We offer ink workable for this machine as below for your option. Ink is not mandatory for machine purchase.
| Ink description | Our offer | Remarks |
| Water base dye ink | $22/kg | Price could be better if quantity goes up. |
| Water base Pigment ink | $35/kg | |
| UV ink | $55/kg | |
| White ink | $60/kg |
Certicate
FAQ
1.What are your main products ?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2.Where is your factory ?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.
3. What is your warranty?
One year for machine and printing head if use our ink. One year for machine only if do not use our ink.
4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
5. Can you also supply the software?
Yes, we offer copyrighted software.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
