Multi Functional A1 Format CTP Flexo Plate Making Machine

1SET
MOQ
Negotiable
Price
Multi Functional A1 Format CTP Flexo Plate Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: Digital Relief Flexo Plate(water-wash)
Max.Breadth: 47"×60"/1200mm×1524mm
Machine Condition: New
Plate Thickness: 0.9-3.94(mm)
Output Speed: 4.3m2/h
Resolution: 4000dpi , Optional:3000dpi Or 2400dpi
Laser Channels: 32CH
Warranty: 3years Or Lifetime
High Light:

flexo ctp plate machine

,

a1 format flexo ctp machine

,

A1 Format 16CH CTP Flexo Plate Making Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: CE,SGS
Model Number: FL1500E
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: about 20days
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Product Description
A1 Format Multi Functional Flexo CTP Machine for Digital Relief Printing FL1500
High Speed,Multi Function,High Effeciency

1. Specification
EcooSetter Flexo CTP FL-1500E
Laser Channel: 32-channel
Output Speed: 4.3sqm/h
Max. Breadth: 47"×60"/1200mm×1524mm
Plate Thickness: 0.9mm - 3.94mm
Laser Power: High power semiconductor laser diode
Plate Type: Digital relief flexo plate (water-wash), Digital flexo plate (water-wash), Digital flexo plate (Solvent-wash) Steel based digital plates (water/ alcohol washable) are applied for EM/ SM series
Application: Label and trademark
Resolutions: 4000dpi
Plate Loading: Manual load and unload
Interface: USB2.0
Focus adjust: Dynamic auto-focus
Device Size: 2,315×1,370×1,052
Net Weight: 1200Kg
Power: 220V/50Hz, 60Hz, mainframe 1.5KW + Vacuum 4.5KW

Environment: Recommended temperature: 18-30ºC Humidity: 10-80%





2. Major Highlights of EcooGraphixT-800 thermal CTP

1) Superior dot quality reproduction proven by worldwide market:

1%-99% dot reproduction

Up to 250lpi screening ,2400 dpi or 1200dpi optional



2) Fully qualified: for any thermal non-process plate and process plates.



3) Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.



4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany.



5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)



6) Long warranty of the machine: 3 years warranty (free replacement of all parts)

Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.



7) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.



8) Proven Worldwide market leader: (Some highlights installations)

Over 6000 units installed worldwide over past 10 years

USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.

Turkey: 35 units installed in Turkey by Esen Graphics

Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc.





3. Other similar Models

EcooSetter Flexo CTP Series Technical Specifications
Model EcooSetter EcooSetter EcooSetter EcooSetter EcooSetter EcooSetter
FL-600E FL-600S FL-800E FL-800S FL- 1500E FL-1500S
Laser Channel 16CH 32CH 16CH 32CH 32CH 64CH
Output Speed 1.25 m2/h 2.5 m2/h 1.25 m2 /h 2.5 m2 /h 4.3m2 /h 8.5 m2/h
Max.Breadth 26'' x 17''/
680mm x430mm
25"x30"/635mmx762mm 47"×60"/1200mm×1524mm
Min. Breadth 100mmx100mm
Plate Type Digital relief flexo plate(water-wash) ,digital flexo plate(solvent-wash),steel based digital plate(water/alcohol washable) are applied for EM/SM series
Plate Thickness 0.7mm - 1.7mm 0.7mm-2.84mm 0.9mm-3.94mm
Application Label and trademark Paper box and soft packaging
Resolutions 4000dpi , optional:3000dpi or 2400dpi
Plate Loading Manual load and unload
Interface USB2.0
Focus Adjust Dynamic autofocus
Laser Lifetime >10000h
Device Size
(WxDxH)mm
1087x770x1000 1,630×1,170×965 2,315×1,370×1,052
Net Weight 400KG 800KG 1200KG
Power Single phase: 220V/50HZ, 60HZ/3KW Single phase: 200V/50HZ, 60HZ/4.5KW
Environment Recommended temperature: 18-30ºC Hu m i dity: 10%- 80%

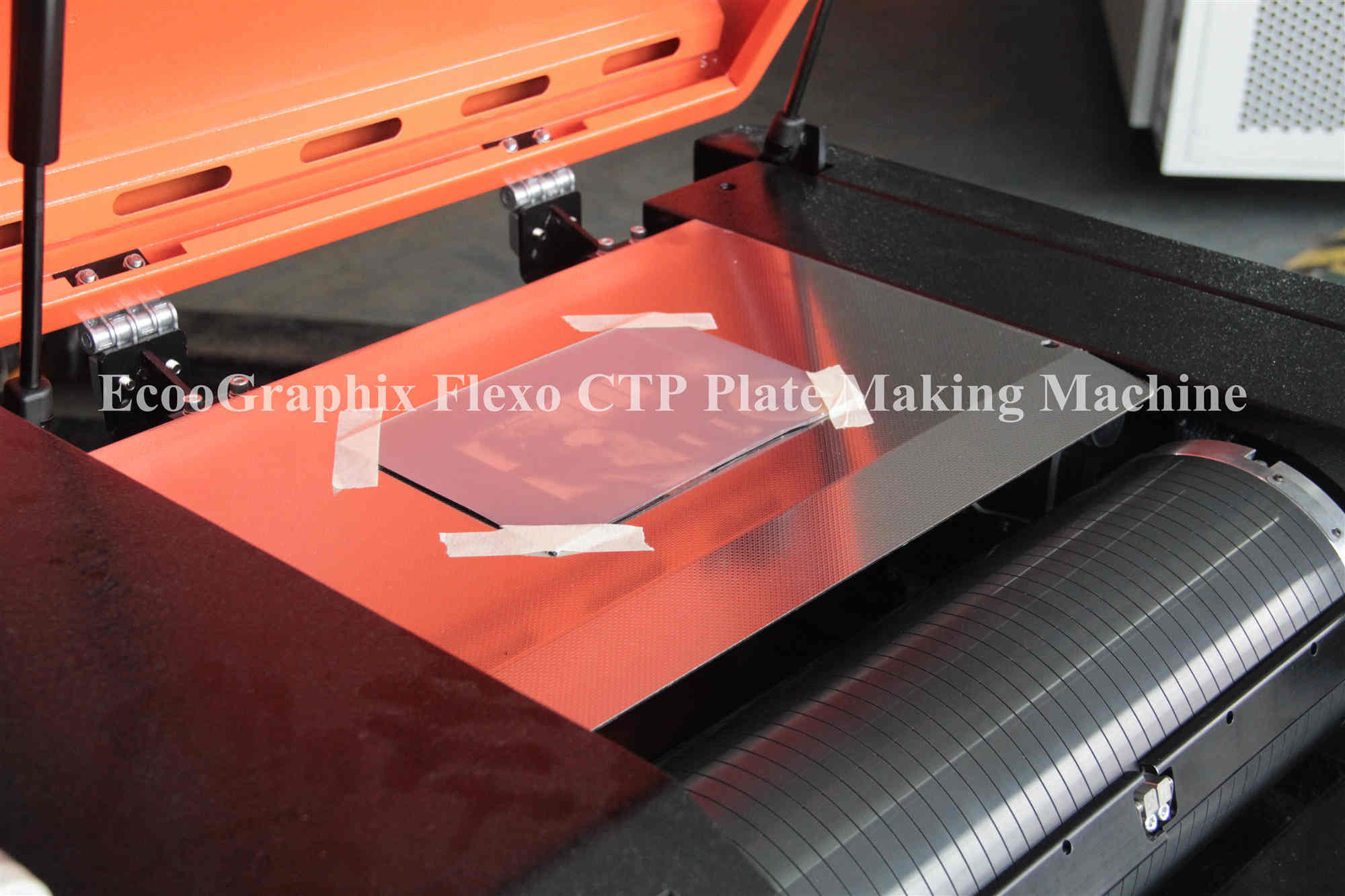

Multi Functional A1 Format CTP Flexo Plate Making Machine 0

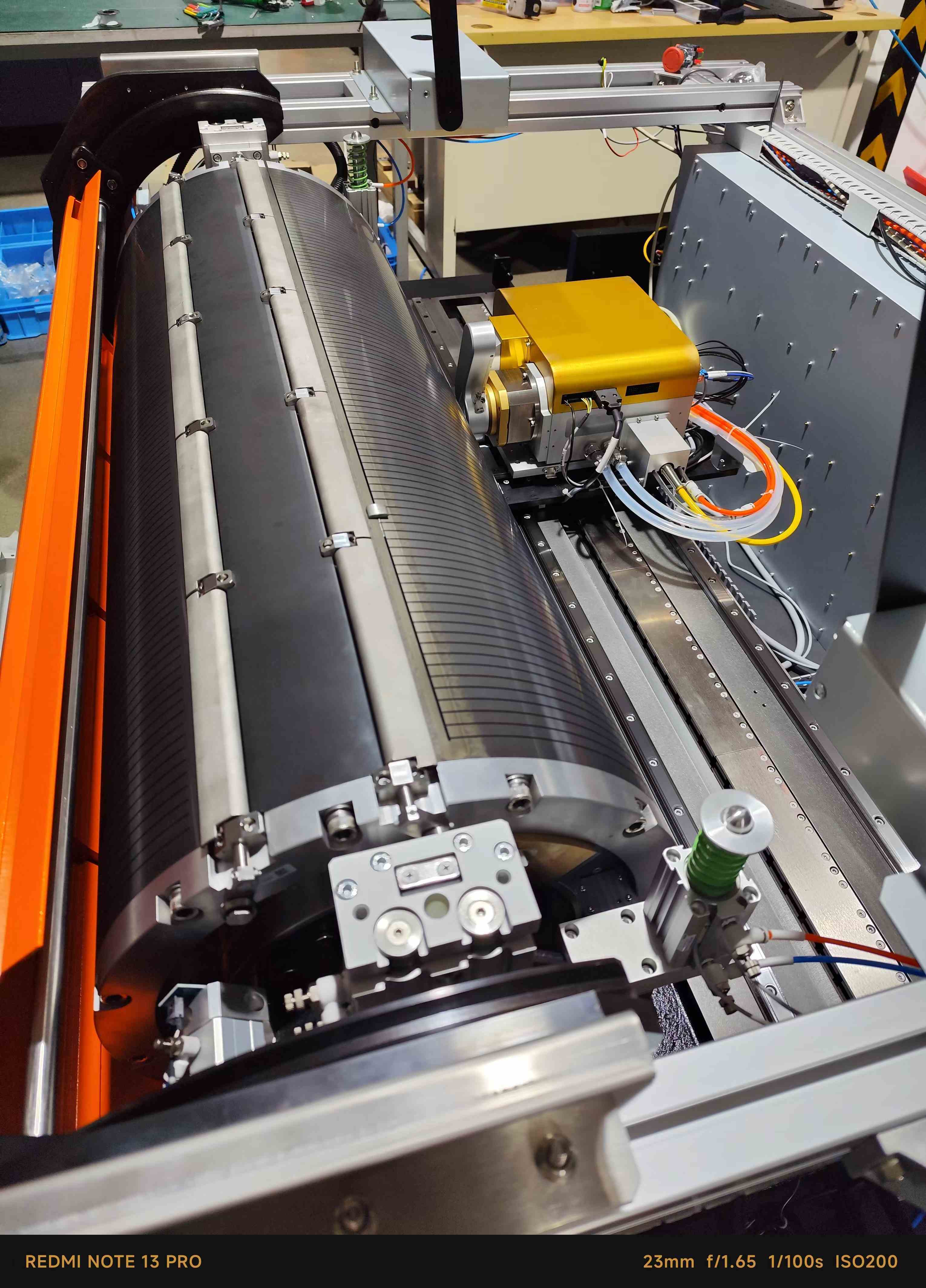

Multi Functional A1 Format CTP Flexo Plate Making Machine 1







Multi Functional A1 Format CTP Flexo Plate Making Machine 2

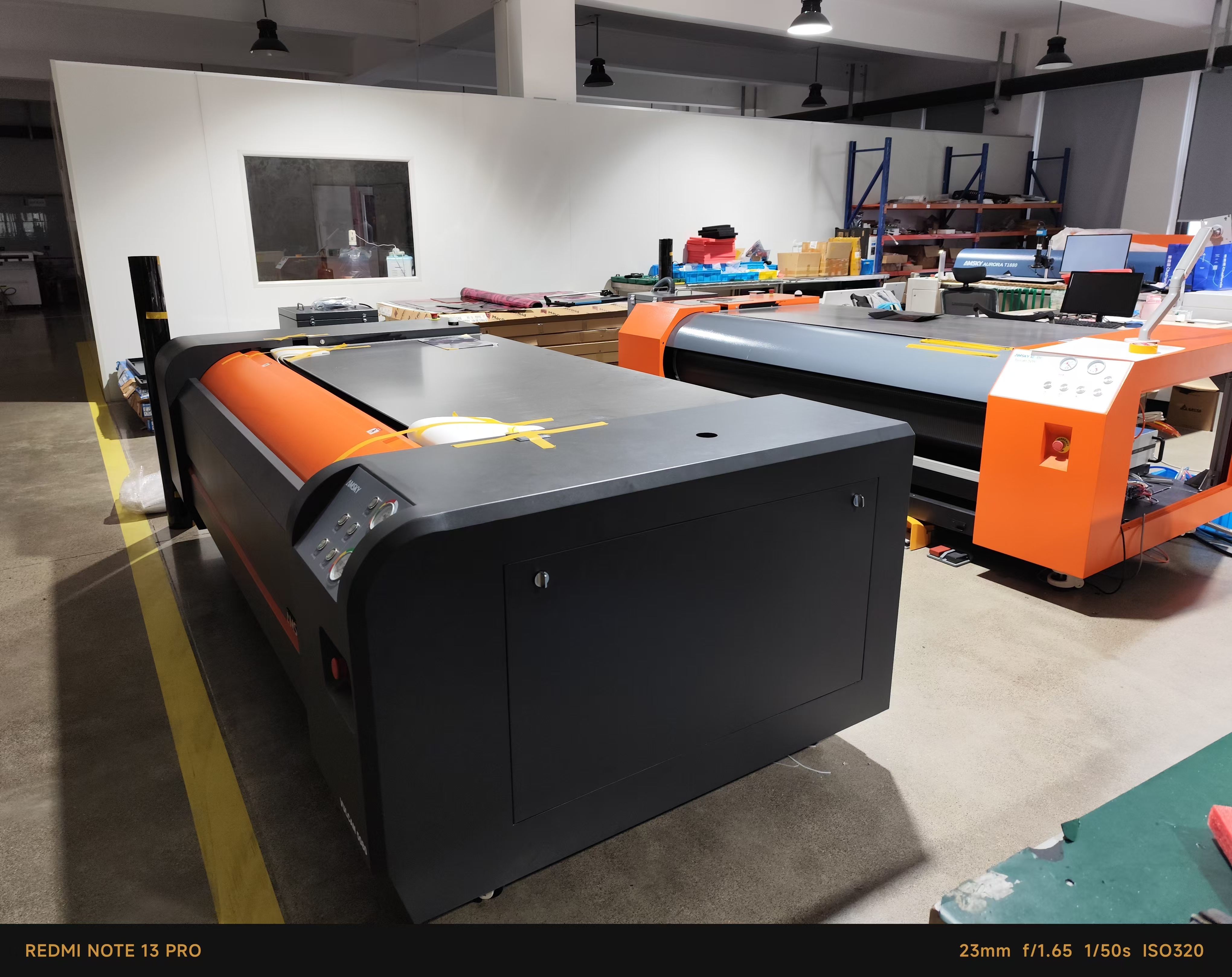

Our Factory

Multi Functional A1 Format CTP Flexo Plate Making Machine 3





FAQ:
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
 Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.

You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!


3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
Lifetime Warranty for the CTP machine combined with the plates.


4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.


5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.


6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will available for technical support for 7x24 hours.
